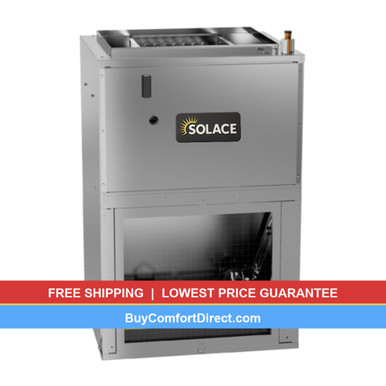

Solace 2.5 Ton Wall Mounted R-32 Air Handler - S-AWST30LU1310A
$1,184.00
$1,006.40
(You save $177.60)
brand: Solace
- SKU:
- S-AWST30LU1310A
- Shipping:
- Calculated at Checkout
Solace 2.5 Ton R-32 Air Handler - S-AWST30LU1310A
The Solace S-AWST30LU1310A is a high-efficiency multi-position air handler designed for use with R-32 refrigerant systems. Featuring an advanced Multi-Speed ECM blower motor, this unit delivers precise airflow control and reduced energy consumption. The multi-position cabinet design allows for flexible installation in upflow, downflow, or horizontal configurations. This air handler requires a compatible outdoor condensing unit (sold separately) to complete your heating and cooling system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-AWST30LU1310A |
| Product Type | Air Handler |
| Tonnage | 2.5 Tons |
| Blower Motor Type | Multi-Speed ECM |
| Motor Horsepower | N/A HP |
| Refrigerant Type | R-32 |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 26.4 A |
| Max Overcurrent Protection | 30.0 A |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ¾" |
| Cabinet Configuration | Multi-Position |
| Dimensions (H×W×D) | 36.0" × 24.0" × 19.875" |
| Shipping Weight | 109 lbs |
Comprehensive Warranty Protection
10
Year Parts Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
10-Year Limited Parts Warranty
