15 MF / 440 VA

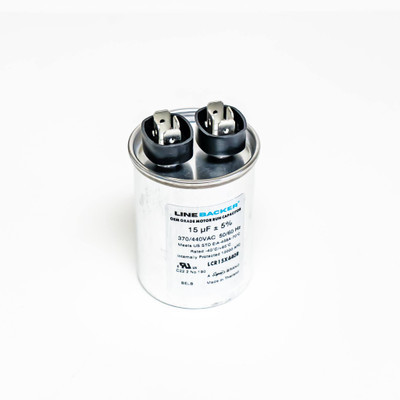

The Supco Linebacker LCR15X440R is a 15 microfarad, 370/440 VAC round motor run capacitor designed for HVAC motors and compressors. It features a round metal housing with quad blade quick connect terminals and operates from -40 to 85 degrees F.

Key Features

15 uF capacitance with +/- 5% tolerance for consistent motor performance
Round metal construction with dimensions of 1.77 in diameter x 2.36 in height
Dual voltage rating of 370/440 VAC for versatile system compatibility
UL and VDE certified with 10,000 AFC short circuit protection
Manufactured with thick polypropylene film dielectric for high temperature operation

Technical Specifications

Specification	Value
Capacitance	15 MFD (microfarad)
Voltage	370/440 VAC
Type	Motor run capacitor
Shape	Round
Application	HVAC motors, compressors, condenser fan motors, furnace blower motors

Ideal For

Air conditioning compressor replacement and service
Condenser fan motor applications
Furnace blower motor capacitor replacement
Refrigeration compressor motor circuits
