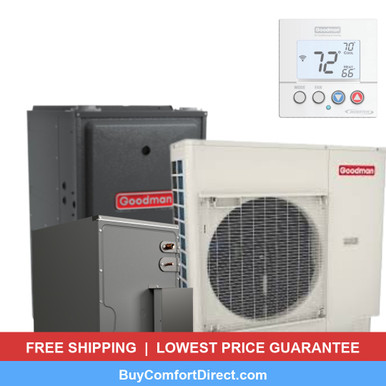

Goodman 4 Ton 17.5 SEER2 80,000 BTU 96% AFUE Dual Fuel System – Upflow – GZV7SA4810

Name: GOODMAN 4 Ton Variable Capacity 17.5 - GZV7SA4810 | Buy Comfort Direct
SKU: GZV7SA4810, CAPEA6030C3, GRVT960804CN, GTST-CW-WH-A
Price: 9158.00 USD
Availability: InStock

$9,158.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (7/8" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Propane (LP) Conversion KitOnly if the furnace will run on propane instead of natural gas

Your system total: $9,158.00

Product Details

Model Numbers: GZV7SA4810
CAPEA6030C3
GRVT960804CN
GTST-CW-WH-A
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:4 Ton Heat Pumps & Heat Pump Systems 4-Ton Dual Fuel Systems Furnace + Heat Pump Systems

Description

GOODMAN 4 Ton Variable Capacity 17.5 SEER2 R-32 96% AFUE Dual Fuel System with ComfortNet Smart Thermostat (Upflow Coil)

Experience ultimate year-round comfort with this complete Goodman 4-ton dual fuel HVAC system (Upflow Coil). This advanced matched system combines a high-efficiency variable capacity 17.5 SEER2 heat pump, a 96% AFUE variable speed gas furnace with variable speed ECM blower, and a precision-engineered upflow evaporator coil with factory-installed EEV. Featuring the GTST-CW-WH-A smart WiFi thermostat with ComfortNet communicating controls, this system offers seamless integration with voice assistants and mobile app control for ultimate convenience. The dual fuel configuration automatically switches between electric heat pump and gas furnace operation to optimize efficiency and comfort. Designed for exceptional year-round heating and cooling performance, this system delivers outstanding energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.

Technical Specifications

Heat Pump — GZV7SA4810 Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GZV7SA4810
Product Type	Heat Pump Condenser
Tonnage	4 Ton
Cooling Capacity	46,500 BTU/h
Heating Capacity (47°F)	47,500 BTU/h
SEER2 Rating	17.5
Refrigerant Type	R-32
Refrigerant Charge	118 oz
Compressor Type	Swing
Voltage/Phase/Frequency	208/230V-1-60Hz
Min Circuit Ampacity	37.5 A
Max Overcurrent Protection	40 A
Sound Level	72 dBA
Liquid Line Size	⅜”
Suction Line Size	1⅛”
Dimensions (W×D×H)	37″ × 12″ × 39.0″
Shipping Weight	198 lbs

Gas Furnace — GRVT960804CN Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GRVT960804CN
Product Type	Gas Furnace
BTU Input	80,000 BTU/h
BTU Output	77,600 BTU/h
AFUE	96%
Heating Stages	Two Stage
Blower Motor Type	Multi-Speed ECM
Configuration	Multi-Position
Voltage/Phase/Frequency	115/1/60V-1-60Hz
Min Circuit Ampacity	10.9 A
Max Overcurrent Protection	15.0 A
Dimensions (W×D×H)	21.0″ × 28.875″ × 34.5″
Shipping Weight	141 lbs

Evaporator Coil — CAPEA6030C3 Specifications

Specification	Value
Manufacturer	Goodman
Model Number	CAPEA6030C3
Product Type	Cased Upflow Evaporator Coil
Tonnage	5 Ton
Metering Device	Factory-Installed EEV
Configuration	Cased
Liquid Line Connection	⅜”
Suction Line Connection	1⅛”
Dimensions (W×D×H)	21.0″ × 21.0″ × 30.0″
Shipping Weight	75 lbs

Smart Thermostat — GTST-CW-WH-A Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GTST-CW-WH-A
Product Type	WiFi Smart Thermostat
Control Type	ComfortNet™ Communicating
Display	Full-Color Touchscreen
WiFi Connectivity	Built-in 2.4 GHz WiFi
Mobile App	iOS and Android Compatible
Voice Control	Amazon Alexa & Google Assistant
Scheduling	7-Day Programmable
Geofencing	Smartphone Location-Based Control
Smart Features	Weather Alerts, System Diagnostics, Energy Reports
Power	C-Wire Required (24VAC)
Temperature Range	40°F – 99°F
Humidity Display	Yes
Filter Reminders	Yes
Color	White

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

∞

Lifetime Heat Exchanger Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This 17.5 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Additional information

Weight	200.00 lbs
Dimensions	36.00 × 40.00 × 40.00 in
System Type	Dual Fuel System
Brand	Goodman
Tonnage	4 Ton
SEER2	17.5
AFUE	96%
Heating BTU	80,000 BTU
Refrigerant	R-32
Airflow Direction	Upflow
Blower Motor	Multi-Speed ECM
Voltage	115V
