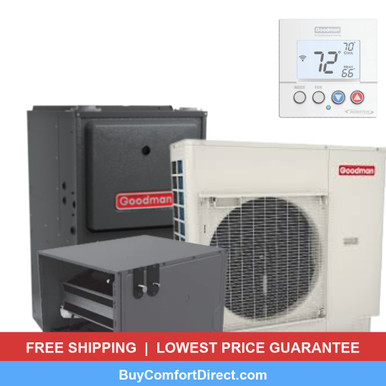

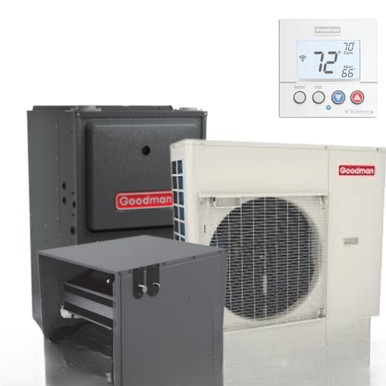

GOODMAN 5 Ton Variable Capacity 17.5 SEER2 R-32 96% AFUE Dual Fuel System with ComfortNet Smart Thermostat (Horizontal Coil)
brand: Goodman
- SKU:
- GZV7SA6010, CHPEA6030C3, GRVT961005CN, GTST-CW-WH-A
- Condition:
- New
- Shipping:
- Calculated at Checkout
GOODMAN 5 Ton Variable Capacity 17.5 SEER2 R-32 96% AFUE Dual Fuel System with ComfortNet Smart Thermostat (Horizontal Coil)
Experience ultimate year-round comfort with this complete Goodman 5-ton dual fuel HVAC system (Horizontal Coil). This advanced matched system combines a high-efficiency variable capacity 17.5 SEER2 heat pump, a 96% AFUE variable speed gas furnace with variable speed ECM blower, and a precision-engineered horizontal evaporator coil with factory-installed EEV. Featuring the GTST-CW-WH-A smart WiFi thermostat with ComfortNet communicating controls, this system offers seamless integration with voice assistants and mobile app control for ultimate convenience. The dual fuel configuration automatically switches between electric heat pump and gas furnace operation to optimize efficiency and comfort. Designed for exceptional year-round heating and cooling performance, this system delivers outstanding energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Heat Pump — GZV7SA6010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GZV7SA6010 |
| Product Type | Heat Pump Condenser |
| Tonnage | 5 Ton |
| Cooling Capacity | 52,000 BTU/h |
| Heating Capacity (47°F) | 54,000 BTU/h |
| SEER2 Rating | 17.5 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 162 oz |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 34.4 A |
| Max Overcurrent Protection | 40 A |
| Sound Level | 72 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1⅛" |
| Dimensions (W×D×H) | 37" × 12" × 35.3125" |
| Shipping Weight | 271 lbs |
Gas Furnace — GRVT961005CN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GRVT961005CN |
| Product Type | Gas Furnace |
| BTU Input | 100,000 BTU/h |
| BTU Output | 96,100 BTU/h |
| AFUE | 96% |
| Heating Stages | Two Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 115/1/60V-1-60Hz |
| Min Circuit Ampacity | 13.9 A |
| Max Overcurrent Protection | 20.0 A |
| Dimensions (W×D×H) | 21.0" × 28.875" × 34.5" |
| Shipping Weight | 143 lbs |
Evaporator Coil — CHPEA6030C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CHPEA6030C3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 5 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | 1⅛" |
| Dimensions (W×D×H) | 30.0" × 21.0" × 24.5" |
| Shipping Weight | 70 lbs |
Smart Thermostat — GTST-CW-WH-A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GTST-CW-WH-A |
| Product Type | WiFi Smart Thermostat |
| Control Type | ComfortNet™ Communicating |
| Display | Full-Color Touchscreen |
| WiFi Connectivity | Built-in 2.4 GHz WiFi |
| Mobile App | iOS and Android Compatible |
| Voice Control | Amazon Alexa & Google Assistant |
| Scheduling | 7-Day Programmable |
| Geofencing | Smartphone Location-Based Control |
| Smart Features | Weather Alerts, System Diagnostics, Energy Reports |
| Power | C-Wire Required (24VAC) |
| Temperature Range | 40°F - 99°F |
| Humidity Display | Yes |
| Filter Reminders | Yes |
| Color | White |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 17.5 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
