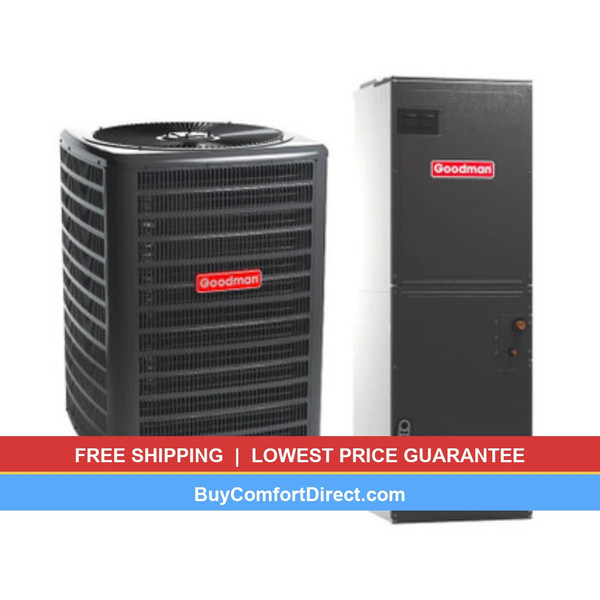

Goodman 1.5 Ton 13.4 SEER2 AC System with Air Handler – Multi-Position – GLXS3BN1810
$3,251.00
-
Product Details
- Model Numbers
- GLXS3BN1810
AMST24BU13 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 1.5 Ton 13.4 SEER2 AC System with Air Handler — Goodman 1.5 Ton 13.4 SEER2 AC System with Air Handler – Multi-Position – GLXS3BN1810 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 1.5 Ton 13.4 SEER2 AC System with Air Handler
GOODMAN 1.5 Ton 13.4 SEER2 R-32 Air Conditioning System with Multi-Position Air Handler
Experience reliable cooling comfort with this Goodman 1.5-ton R-32 13.4 SEER2 air conditioning system. This complete matched system combines a high-efficiency air conditioner outdoor unit with a versatile multi-position air handler. Designed for dependable cooling performance, this system delivers energy efficiency, quiet operation, and reliable comfort with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GLXS3BN1810 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS3BN1810 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 1.5 Ton |
| Cooling Capacity | 18,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 53 oz |
| Compressor Type | Rotary |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 10.9 A |
| Max Overcurrent Protection | 15 A |
| Sound Level | 73.0 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | ¾” |
| Dimensions (W×D×H) | 26″ × 26″ × 27.5″ |
| Shipping Weight | 114 lbs |
Air Handler — AMST24BU13 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | AMST24BU13 |
| Product Type | Multi-Position Air Handler |
| Tonnage | 2 Ton |
| Refrigerant Type | R-32 Compatible |
| Blower Motor Type | Multi-Speed ECM |
| Blower Speeds | Multi-Speed |
| Metering Device | TXV (Thermal Expansion Valve) |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 5.8/5.8 A |
| Max Overcurrent Protection | 15/15 A |
| Dimensions (W×D×H) | 16.3125″ × 17.5625″ × 45.0″ |
| Shipping Weight | 112 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant for Northern Regions
This complete R-32 13.4 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Goodman 1.5 Ton 13.4 SEER2 AC System with Air Handler: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 1.5 Ton Heat Pumps & Heat Pump Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 1.5 Ton 13.4 SEER2 AC System with Air Handler FAQ
Does the Goodman 1.5 Ton 13.4 SEER2 AC System with Air Handler ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 400.00 lbs |
|---|---|
| Dimensions | 36.00 × 40.00 × 40.00 in |
| System Type | Heat Pump + Air Handler System |
| Brand | Goodman |
| Tonnage | 1.5 Ton |
| SEER2 | 13.4 |
| Refrigerant | R-32 |
| Airflow Direction | Multi-Position |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
