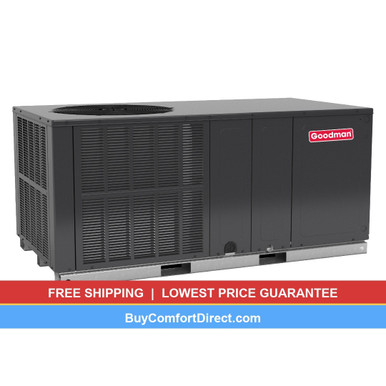

Goodman 2.5 Ton 13.4 SEER2 Packaged Heat Pump – GPHH33031
$4,323.00
-
Product Details
- Model Number
- GPHH33031
- Brand
- Goodman
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
Goodman 2 Ton 13.4 SEER2 Packaged Heat Pump – GPHH33031
The Goodman GPHH33031 is an all-in-one 2 ton packaged heat pump rated at 13.4 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets DOE efficiency requirements for Northeast-region installations; verify local eligibility outside those zones. Compatible with optional electric heat kits for auxiliary heating needs (sold separately).
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GPHH33031 |
| Product Type | Packaged Unit |
| Tonnage | 2 Ton |
| SEER2 Rating | 13.4 |
| EER2 Rating | 10.6 |
| HSPF2 Rating | 6.7 |
| Refrigerant Type | R-32 |
| Cooling Capacity (BTU/h) | 28200 BTU/h |
| Sensible Capacity (BTU/h) | 22842 BTU/h |
| Heating Capacity @47°F (BTU/h) | 27200 BTU/h |
| Heating Capacity @17°F (BTU/h) | 15200 BTU/h |
| COP @47°F | 3.7 |
| COP @17°F | 2.34 |
| Airflow (CFM) | 875 CFM |
| Blower Motor | ECM (0.5 HP) |
| Compressor Type | Scroll |
| Factory Charge (oz) | 98 oz |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 18.03 A |
| Max Overcurrent Protection | 25 A |
| Sound Level (dBA) | 76 dBA |
| Cabinet Size | Small |
| Duct Opening – Supply | 14.0″ x 14.0″ |
| Duct Opening – Return | 14.0″ x 22.0″ |
| Dimensions (H×W×D) | 30.0″ x 66.0″ x 34.0″ |
| Shipping Weight | 360 lbs |
| Operating Weight | 350 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant – Northeast Region Only
This equipment meets Department of Energy efficiency requirements for residential HVAC installations only in Northeast U.S. climate zones. Typically not approved for installation in South, Southeast, or Southwest regions.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | Package Unit |
| Brand | Goodman |
| Tonnage | 2.5 Ton |
| SEER2 | 13.4 |
| HSPF2 | 6.7 |
| Refrigerant | R-32 |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
