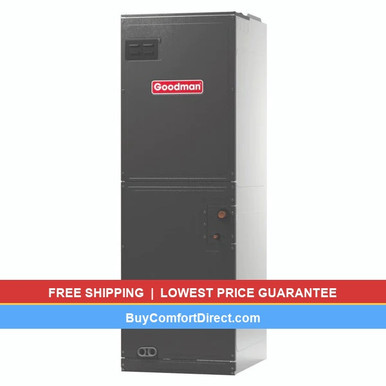

Goodman 2 Ton Air Handler – Multi-Position – AMST24BU13
$1,571.00
-
Product Details
- Model Number
- AMST24BU13
- Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
Goodman AMST24BU13 2 Ton R-32 Multi-Position Air Handler
The Goodman AMST24BU13 is a 2-ton multi-position air handler designed for R-32 refrigerant systems. Featuring a direct-drive multi-speed ECM blower motor and factory-installed TXV, this efficient unit provides reliable air distribution for residential HVAC applications. With its compact 17.5″ cabinet width and versatile installation options, the AMST24BU13 delivers consistent performance in upflow, downflow, or horizontal configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | AMST24BU13 |
| Product Type | Multi-Position Air Handler |
| Nominal Cooling Capacity | 24,000 BTU/h |
| Tonnage | 2-Ton |
| Refrigerant Type | R-32 |
| Expansion Device | Factory-Installed TXV |
| Blower Motor Type | Multi-Speed ECM |
| Blower Diameter × Width | 10″ × 6″ |
| Blower Motor HP | ¾ HP |
| Full Load Amps (FLA) | 4.6 Amps |
| Voltage | 208/240V, 1 Phase, 60 Hz |
| Min Circuit Ampacity | 5.8 Amps |
| Max Overcurrent Protection | 15 Amps |
| Min / Max VAC | 197 / 253 VAC |
| Liquid Line Connection | ⅜” OD |
| Suction Line Connection | ¾” OD |
| Coil Drain Connection | ¾” FPT |
| Cabinet Width | 17.5″ |
| Dimensions (W×D×H) | 17.5″ × 21″ × 45″ |
| Shipping Weight | 112 lbs |
| Installation Configurations | Upflow, Downflow, Horizontal |
| Cabinet Air Leakage | Less than 2.0% @ 1.0″ H₂O (ASHRAE 193) |
| Certifications | AHRI Certified, ETL Listed, UL 60335-2-40 Compliant |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant
This air handler is designed for use with DOE-compliant R-32 refrigerant systems
The AMST24BU13 is Goodman’s multi-position air handler in the 2-ton class — the standard indoor match for Goodman air conditioners and heat pumps of the same capacity. Check the match-up guide or run the free sizing tool to confirm the pairing, and see all Goodman air handlers.
Additional information
| Weight | 112.00 lbs |
|---|---|
| Dimensions | 21.00 × 17.50 × 45.00 in |
| System Type | Air Handler |
| Brand | Goodman |
| Tonnage | 2 Ton |
| Refrigerant | R-32 |
| Airflow Direction | Multi-Position |
| Cabinet Width | 17.5" |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
