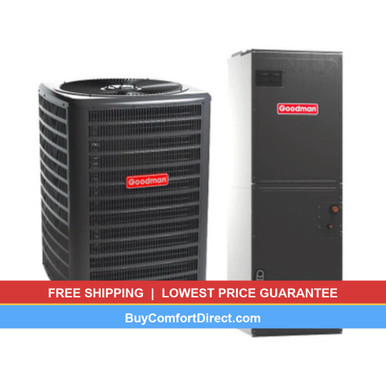

GOODMAN 2.5 Ton 13.4 SEER2 R-32 Air Conditioning System with Multi-Position Air Handler
brand: Goodman
- SKU:
- GLXS3BN3010, AMST30BU13
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 2.5 Ton 13.4 SEER2 R-32 Air Conditioning System with Multi-Position Air Handler
Experience reliable cooling comfort with this Goodman 2.5-ton R-32 13.4 SEER2 air conditioning system. This complete matched system combines a high-efficiency air conditioner outdoor unit with a versatile multi-position air handler. Designed for dependable cooling performance, this system delivers energy efficiency, quiet operation, and reliable comfort with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GLXS3BN3010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS3BN3010 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 2.5 Ton |
| Cooling Capacity | 30,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 60 oz |
| Compressor Type | Rotary |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 14.7 A |
| Max Overcurrent Protection | 25 A |
| Sound Level | 74.0 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | ¾" |
| Dimensions (W×D×H) | 26" × 26" × 32.5" |
| Shipping Weight | 134 lbs |
Air Handler — AMST30BU13 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | AMST30BU13 |
| Product Type | Multi-Position Air Handler |
| Tonnage | 2.5 Ton |
| Refrigerant Type | R-32 Compatible |
| Blower Motor Type | PSC |
| Blower Speeds | Multi-Speed |
| Metering Device | TXV (Thermal Expansion Valve) |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 5.6/5.6 A |
| Max Overcurrent Protection | 15/15 A |
| Dimensions (W×D×H) | 16.3125" × 17.5625" × 53.4375" |
| Shipping Weight | 129 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant for Northern Regions
This complete R-32 13.4 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
