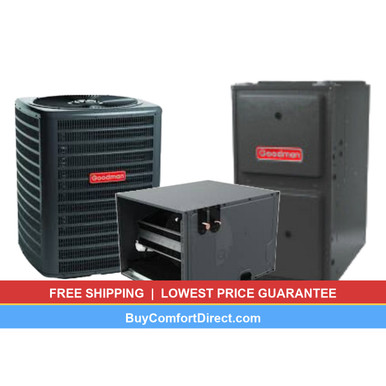

Goodman 2.5 Ton 15.2 SEER2 60,000 BTU 92% AFUE AC and Furnace System – Horizontal – GLXS5BA3010
$5,079.00
-
Product Details
- Model Numbers
- GLXS5BA3010
GR9S920603BNA
CHPTA3026B3 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 2.5 Ton 15.2 SEER2 60 — Goodman 2.5 Ton 15.2 SEER2 60,000 BTU 92% AFUE AC and Furnace System – Horizontal – GLXS5BA3010 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 2.5 Ton 15.2 SEER2 60
GOODMAN 2.5 Ton 15.2 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
Experience reliable home comfort with this complete Goodman 2.5-ton R-32 HVAC system (Horizontal Coil). This matched system combines a high-efficiency 15.2 SEER2 air conditioner, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal “A” evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GLXS5BA3010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS5BA3010 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 2.5 Ton |
| Cooling Capacity | 30,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 87 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 15.4 A |
| Max Overcurrent Protection | 25 A |
| Sound Level | 73.0 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | ¾” |
| Dimensions (W×D×H) | 35″ × 35″ × 39.5″ |
| Shipping Weight | 192 lbs |
Gas Furnace — GR9S920603BN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GR9S920603BN |
| Product Type | Gas Furnace |
| BTU Input | 60,300 BTU/h |
| BTU Output | 55,476 BTU/h |
| AFUE | 92% |
| Heating Stages | Single Stage |
| Blower Motor Type | PSC |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 17.5″ × 29.0″ × 33.0″ |
| Shipping Weight | 140 lbs |

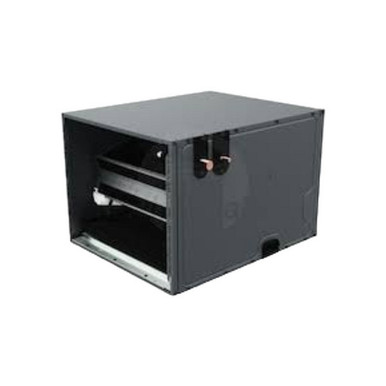

Evaporator Coil — CHPTA3026B3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CHPTA3026B3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 2.5 Ton |
| Refrigerant Type | R-32 Compatible |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ¾” |
| Dimensions (W×D×H) | 23″ × 23″ × 17″ |
| Shipping Weight | 42 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This complete R-32 15.2 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Goodman 2.5 Ton 15.2 SEER2 60: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 2.5 Ton Air Conditioners & AC Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 2.5 Ton 15.2 SEER2 60 FAQ
Does the Goodman 2.5 Ton 15.2 SEER2 60 ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 445.00 lbs |
|---|---|
| Dimensions | 28.00 × 21.00 × 33.50 in |
| System Type | AC + Gas Furnace System |
| Brand | Goodman |
| Tonnage | 2.5 Ton |
| SEER2 | 15.2 |
| AFUE | 92% |
| Heating BTU | 60,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Horizontal |
| Blower Motor | PSC |
| Voltage | 115V |
