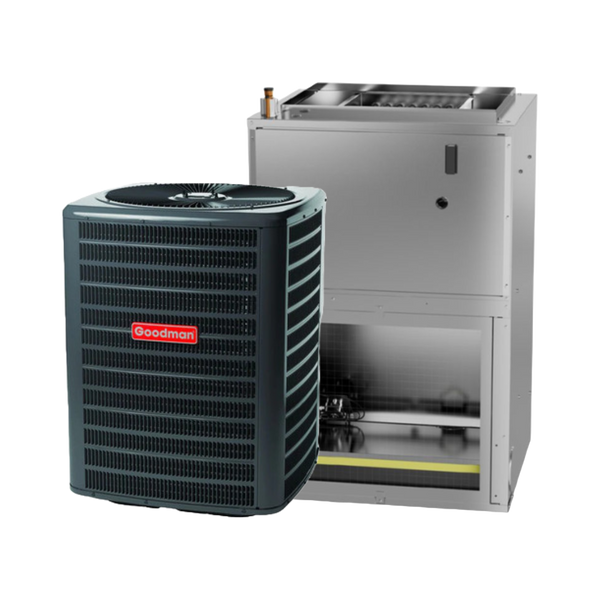

GOODMAN 2.5 Ton 15.2 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler AND 8kw Heat Kit
brand: Goodman
- SKU:
- GLZS5BA3010, AWST30SU1308
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 2.5 Ton 15.2 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler AND 8kw Heat Kit
Experience year-round comfort with this complete Goodman 2.5-ton heat pump system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 15.2 SEER2 heat pump with a wall-mounted air handler that includes a 8kW electric heat kit for supplemental winter heating. Perfect for homes where floor space is limited, this system delivers efficient heating and cooling with R-32 refrigerant while maximizing your usable living space.
Technical Specifications

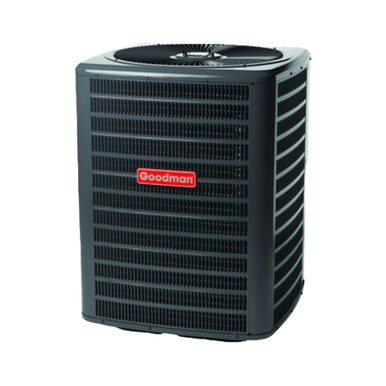

Heat Pump — GLZS5BA3010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 2.5 Ton |
| Refrigerant | R-32 |
| SKU/Model No | GLZS5BA3010 |
| Product Type | Split System Heat Pump |
| Cooling Capacity | 30,000 BTU/h |
| Heating Capacity (47°F) | 30,000 BTU/h |
| SEER2 Rating | Up to 15.2 |
| EER2 Rating | None |
| HSPF2 Rating | None |
| Compressor Type | Scroll |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 17.0 A |
| Max Overcurrent Protection | 25 A |
| Liquid Line Size | ⅜" |
| Suction Line Size | ¾" |
| Refrigerant Charge | 94 oz |
| Dimensions (H×W×D) | 39.5" × 35" × 35" |
| Weight | 235 lbs |
| Sound Level | 73.0 dBA |

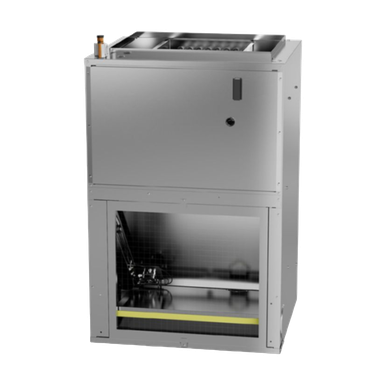

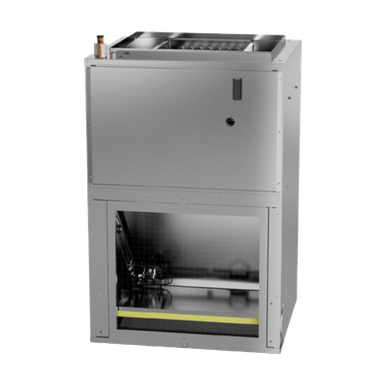

Wall-Hung Air Handler — AWST30LU1308A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 2.5 Ton |
| Refrigerant | R-32 Compatible |
| SKU/Model No | AWST30LU1308A |
| Product Type | Wall-Mounted Air Handler |
| Motor Type | ECM |
| Motor HP | N/A HP |
| Integrated Electric Heat | 8 kW |
| Nominal Cooling Capacity | 30,000 BTU/h |
| Airflow | None CFM |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Device | 20.0 A |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ¾" |
| Metering Device | TXV (Internal) |
| Dimensions (H×W×D) | 30.0" × 38.0" × 11.0" |
| Weight | 45 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This complete R-32 15.2 SEER2 heat pump system meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
