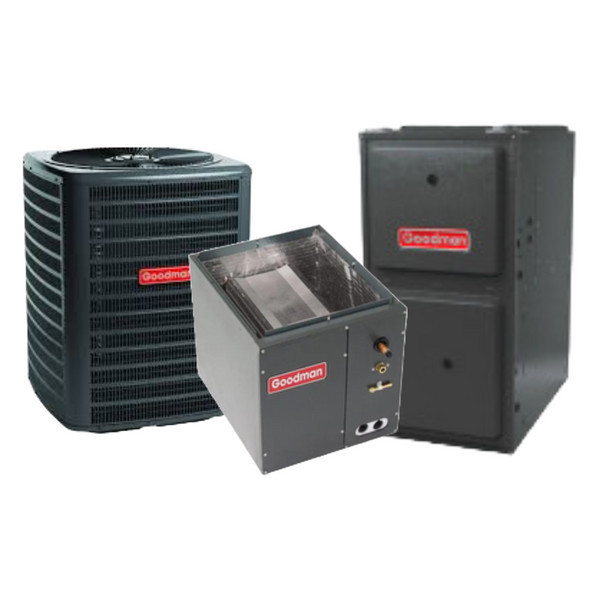

GOODMAN 2 Ton 15.2 SEER2 R-32 92% AFUE Dual Fuel System (Upflow / Vertical Coil)
brand: Goodman
- SKU:
- GLZS5BA2410, GR9S920403ANA, CAPTA2422A3
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 2 Ton 15.2 SEER2 R-32 92% AFUE Dual Fuel System (Upflow / Vertical Coil)
Experience ultimate year-round comfort with this complete Goodman 2-ton dual fuel HVAC system (Upflow / Vertical Coil). This advanced matched system combines a high-efficiency 15.2 SEER2 heat pump, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow / vertical evaporator coil with factory-installed TXV. The dual fuel configuration automatically switches between electric heat pump and gas furnace operation to optimize efficiency and comfort. Designed for exceptional year-round heating and cooling performance, this system delivers outstanding energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Heat Pump — GLZS5BA2410 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLZS5BA2410 |
| Product Type | Heat Pump Condenser |
| Tonnage | 2 Ton |
| Cooling Capacity | 24,000 BTU/h |
| Heating Capacity (47°F) | 24,000 BTU/h |
| SEER2 Rating | 15.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 83 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 13.8 A |
| Max Overcurrent Protection | 20 A |
| Sound Level | 73.0 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | ¾" |
| Dimensions (W×D×H) | 29" × 29" × 39.5" |
| Shipping Weight | 186 lbs |
Gas Furnace — GR9S920403AN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GR9S920403AN |
| Product Type | Gas Furnace |
| BTU Input | 40,300 BTU/h |
| BTU Output | 37,076 BTU/h |
| AFUE | 92% |
| Heating Stages | 1 |
| Blower Motor Type | PSC |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 14.5" × 29.0" × 33.0" |
| Shipping Weight | 120 lbs |
Evaporator Coil — CAPTA2422A3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CAPTA2422A3 |
| Product Type | Cased Upflow / Vertical Evaporator Coil |
| Tonnage | 2 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ¾" |
| Dimensions (W×D×H) | 16.5" × 19.5" × 30.0" |
| Shipping Weight | 40 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 15.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
