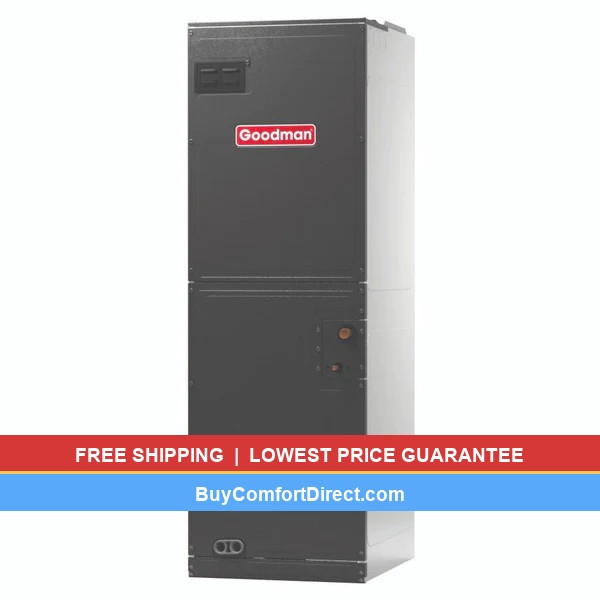

Goodman AMST30BU13 2.5 Ton R-32 Multi-Position Air Handler
The Goodman AMST30BU13 is a 2.5-ton multi-position air handler designed for R-32 refrigerant systems. Featuring a direct-drive multi-speed ECM blower motor and factory-installed TXV, this efficient unit provides reliable air distribution for residential HVAC applications. With its compact 17.5″ cabinet width and versatile installation options, the AMST30BU13 delivers consistent performance in upflow, downflow, or horizontal configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | AMST30BU13 |
| Product Type | Multi-Position Air Handler |
| Nominal Cooling Capacity | 30,000 BTU/h |
| Tonnage | 2.5 Ton |
| Refrigerant Type | R-32 |
| Expansion Device | Factory-Installed TXV |
| Blower Motor Type | Multi-Speed ECM |
| Blower Diameter × Width | 10″ × 6″ |
| Blower Motor HP | ¾ HP |
| Full Load Amps (FLA) | 4.5 Amps |
| Voltage | 208/240V, 1 Phase, 60 Hz |
| Min Circuit Ampacity | 5.6 Amps |
| Max Overcurrent Protection | 15 Amps |
| Min / Max VAC | 197 / 253 VAC |
| Liquid Line Connection | ⅜” OD |
| Suction Line Connection | ¾” OD |
| Coil Drain Connection | ¾” FPT |
| Cabinet Width | 17.5″ |
| Dimensions (W×D×H) | 17.5″ × 21″ × 53⁷⁄₁₆” |
| Shipping Weight | 129 lbs |
| Installation Configurations | Upflow, Downflow, Horizontal |
| Cabinet Air Leakage | Less than 2.0% @ 1.0″ H₂O (ASHRAE 193) |
| Certifications | AHRI Certified, ETL Listed, UL 60335-2-40 Compliant |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant
This air handler is designed for use with DOE-compliant R-32 refrigerant systems
Where the AMST30BU13 fits. The AMST30BU13 is Goodman’s multi-position air handler in the 2.5-ton class — it installs upflow, downflow, or horizontal, and is the standard indoor match for Goodman 2.5-ton R-32 air conditioners and heat pumps (GLXS, GLZS, GXV, and GZV families). It is the straightforward like-for-like replacement for an aging 2.5-ton air handler; add a matching heat kit if you need electric backup heat. Confirm the pairing with the free sizing tool, and see all 2.5-ton Goodman air handlers →
Additional information
| Weight | 129.00 lbs |
|---|---|
| Dimensions | 21.00 × 17.50 × 45.00 in |
| System Type | Air Handler |
| Brand | Goodman |
| Tonnage | 2.5 Ton |
| Refrigerant | R-32 |
| Airflow Direction | Multi-Position |
| Cabinet Width | 17.5" |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
