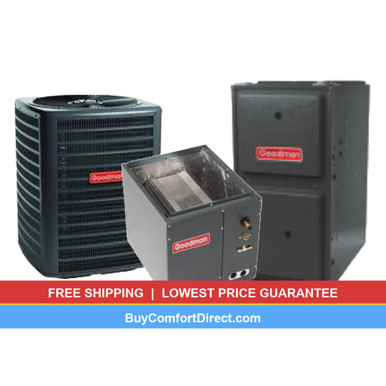

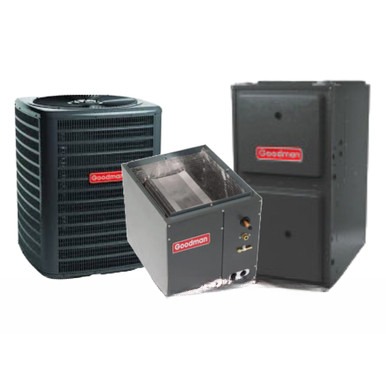

Goodman 2 Ton 14.3 SEER2 40,000 BTU 92% AFUE Dual Fuel System – Upflow – GLZS4BA2410

Goodman 2 Ton 14.3 SEER2 40,000 BTU 92% AFUE Dual Fuel System – Upflow – GLZS4BA2410

Name: Goodman 2 Ton Upflow Dual Fuel 92% Gas - GLZS4BA2410 | Buy Comfort Direct
SKU: GLZS4BA2410, GR9S920403ANA, CAPTA2422A3
Price: 4828.00 USD
Availability: InStock

$4,828.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (3/4" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Propane (LP) Conversion KitOnly if the furnace will run on propane instead of natural gas

Your system total: $4,828.00

Product Details

Model Numbers: GLZS4BA2410
GR9S920403ANA
CAPTA2422A3
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:2 Ton Heat Pumps & Heat Pump Systems 2-Ton Dual Fuel Systems Furnace + Heat Pump Systems

Description

GOODMAN 2 Ton 14.3 SEER2 R-32 92% AFUE Gas Furnace Heat Pump System (Upflow Coil)

Experience superior year-round comfort with this complete Goodman 2-ton dual fuel system (Upflow Coil). This matched system combines a high-efficiency 14.3 SEER2 heat pump for efficient heating and cooling, a 92% AFUE single-stage gas furnace with multi-speed ECM blower for backup heating, and a precision-engineered upflow evaporator coil with factory-installed TXV. As a dual fuel system, it intelligently switches between the heat pump and gas furnace to optimize energy efficiency and comfort in all weather conditions, delivering reliable performance with environmentally-friendly R-32 refrigerant.

Complete System Components (Upflow Coil)

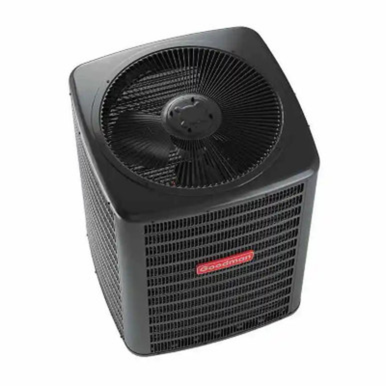

Heat Pump

Goodman GLZS4BA2410A
2 Ton (24,000 BTU/h)
Single-Stage Rotary Compressor
R-32 Refrigerant
14.3 SEER2 / 7.5 HSPF2

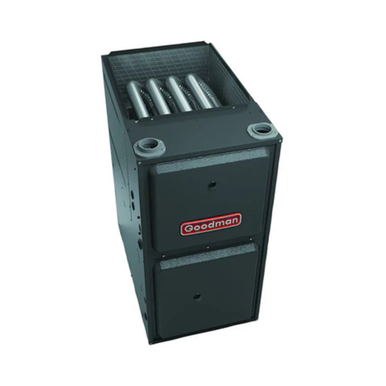

Gas Furnace

Goodman GR9S920403ANA
40,000 BTU/h Input
36,840 BTU/h Output
92% AFUE
Single-Stage Multi-Speed ECM

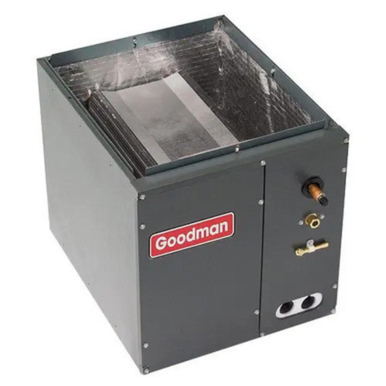

Evaporator Coil

Goodman CAPTA2422A3
2 Ton Cased Upflow Coil
All-Aluminum Construction
Factory-Installed TXV
R-32 Compatible

Technical Specifications

Heat Pump – GLZS4BA2410A Specifications

Specification	Value
Manufacturer	Goodman
Model	GLZS4BA2410A
Tonnage	2 Ton
Cooling Capacity (Nominal)	24,000 BTU/h
Heating Capacity (Nominal)	24,000 BTU/h
SEER2 Rating	14.3
HSPF2 Rating	7.5
Refrigerant	R-32
Compressor Type	Single-Stage Rotary
Compressor RLA	8.2 A
Compressor LRA	41.2 A
Fan Motor Type	PSC (1/6 HP)
Fan Motor FLA	0.95 A
Voltage	208–230V / 1Ph / 60Hz
Min Circuit Ampacity	11.2 A
Max Overcurrent Protection	15 A
Sound Level	74.0 dBA
Dimensions (H×W×D)	32½” × 29″ × 29″
Weight	150 lbs
Refrigerant Charge	70 oz (Factory charged for 15′ line)
Liquid Line Size	⅜”
Suction Line Size	¾”

Gas Furnace – GR9S920403ANA Specifications

Specification	Value
Manufacturer	Goodman
Model	GR9S920403ANA
BTU Input	40,000 BTU/h
BTU Output	36,840 BTU/h
AFUE	92%
Stages	Single-Stage
Blower Motor	Multi-Speed ECM (9-Speed)
Blower HP	1/2 HP
Blower Size	10″ × 6″
Number of Burners	2
Voltage	115 VAC, 60 Hz, Single-Phase
Min Circuit Ampacity	7.6 A
Max Overcurrent Device	15 A
Temperature Rise Range	35–65°F
Vent Diameter	2″
Filter Size	(1) 16″ × 25″ (side) or (1) 14″ × 25″ (bottom)
Cabinet Width	14″
Dimensions (W×D×H)	14″ × 23″ × 34½”
Weight	106 lbs

Evaporator Coil – CAPTA2422A3 Specifications

Specification	Value
Manufacturer	Goodman
Model	CAPTA2422A3
Tonnage	1½–2 Ton
Type	Cased Upflow Indoor Coil
Expansion Device	Factory-Installed TXV (Thermal Expansion Valve)
Refrigerant	R-32 Compatible
Construction	All-Aluminum A-Coil
Dimensions (W×D×H)	14″ × 21″ × 22″
Weight	37 lbs
Liquid Connection	⅜”
Suction Connection	¾”
Cabinet Style	Cased with Drain Pan

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

⧫

Lifetime Heat Exchanger Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones

Additional information

Weight	445.00 lbs
Dimensions	28.00 × 21.00 × 33.50 in
System Type	Dual Fuel System
Brand	Goodman
Tonnage	2 Ton
SEER2	14.3
HSPF2	7.5
AFUE	92%
Heating BTU	40,000 BTU
Refrigerant	R-32
Stages	Single Stage
Airflow Direction	Upflow
Cabinet Width	14"
Blower Motor	Multi-Speed ECM
Voltage	115V
