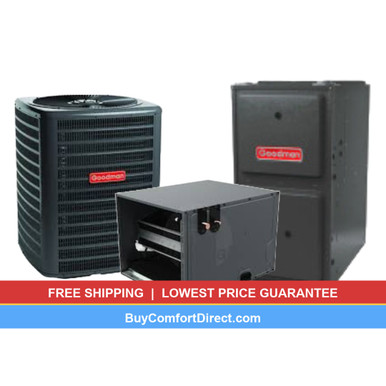

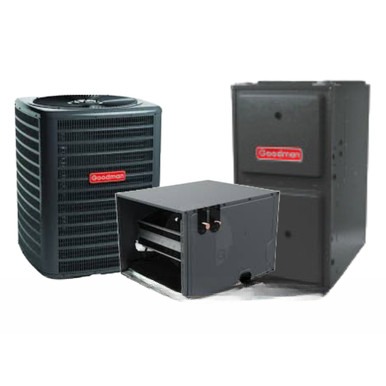

Goodman 3.5 Ton 14.3 SEER2 80,000 BTU 92% AFUE Dual Fuel System - Horizontal
See all Goodman 3.5 Ton Dual Fuel Systems →
$6,514.00
-
4.9 out of 5 from verified customer reviews Read reviews →Product Details
- Model Numbers
- GLZS4BA4210
GR9S920804CNA
CHPTA4230C3 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 3.5 Ton 14.3 SEER2 80 — Goodman 3.5 Ton 14.3 SEER2 80,000 BTU 92% AFUE Dual Fuel System – Horizontal – GLZS4BA4210 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 3.5 Ton 14.3 SEER2 80
GOODMAN 3.5 Ton 14.3 SEER2 R-32 92% AFUE Gas Furnace Heat Pump System (Horizontal Coil)
Experience superior year-round comfort with this complete Goodman 3.5-ton dual fuel system (Horizontal Coil). This matched system combines a high-efficiency 14.3 SEER2 heat pump for efficient heating and cooling, a 92% AFUE single-stage gas furnace with multi-speed ECM blower for backup heating, and a precision-engineered horizontal evaporator coil with factory-installed TXV. As a dual fuel system, it intelligently switches between the heat pump and gas furnace to optimize energy efficiency and comfort in all weather conditions, delivering reliable performance with environmentally-friendly R-32 refrigerant.
Complete System Components (Horizontal Coil)
Heat Pump
Goodman GLZS4BA4210A
3.5 Ton (42,000 BTU/h)
Single-Stage Rotary Compressor
R-32 Refrigerant
14.3 SEER2 / 7.5 HSPF2

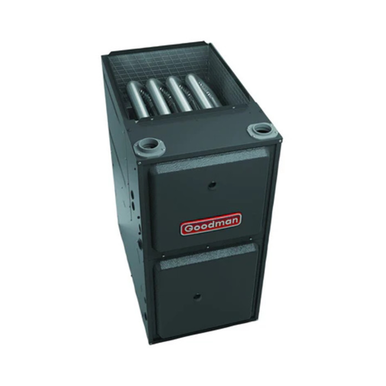

Gas Furnace
Goodman GR9S920804CNA
80,000 BTU/h Input
73,680 BTU/h Output
92% AFUE
Single-Stage Multi-Speed ECM

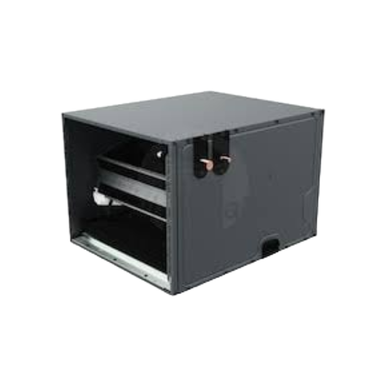

Evaporator Coil
Goodman CHPTA4230C3
3.5 Ton Cased Horizontal Coil
All-Aluminum Construction
Factory-Installed TXV
R-32 Compatible
Technical Specifications
Heat Pump – GLZS4BA4210A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLZS4BA4210A |
| Tonnage | 3.5 Ton |
| Cooling Capacity (Nominal) | 42,000 BTU/h |
| Heating Capacity (Nominal) | 42,000 BTU/h |
| SEER2 Rating | 14.3 |
| HSPF2 Rating | 7.5 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 18.5 A |
| Compressor LRA | 92.5 A |
| Fan Motor Type | PSC (1/4 HP) |
| Fan Motor FLA | 1.70 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 25.3 A |
| Max Overcurrent Protection | 35 A |
| Sound Level | 76.0 dBA |
| Dimensions (H×W×D) | 35¼” × 35½” × 35½” |
| Weight | 220 lbs |
| Refrigerant Charge | 148 oz (Factory charged for 15′ line) |
| Liquid Line Size | ⅜” |
| Suction Line Size | ⅞” |
Gas Furnace – GR9S920804CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GR9S920804CNA |
| BTU Input | 80,000 BTU/h |
| BTU Output | 73,680 BTU/h |
| AFUE | 92% |
| Stages | Single-Stage |
| Blower Motor | Multi-Speed ECM (9-Speed) |
| Blower HP | 3/4 HP |
| Blower Size | 11″ × 10″ |
| Number of Burners | 4 |
| Voltage | 115 VAC, 60 Hz, Single-Phase |
| Min Circuit Ampacity | 10.1 A |
| Max Overcurrent Device | 15 A |
| Temperature Rise Range | 35–65°F |
| Vent Diameter | 2″ |
| Filter Size | (1) 24″ × 25″ (side) or (1) 21″ × 25″ (bottom) |
| Cabinet Width | 21″ |
| Dimensions (W×D×H) | 21″ × 23″ × 34½” |
| Weight | 139 lbs |
Evaporator Coil – CHPTA4230C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | CHPTA4230C3 |
| Tonnage | 2½–3½ Ton |
| Type | Cased Horizontal Indoor Coil |
| Expansion Device | Factory-Installed TXV (Thermal Expansion Valve) |
| Refrigerant | R-32 Compatible |
| Construction | All-Aluminum A-Coil |
| Dimensions (W×D×H) | 30″ × 21″ × 21″ |
| Weight | 70 lbs |
| Liquid Connection | ⅜” |
| Suction Connection | ⅞” |
| Cabinet Style | Cased with Drain Pan |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones
Goodman 3.5 Ton 14.3 SEER2 80: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 3.5 Ton Heat Pumps & Heat Pump Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 3.5 Ton 14.3 SEER2 80 FAQ
Does the Goodman 3.5 Ton 14.3 SEER2 80 ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 445.00 lbs |
|---|---|
| Dimensions | 28.00 × 21.00 × 33.50 in |
| System Type | Dual Fuel System |
| Brand | Goodman |
| Tonnage | 3.5 Ton |
| SEER2 | 14.3 |
| HSPF2 | 7.5 |
| AFUE | 92% |
| Heating BTU | 80,000 BTU |
| Refrigerant | R-32 |
| Stages | Single Stage |
| Airflow Direction | Horizontal |
| Cabinet Width | 21" |
| Blower Motor | Multi-Speed ECM |
| Voltage | 115V |
Customer reviews
This exact model doesn't have its own reviews yet. Buy Comfort Direct is rated 4.9 out of 5 by verified customers.
Read our verified customer reviews →
Bought this from us? Sign in to your account and you can review it here.
