Goodman 3.5 Ton AC System 14.3 SEER2 with 80,000 BTU 80% AFUE Furnace - R-32

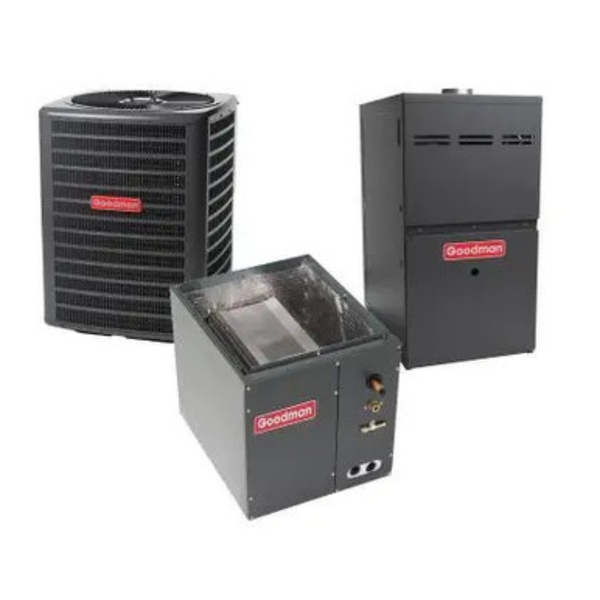

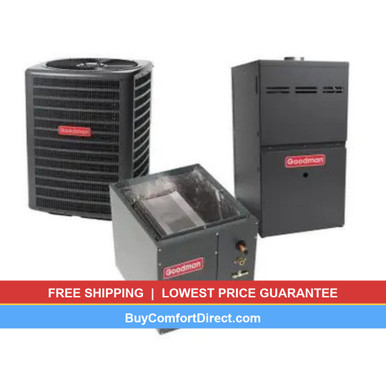

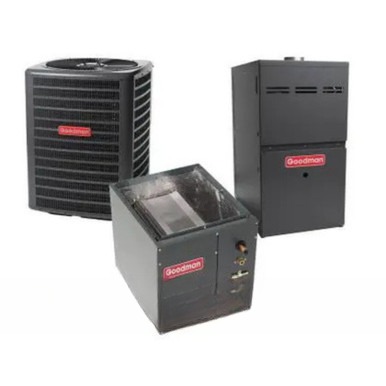

Complete System Includes
- Air Conditioner - Outdoor Unit (Model: GLXS4BA4210)
- Gas Furnace - Indoor Unit (Model: GR9S800804CNA)
- Evaporator Coil - Indoor Coil (Model: CAPTA4230C3)
System Features
- 14.3 SEER2 cooling efficiency
- Single-stage cooling for consistent comfort
- Condenser coil with enhanced fin design
- Environmentally friendly R-32 refrigerant
- 80,000 BTU gas furnace with 80% AFUE efficiency
- Reliable single-stage heating
- Aluminized steel heat exchanger
- Multi-speed blower motor
- All components ETL/AHRI certified
- Qualifies for energy efficiency rebates
- 10-year parts limited warranty available
Component Specifications
Air Conditioner
| Model |
GLXS4BA4210 |
| Manufacturer |
Goodman |
| Tonnage |
3.5 Ton |
| SEER2 Rating |
14.3 |
| Refrigerant |
R-32 |
| Stages |
Single Stage |
| Amperage |
MCA: 30A / MOCP: 45A |
| Dimensions |
36" H x 35" W x 35" D |
| Weight |
205 lbs |
| Electrical |
208-230V/60Hz/1Ph |
| Installation |
Outdoor |

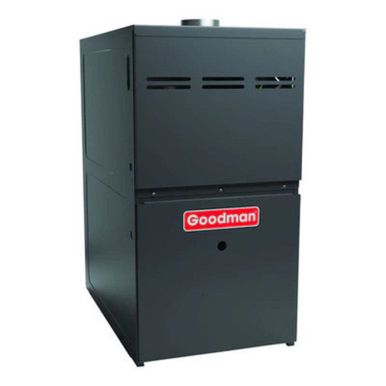

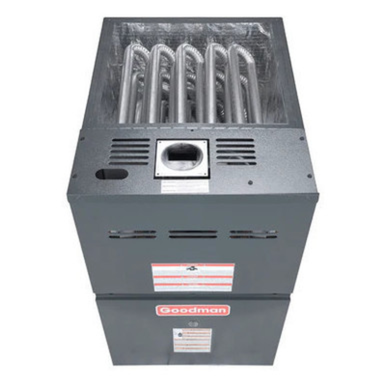

Gas Furnace
| Model |
GR9S800804CNA |
| Manufacturer |
Goodman |
| Heating Capacity |
80,000 BTU/h |
| AFUE Rating |
80% |
| Blower Motor |
Multi-Speed PSC |
| Cabinet Width |
21 inches |
| Dimensions |
40" H x 21" W x 33.5" D |
| Weight |
125 lbs |
| Electrical |
115V/60Hz/1Ph |
| Installation |
Indoor |

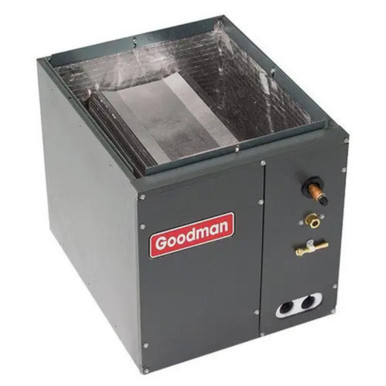

Evaporator Coil
| Model |
CAPTA4230C3 |
| Manufacturer |
Goodman |
| Refrigerant |
R-32 |
| Configuration |
Upflow/Downflow |
| Cabinet Width |
21 inches |
| Dimensions |
30" H x 21" W x 21" D |
| Weight |
65 lbs |
| Installation |
Indoor |
Ideal For
- Homes in cold climate regions
- Replacing both AC and furnace simultaneously
- New construction or major renovation
- Homeowners seeking energy savings
- Properties requiring quiet operation
- Those wanting comprehensive warranty coverage
Professional installation required. All components are factory-matched for optimal performance and efficiency.
Goodman's standard 10 year parts warranty when registered online through the manufacturer.
