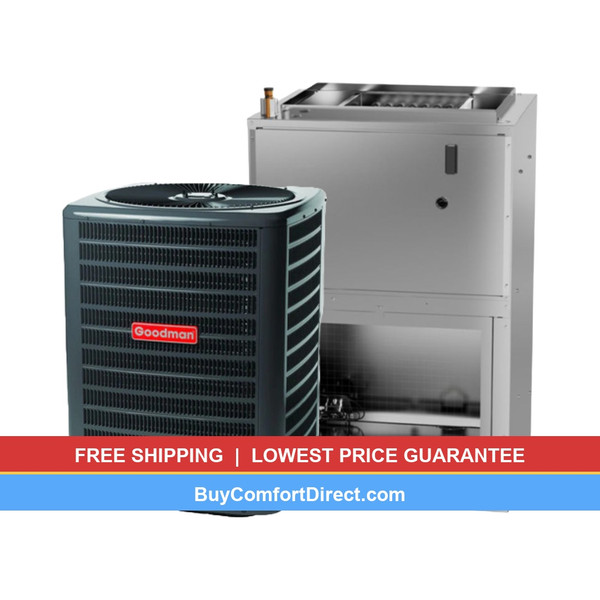

GOODMAN 3 Ton 14.3 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler AND 8kw Heat Kit
brand: Goodman
- SKU:
- GLZS4BA3610, AWST36SU1308
- Condition:
- New
- Shipping:
- Free Shipping

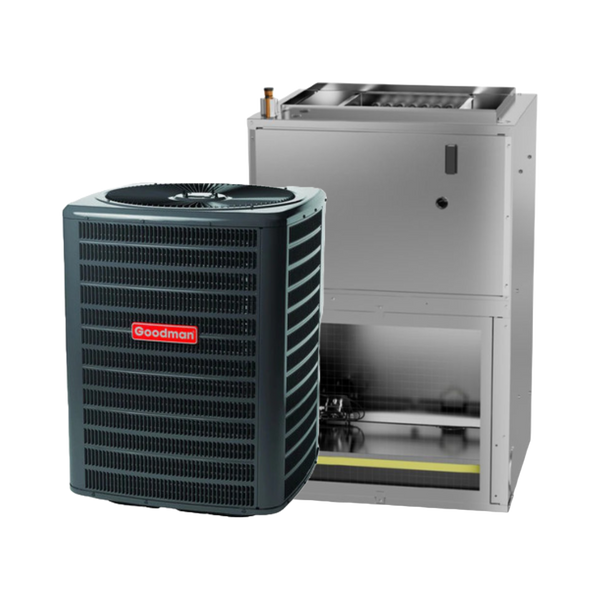

GOODMAN 3 Ton 14.3 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler AND 8kw Heat Kit
Experience superior year-round comfort with this complete Goodman 3-ton heat pump system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 14.3 SEER2 / 7.5 HSPF2 heat pump outdoor unit with a wall-mounted air handler that includes an 8kW backup electric heat kit for reliable supplemental heating. Perfect for homes where floor space is limited, this system delivers efficient heating and cooling with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

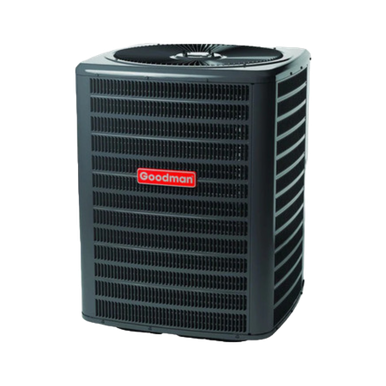

Heat Pump – GLZS4BA3610A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLZS4BA3610A |
| Tonnage | 3 Ton |
| Cooling Capacity (Nominal) | 36,000 BTU/h |
| Heating Capacity (Nominal) | 36,000 BTU/h |
| SEER2 Rating | 14.3 |
| HSPF2 Rating | 7.5 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 16.0 A |
| Compressor LRA | 80.0 A |
| Fan Motor Type | PSC (1/4 HP) |
| Fan Motor FLA | 1.50 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 21.9 A |
| Max Overcurrent Protection | 30 A |
| Sound Level | 75.5 dBA |
| Dimensions (H×W×D) | 35¼" × 35½" × 35½" |
| Weight | 210 lbs |
| Refrigerant Charge | 130 oz (Factory charged for 15' line) |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |

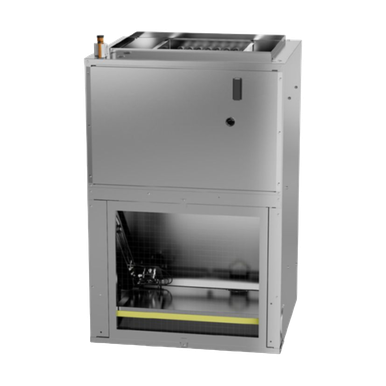

Wall-Hung Air Handler – AWST36LU1308A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | AWST36LU1308A |
| Tonnage | 3 Ton |
| Type | Wall-Hung Indoor Air Handler |
| Refrigerant | R-32 Compatible |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208–230V / 1Ph / 60Hz |
| Integrated Electric Heat Kit | 8 kW (27,297 BTU/h) |
| Heat Kit Voltage | 208–230V / 1Ph / 60Hz |
| Heat Kit Amperage | 34.8 A @ 230V |
| Heat Kit Stages | 3-Stage (3kW + 3kW + 2kW) |
| Metering Device | TXV (Thermal Expansion Valve) |
| Liquid Connection | ⅜" |
| Suction Connection | ⅞" |
| Dimensions (H×W×D) | 31" × 33" × 11" |
| Weight | 85 lbs |
| Filter Type | Washable/Reusable |
| Mounting | Wall-Mount Bracket Included |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones
