Goodman 3 Ton 15.2 SEER2 Heat Pump System with Air Handler – Wall-Mount – GLZS5BA3610
$4,939.00
-
Product Details
- Model Numbers
- GLZS5BA3610
AWST36LU1310 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 3 Ton 15.2 SEER2 Heat Pump System with Air Handler — Goodman 3 Ton 15.2 SEER2 Heat Pump System with Air Handler – Wall-Mount – GLZS5BA3610 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 3 Ton 15.2 SEER2 Heat Pump System with Air Handler
GOODMAN 3 Ton 15.2 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler AND 10kw Heat Kit
Experience year-round comfort with this complete Goodman 3-ton heat pump system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 15.2 SEER2 heat pump with a wall-mounted air handler that includes a 10kW electric heat kit for supplemental winter heating. Perfect for homes where floor space is limited, this system delivers efficient heating and cooling with R-32 refrigerant while maximizing your usable living space.
Technical Specifications

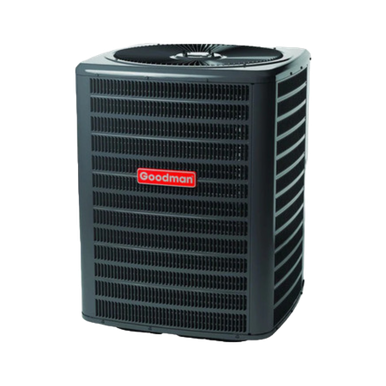

Heat Pump — GLZS5BA3610 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 3 Ton |
| Refrigerant | R-32 |
| SKU/Model No | GLZS5BA3610 |
| Product Type | Split System Heat Pump |
| Cooling Capacity | 36,000 BTU/h |
| Heating Capacity (47°F) | 36,000 BTU/h |
| SEER2 Rating | Up to 15.2 |
| EER2 Rating | None |
| HSPF2 Rating | None |
| Compressor Type | Scroll |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 21.5 A |
| Max Overcurrent Protection | 35 A |
| Liquid Line Size | ⅜” |
| Suction Line Size | ⅞” |
| Refrigerant Charge | 95 oz |
| Dimensions (H×W×D) | 39.5″ × 35″ × 35″ |
| Weight | 242 lbs |
| Sound Level | 71.1 dBA |

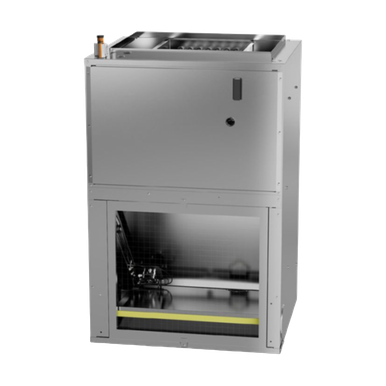

Wall-Hung Air Handler — AWST36LU1310A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 3 Ton |
| Refrigerant | R-32 Compatible |
| SKU/Model No | AWST36LU1310A |
| Product Type | Wall-Mounted Air Handler |
| Motor Type | ECM |
| Motor HP | N/A HP |
| Integrated Electric Heat | 10 kW |
| Nominal Cooling Capacity | 36,000 BTU/h |
| Airflow | None CFM |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Device | 20.0 A |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ⅞” |
| Metering Device | TXV (Internal) |
| Dimensions (H×W×D) | 32.0″ × 42.0″ × 12.0″ |
| Weight | 45 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This complete R-32 15.2 SEER2 heat pump system meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Goodman 3 Ton 15.2 SEER2 Heat Pump System with Air Handler: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 3 Ton Heat Pumps & Heat Pump Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 3 Ton 15.2 SEER2 Heat Pump System with Air Handler FAQ
Does the Goodman 3 Ton 15.2 SEER2 Heat Pump System with Air Handler ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 309.00 lbs |
|---|---|
| Dimensions | 29.00 × 29.00 × 36.00 in |
| System Type | Heat Pump + Air Handler System |
| Brand | Goodman |
| Tonnage | 3 Ton |
| SEER2 | 15.2 |
| Refrigerant | R-32 |
| Voltage | 208/230V |
