Goodman 3 Ton 17.2 SEER2 AC System with Air Handler – Multi-Position – GLZT7CA3610
$6,990.00
Lower price in cart — extra Goodman savings apply automatically at checkout.
-
Product Details
- Model Numbers
- GLZT7CA3610
AMVT36BP1300 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 3 Ton 17.2 SEER2 AC System with Air Handler — Goodman 3 Ton 17.2 SEER2 AC System with Air Handler – Multi-Position – GLZT7CA3610 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 3 Ton 17.2 SEER2 AC System with Air Handler

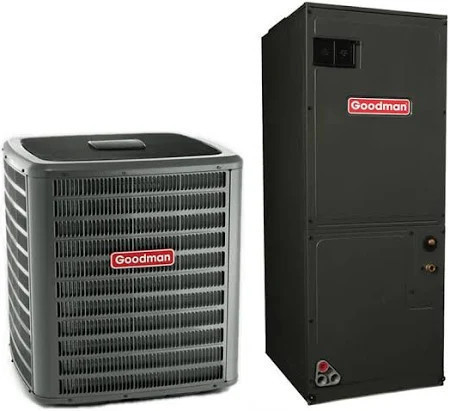

GOODMAN 3 Ton 17.2 SEER2 R-32 Heat Pump System with Multi-Positional Air Handler
Experience year-round comfort with this premium Goodman 3-ton 17.2 SEER2 heat pump system. This complete matched system combines a high-efficiency heat pump outdoor unit with a versatile multi-positional air handler. Designed for reliable heating and cooling performance, this system delivers exceptional energy efficiency, quiet operation, and dependable comfort with R-32 refrigerant.
Technical Specifications

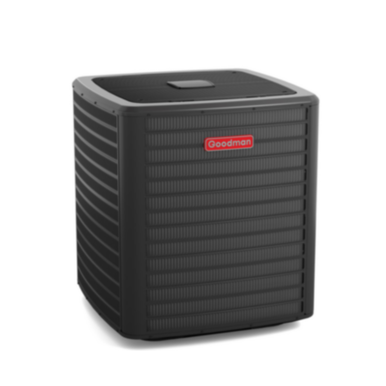

Heat Pump — GLZT7CA3610 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 3 Ton |
| Refrigerant | R-32 |
| SKU/Model No | GLZT7CA3610 |
| Product Type | Split System Heat Pump |
| Cooling Capacity | 36,000 BTU/h |
| Heating Capacity (47°F) | 36,000 BTU/h |
| SEER2 Rating | Up to 17.2 |
| Compressor Type | Two-Stage Scroll |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 20.8 A |
| Max Overcurrent Protection | 35 A |
| Liquid Line Size | ⅜” |
| Suction Line Size | ⅞” |
| Refrigerant Charge | 129 oz |
| Dimensions (H×W×D) | 27.4″ × 36″ × 13″ |
| Weight | 277 lbs |
| Sound Level | 71 dBA |

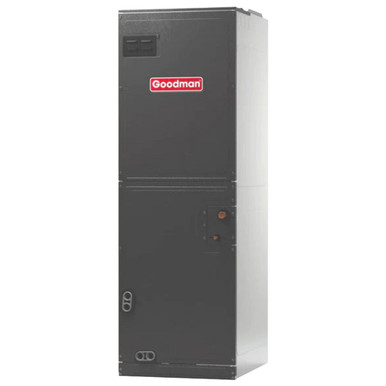

Air Handler — AMVT36BP1300 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 3 Ton |
| SKU/Model No | AMVT36BP1300 |
| Product Type | Multi-Positional Air Handler |
| Motor Type | Variable Speed ECM |
| Nominal Cooling Capacity | 36,000 BTU/h |
| Airflow | 1200 CFM |
| Voltage | 208/240V / 1Ph / 60Hz |
| Min Circuit Ampacity | 6.5 A |
| Max Overcurrent Device | 15.0 A |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ⅞” |
| Metering Device | TXV (Internal) |
| Cabinet Configuration | Multi-Positional (B Cabinet) |
| Dimensions (H×W×D) | 42.0″ × 17.5″ × 21.0″ |
| Weight | 134 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 17.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Goodman 3 Ton 17.2 SEER2 AC System with Air Handler: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 3 Ton Heat Pumps & Heat Pump Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 3 Ton 17.2 SEER2 AC System with Air Handler FAQ
Does the Goodman 3 Ton 17.2 SEER2 AC System with Air Handler ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 200.00 lbs |
|---|---|
| Dimensions | 36.00 × 40.00 × 40.00 in |
| System Type | Heat Pump + Air Handler System |
| Brand | Goodman |
| Tonnage | 3 Ton |
| SEER2 | 17.2 |
| Refrigerant | R-32 |
| Stages | Two Stage |
| Airflow Direction | Multi-Position |
| Voltage | 208/230V |
