Goodman 5 Ton 15.2 SEER2 100,000 BTU 92% AFUE Dual Fuel System – Upflow – GLZS5BA6010

Goodman 5 Ton 15.2 SEER2 100,000 BTU 92% AFUE Dual Fuel System – Upflow – GLZS5BA6010

Name: GOODMAN 5 Ton 15.2 SEER2 R-32 92% AFUE - GLZS5BA6010 | Buy Comfort Direct
SKU: GLZS5BA6010, GR9S921005CNA, CAPT6030C3
Price: 8654.00 USD
Availability: InStock

$8,654.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Lower price in cart — extra Goodman savings apply automatically at checkout.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (7/8" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Propane (LP) Conversion KitOnly if the furnace will run on propane instead of natural gas

Your system total: $8,654.00

Product Details

Model Numbers: GLZS5BA6010
GR9S921005CNA
CAPT6030C3
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:5 Ton Heat Pumps & Heat Pump Systems 5-ton Dual Fuel Systems Furnace + Heat Pump Systems

Description

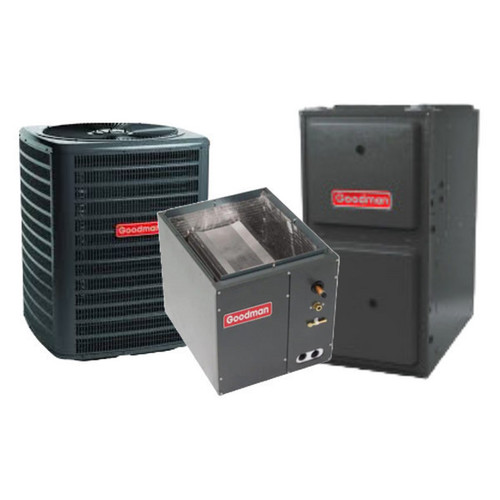

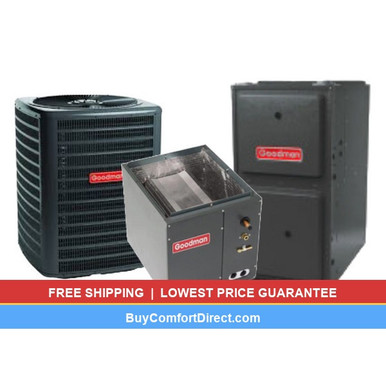

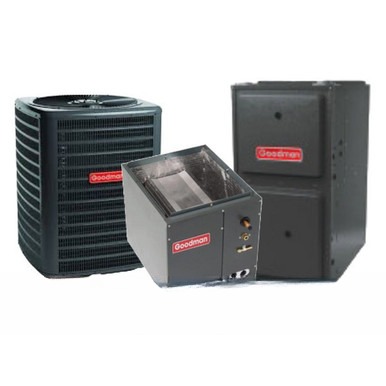

GOODMAN 5 Ton 15.2 SEER2 R-32 92% AFUE Dual Fuel System (Upflow / Vertical Coil)

Experience ultimate year-round comfort with this complete Goodman 5-ton dual fuel HVAC system (Upflow / Vertical Coil). This advanced matched system combines a high-efficiency 15.2 SEER2 heat pump, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow / vertical evaporator coil with factory-installed TXV. The dual fuel configuration automatically switches between electric heat pump and gas furnace operation to optimize efficiency and comfort. Designed for exceptional year-round heating and cooling performance, this system delivers outstanding energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.

Technical Specifications

Heat Pump — GLZS5BA6010 Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GLZS5BA6010
Product Type	Heat Pump Condenser
Tonnage	5 Ton
Cooling Capacity	60,000 BTU/h
Heating Capacity (47°F)	60,000 BTU/h
SEER2 Rating	15.2
Refrigerant Type	R-32
Refrigerant Charge	185 oz
Compressor Type	Scroll
Voltage/Phase/Frequency	208/230V-1-60Hz
Min Circuit Ampacity	34.8 A
Max Overcurrent Protection	60 A
Sound Level	74.8 dBA
Liquid Line Size	⅜”
Suction Line Size	1⅛”
Dimensions (W×D×H)	35″ × 35″ × 41.625″
Shipping Weight	329 lbs

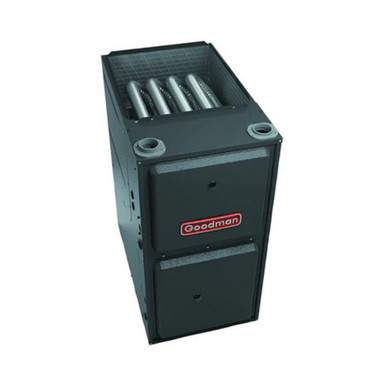

Gas Furnace — GR9S921005CN Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GR9S921005CN
Product Type	Gas Furnace
BTU Input	100,500 BTU/h
BTU Output	92,460 BTU/h
AFUE	92%
Heating Stages	Single Stage
Blower Motor Type	PSC
Configuration	Multi-Position
Voltage/Phase/Frequency	120V-1-60Hz
Min Circuit Ampacity	15.0 A
Max Overcurrent Protection	15.0 A
Dimensions (W×D×H)	21.0″ × 29.0″ × 33.0″
Shipping Weight	180 lbs

Evaporator Coil — CAPTA6030C3 Specifications

Specification	Value
Manufacturer	Goodman
Model Number	CAPTA6030C3
Product Type	Cased Upflow / Vertical Evaporator Coil
Tonnage	5 Ton
Metering Device	Factory-Installed TXV
Configuration	Cased
Liquid Line Connection	⅜”
Suction Line Connection	¾”
Dimensions (W×D×H)	19.5″ × 22.5″ × 39.0″
Shipping Weight	55 lbs

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

∞

Lifetime Heat Exchanger Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This 15.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Additional information

Weight	445.00 lbs
Dimensions	28.00 × 21.00 × 33.50 in
System Type	Dual Fuel System
Brand	Goodman
Tonnage	5 Ton
SEER2	15.2
AFUE	92%
Heating BTU	100,000 BTU
Refrigerant	R-32
Airflow Direction	Upflow
Blower Motor	PSC
Voltage	115V
