GOODMAN GXV6SS4210 - 3.5 Ton 16.2 SEER2 Modulating Variable-Speed Air Conditioner System
brand: Goodman
- SKU:
- GXV6SS4210, AHVE42CP1300, HKTSN10X1, GTST-CW-WH-A
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN GXV6SS4210 - 3.5 Ton 16.2 SEER2 Modulating Variable-Speed Air Conditioner System

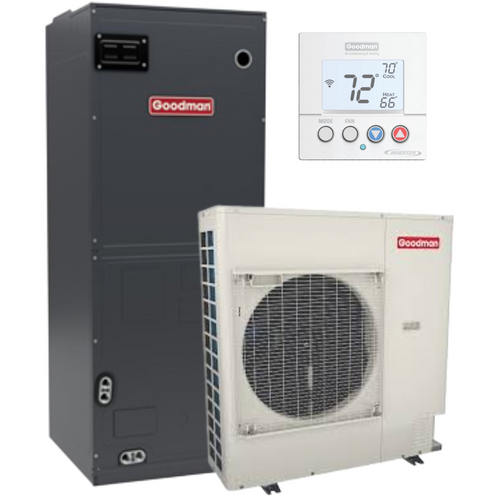

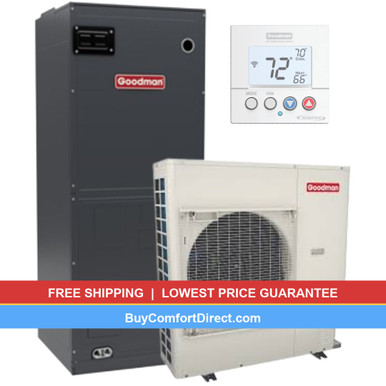

Complete 3.5-ton modulating air conditioning system for larger homes and higher cooling loads. Includes inverter-driven outdoor AC, variable-speed air handler, 10 kW electric heat kit, and a communicating smart thermostat.
System Components
Air Conditioner: GXV6SS4210
3.5-ton inverter-driven modulating outdoor unit using R-32 for efficient, quiet operation.
Air Handler: AHVE42CP1300
3.5-ton variable-speed ECM air handler with EEV for precise airflow and enhanced dehumidification.
Heat Kit: HKTSN10X1
10 kW electric auxiliary heat for cool weather support.
Thermostat: GTST-CW-WH-A
Communicating smart thermostat with WiFi connectivity and smart scheduling.
Air Conditioner - GXV6SS4210 Specifications
| Specification | Value |
|---|---|
| Cooling Capacity | 42,000 BTU/h |
| Tonnage | 3.5 Ton |
| SEER2 Rating | 16.2 |
| Compressor Type | Inverter-Driven Modulating Scroll |
| Refrigerant | R-32 |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 23.0 A |
| Max Overcurrent Protection | 35 A |
| Liquid / Suction Line | 3/8" / 7/8" |
| Dimensions (H×W×D) | 33¼" × 29⅜" × 29⅜" |
| Weight | 160 lbs |
| Sound Level | As low as 60 dBA |
Air Handler - AHVE42CP1300 Specifications
| Specification | Value |
|---|---|
| Nominal Capacity | 3.5 Ton |
| Blower Motor Type | Variable-Speed ECM |
| Expansion Device | Electronic Expansion Valve (EEV) |
| Refrigerant Type | R-32 / R-410A Compatible |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 7.5 A |
| Max Overcurrent Protection | 15 A |
| Liquid / Suction Line | 3/8" / 7/8" |
| Dimensions (H×W×D) | 53⅜" × 21" × 21" |
| Cabinet Width | 21" |
| Ship Weight | 120 lbs |
Heat Kit - HKTSN10X1 Specifications
| Specification | Value |
|---|---|
| Heating Capacity | 10.0 kW (34,130 BTU) |
| Voltage | 208/240V Single Phase |
| Heater Amps (208V/240V) | 34.7 / 40.0 A |
| Min Circuit Ampacity | 49.9 / 56.5 A |
| Max Overcurrent Protection | 50 / 60 A |
| Stages | Single |
| Fuse Type | Plug-in Fuse Block |
Thermostat - GTST-CW-WH-A Specifications
| Specification | Value |
|---|---|
| Type | Smart Communicating |
| Display | Color Touchscreen |
| Connectivity | WiFi Enabled |
| Compatibility | Communicating Equipment |
| Control Wires | 2-Wire Communication |
| Power Source | 24VAC Common Wire |
| Operating Temperature | 32°F to 99°F |
| Humidity Range | 5%–90% RH |
| Features | Smart Scheduling, Remote Access, Energy Reports |
System Performance & Benefits
For higher loads, the 3.5-ton modulating AC system delivers efficient, low-sound cooling with excellent airflow and humidity control.
Key System Benefits:
- 16.2 SEER2: Efficient seasonal cooling.
- Inverter Modulation: Precision temperature control.
- Variable-Speed Blower: Enhanced comfort and IAQ.
- Smart Thermostat: WiFi-enabled control.
- 10 kW Aux Heat: Added comfort in cool weather.
- R-32 Refrigerant: Lower environmental impact.
Professional Installation Recommended
This complete HVAC system is best installed by certified technicians to ensure optimal performance, proper commissioning, and warranty compliance.
Important Efficiency Notice
This 16.2 SEER2 system is intended to meet current DOE efficiency standards, but local and state codes may vary. Always verify compliance with applicable regulations and manufacturer guidelines to ensure proper operation and eligibility for warranty protection.
