GOODMAN GXV6SS4210 - 5.0 Ton 16.2 SEER2 Modulating Variable-Speed Air Conditioner System
brand: Goodman
- SKU:
- GXV6SS6010, AHVE60DP1300, HKTSN10X1, GTST-CW-WH-A
- Condition:
- New
- Shipping:
- Free Shipping

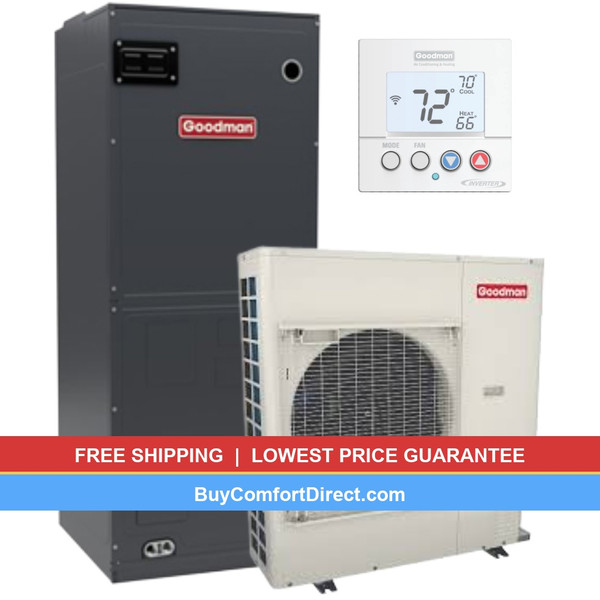

GOODMAN GXV6SS6010 - 5.0 Ton 16.2 SEER2 Modulating Variable-Speed Air Conditioner System
Complete 5.0-ton high-capacity modulating air conditioning system engineered for quiet, efficient performance. Includes inverter-driven outdoor AC, variable-speed air handler, 10 kW electric heat kit, and a communicating smart thermostat.
System Components
Air Conditioner: GXV6SS6010
5.0-ton inverter-driven modulating outdoor unit with R-32 for efficient, low-sound cooling.
Air Handler: AHVE60DP1300
5.0-ton variable-speed ECM air handler with EEV for smooth airflow and superior humidity control.
Heat Kit: HKTSN10X1
10 kW electric auxiliary heat for additional comfort during cool weather.
Thermostat: GTST-CW-WH-A
Communicating WiFi thermostat with remote access and intelligent scheduling.
Air Conditioner - GXV6SS6010 Specifications
| Specification | Value |
|---|---|
| Cooling Capacity | 60,000 BTU/h |
| Tonnage | 5.0 Ton |
| SEER2 Rating | 16.2 |
| Compressor Type | Inverter-Driven Modulating Scroll |
| Refrigerant | R-32 |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 29.5 A |
| Max Overcurrent Protection | 45 A |
| Liquid / Suction Line | 3/8" / 7/8" |
| Dimensions (H×W×D) | 33¼" × 29⅜" × 29⅜" |
| Weight | 175 lbs |
| Sound Level | As low as 62 dBA |
Air Handler - AHVE60DP1300 Specifications
| Specification | Value |
|---|---|
| Nominal Capacity | 5.0 Ton |
| Blower Motor Type | Variable-Speed ECM |
| Expansion Device | Electronic Expansion Valve (EEV) |
| Refrigerant Type | R-32 / R-410A Compatible |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 8.0 A |
| Max Overcurrent Protection | 15 A |
| Liquid / Suction Line | 3/8" / 7/8" |
| Dimensions (H×W×D) | 53⅜" × 24½" × 21" |
| Cabinet Width | 24½" |
| Ship Weight | 160 lbs |
Heat Kit - HKTSN10X1 Specifications
| Specification | Value |
|---|---|
| Heating Capacity | 10.0 kW (34,130 BTU) |
| Voltage | 208/240V Single Phase |
| Heater Amps (208V/240V) | 34.7 / 40.0 A |
| Min Circuit Ampacity | 49.9 / 56.5 A |
| Max Overcurrent Protection | 50 / 60 A |
| Stages | Single |
| Fuse Type | Plug-in Fuse Block |
Thermostat - GTST-CW-WH-A Specifications
| Specification | Value |
|---|---|
| Type | Smart Communicating |
| Display | Color Touchscreen |
| Connectivity | WiFi Enabled |
| Compatibility | Communicating Equipment |
| Control Wires | 2-Wire Communication |
| Power Source | 24VAC Common Wire |
| Operating Temperature | 32°F to 99°F |
| Humidity Range | 5%–90% RH |
| Features | Smart Scheduling, Remote Access, Energy Reports |
System Performance & Benefits
The 5.0-ton modulating AC system provides high-capacity, efficient cooling with variable airflow, smart controls, and low sound levels for large homes and high-load applications.
Key System Benefits:
- 16.2 SEER2: Efficient seasonal performance.
- Modulating Compressor: Precise capacity control.
- Variable-Speed Indoor: Superior comfort and humidity control.
- Smart Thermostat: WiFi and intelligent scheduling.
- 10 kW Aux Heat: Supplemental heating support.
- R-32 Refrigerant: Lower GWP solution.
Professional Installation Recommended
This complete HVAC system is best installed by certified technicians to ensure optimal performance, proper commissioning, and warranty compliance.
Important Efficiency Notice
This 16.2 SEER2 system is intended to meet current DOE efficiency standards, but local and state codes may vary. Always verify compliance with applicable regulations and manufacturer guidelines to ensure proper operation and eligibility for warranty protection.
