GOODMAN GZV7SA4810 - 4.0 Ton 17.5 SEER2 Variable-Speed Heat Pump System
Complete high-efficiency heat pump system featuring variable-speed modulating technology and advanced communicating capabilities. This matched system delivers optimal comfort control with energy-saving performance and includes heat pump, air handler, backup electric heat, and smart thermostat.

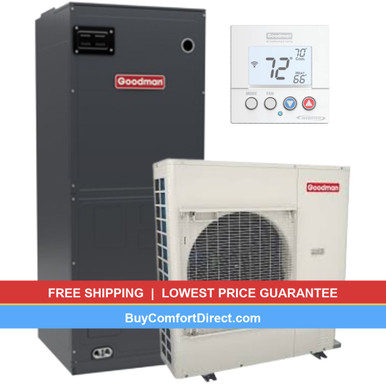

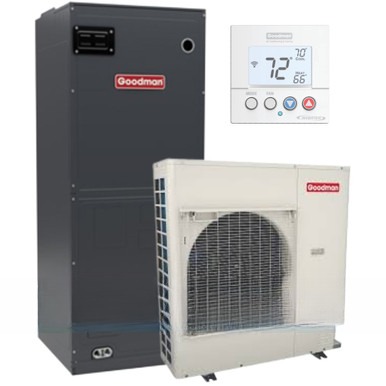

System Components
Heat Pump: GZV7SA4810
4.0-ton variable-speed outdoor unit with R-32 refrigerant and quiet operation
Air Handler: AHVE60DP1300
5.0-ton variable-speed ECM motor with electronic expansion valve
Heat Kit: HKTSN10X1
10KW electric backup heating for cold weather operation
Thermostat: GTST-CW-WH-A
Smart communicating thermostat with WiFi connectivity
Heat Pump - GZV7SA4810 Specifications
| Specification | Value |
|---|---|
| Cooling Capacity | 46,500 BTU |
| Heating Capacity (47°F) | 47,500 BTU |
| Heating Capacity (5°F) | 33,600 BTU |
| Tonnage | 4.0 Ton |
| SEER2 Rating | 17.5 |
| HSPF2 Rating | Up to 8.8 |
| Compressor Type | Variable-Speed Swing |
| Refrigerant | R-32 |
| Voltage | 208-230V/1Ph |
| Min Circuit Ampacity | 37.5 Amps |
| Max Overcurrent Protection | 40 Amps |
| Refrigerant Charge | 118 oz |
| Weight | 179 lbs |
| Sound Level | As low as 45 dBA |
Air Handler - AHVE60DP1300 Specifications
| Specification | Value |
|---|---|
| Nominal Tons | 5.0 Ton |
| Blower Diameter | 12" |
| Blower Width | 10⅝" |
| Liquid Refrigerant | ⅜" |
| Suction Refrigerant | ⅞" |
| Coil Drain Connection | ¾" NPT |
| Voltage | 208/230V-1Ph |
| Min Circuit Ampacity | 6.8 Amps |
| Max Overcurrent Device | 15 Amps |
| Blower Motor FLA | 6.9 Amps |
| Blower Motor HP | 1 HP |
| Ship Weight | 167 lbs |
| Dimensions | 58" x 23⁵⁄₁₆" x 24½" |
| Cabinet Width | 24.5" Wide |
Heat Kit - HKTSN10X1 Specifications
| Specification | Value |
|---|---|
| Heating Capacity | 10.0 KW |
| Heating Capacity (BTU) | 34,130 BTU |
| Voltage | 208/240V Single Phase |
| Heater Amps (208V/240V) | 34.7/40.0 Amps |
| Min Circuit Ampacity (208V/240V) | 52.0/58.6 Amps |
| Max Overcurrent Protection (208V/240V) | 60/60 Amps |
| Installation | Field Installed |
| Service Disconnect | No Service Disconnect |
Thermostat - GTST-CW-WH-A Specifications
| Specification | Value |
|---|---|
| Type | Smart Communicating |
| Display | Color Touchscreen |
| Connectivity | WiFi Enabled |
| Compatibility | Goodman Communicating Equipment |
| Control Wires | 2-Wire Communication |
| Color | White |
| Installation | Wall Mount |
| Power Source | 24VAC Common Wire |
| Operating Temperature | 32°F to 99°F |
| Humidity Range | 5% to 90% RH |
| Features | Smart Scheduling, Remote Access |
System Performance & Benefits
This complete Goodman heat pump system provides year-round comfort with exceptional efficiency and smart controls for mid-to-large homes and applications.
Key System Benefits:
- High Efficiency: 17.5 SEER2 rating significantly reduces energy costs year-round.
- Variable-Speed Comfort: Precise temperature control with enhanced humidity management.
- Smart Controls: WiFi-enabled thermostat provides remote access and intelligent scheduling.
- Robust Backup Heating: 10KW electric heat kit ensures comfort during extreme cold weather.
- Quiet Operation: Variable-speed technology and advanced design minimize noise levels.
- Environmentally Friendly: R-32 refrigerant with reduced global warming potential.
- High-Capacity Design: 5-ton air handler provides superior airflow for larger applications.
- Communicating Technology: All components work together for optimized performance.
- Cold Climate Performance: Energy Star Cold Climate certified for reliable heating in harsh weather.
Professional Installation Recommended
This complete HVAC system is best installed by certified technicians to ensure optimal performance, proper commissioning, and warranty compliance. Please ensure this equipment meets all applicable state regulations and requirements for your installation location, including California and Alaska specific codes and standards.
