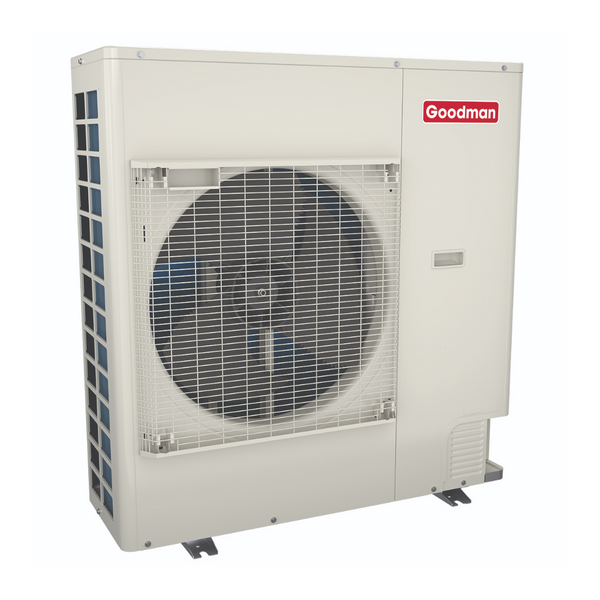

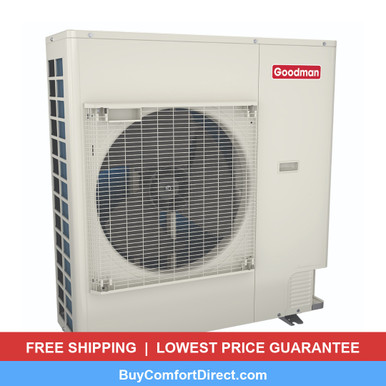

GOODMAN GZV7SA4810 - 4.0 Ton 17.5 SEER2 Variable-Speed Heat Pump
brand: Goodman
- SKU:
- GZV7SA4810
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN GZV7SA4810 - 4.0 Ton 17.5 SEER2 Variable-Speed Heat Pump
High-performance 4.0-ton heat pump with inverter-driven variable-speed swing compressor and eco-friendly R-32 refrigerant. Engineered for efficient, reliable comfort and advanced communicating diagnostics.
Energy Efficiency
Delivers 17.5 SEER2 efficiency to help reduce energy usage and utility costs.
Variable-Speed Control
Inverter technology modulates capacity smoothly for precise temperature and humidity control.
Cold-Climate Heating
33,600 BTU/h heating capacity at 5°F for dependable winter performance.
Service Friendly
Communicating diagnostics and front-sealing service valves simplify maintenance.
Technical Specifications
Factory-rated specifications for the GOODMAN GZV7SA4810.
| Specification | Value |
|---|---|
| Cooling Capacity (95°F) | 46,500 BTU/h |
| Heating Capacity (47°F) | 47,500 BTU/h |
| Heating Capacity (5°F) | 33,600 BTU/h |
| Tonnage | 4.0 Ton |
| SEER2 Rating | 17.5 |
| Compressor Type | Variable-Speed Swing |
| Refrigerant | R-32 |
| Factory Charge | 118 oz |
| Subcooling at Service Valve | 9 ± 1°F |
| Voltage / Phase / Hertz | 208–230V / 1Ph / 60Hz |
| Fan/Compressor Inverter Input | 30 A |
| Minimum Circuit Ampacity (MCA) | 37.5 A |
| Max Overcurrent Protection | 40 A |
| Electrical Conduit Size | ½" or ¾" |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 1⅛" |
| Liquid Valve Size (O.D.) | 3/8" |
| Suction Valve Size (O.D.) | 7/8" |
| Dimensions (W × D × H) | 37" × 12⅝" × 39" |
| Net / Shipping Weight | 179 lbs / 198 lbs |
Performance & Reliability
The GZV7SA4810 pairs high efficiency with year-round comfort. Its inverter system ramps capacity up and down to match your home’s needs while the durable steel cabinet and EEV metering ensure consistent performance.
Key Benefits:
- Efficient Comfort: 17.5 SEER2 performance to help lower operating costs.
- Better Dehumidification: Variable speed delivers longer, gentler cycles.
- Environmentally Responsible: Charged with lower-GWP R-32.
- Installer Friendly: Clearly specified line sizes and service valves.
Professional Installation Required
Licensed HVAC installation is required to ensure warranty coverage, safety, and peak performance.
