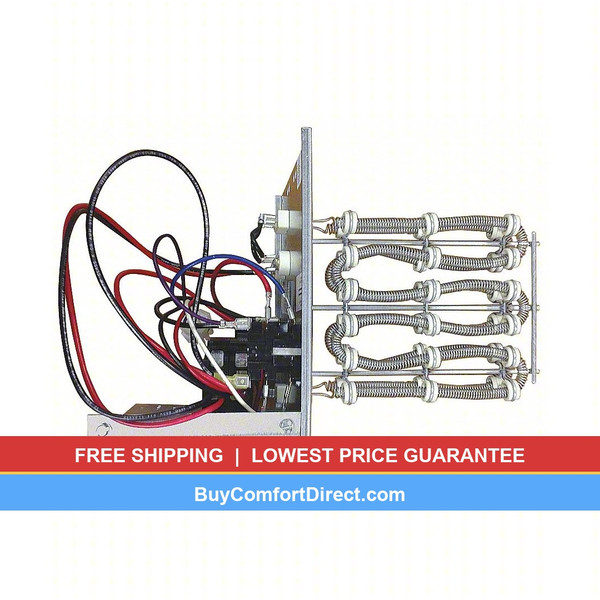

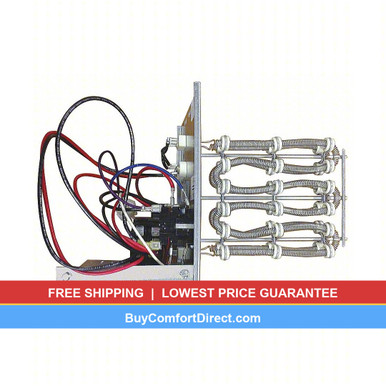

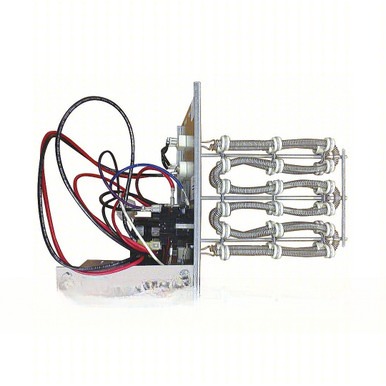

Goodman HKTSD15XA 15 kW Electric Heat Strip Kit

The Goodman HKTSD15XA is a 15 kW dual-circuit electric heat strip kit designed for use with compatible Goodman air handlers. Delivering reliable supplemental heating with 14.4 kW total output at 240V, this field-installed accessory features integrated service disconnect for safe maintenance. The dual-circuit design with two independent heating stages provides efficient electric heat for residential HVAC systems requiring higher heating capacity.

Technical Specifications

Specification	Value
Manufacturer	Goodman
Model Number	HKTSD15XA
Product Type	Dual-Circuit Electric Heat Strip Kit
Heating Capacity (Nominal)	15 kW
Total Heating Output @ 240V	14.4 kW (49,140 BTU/h)
Circuit 1 Output @ 240V	9.6 kW (32,760 BTU/h)
Circuit 2 Output @ 240V	4.8 kW (16,380 BTU/h)
Voltage	208/240V, 1 Phase, 60 Hz
Circuit 1 Current @ 208V/240V	34.7 / 40.0 Amps
Circuit 2 Current @ 208V/240V	17.3 / 20.0 Amps
Single-Point Kit MCA @ 208V/240V	69.9 / 79.9 Amps
Single-Point Kit MOP @ 208V/240V	70 / 80 Amps
Service Disconnect	Integrated Service Disconnect (D designation)
Installation Type	Field-Installed Accessory
Compatible Cabinet Sizes	All Cabinet Sizes (X designation)
Circuit Configuration	Dual-Circuit (Two Independent Stages)
Application	Supplemental Heat for Air Handlers
Certifications	ETL Listed, UL Compliant

Comprehensive Warranty Protection

Year Parts Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

Field-Installed Accessory

This heat strip kit is designed for field installation in compatible Goodman air handler units
