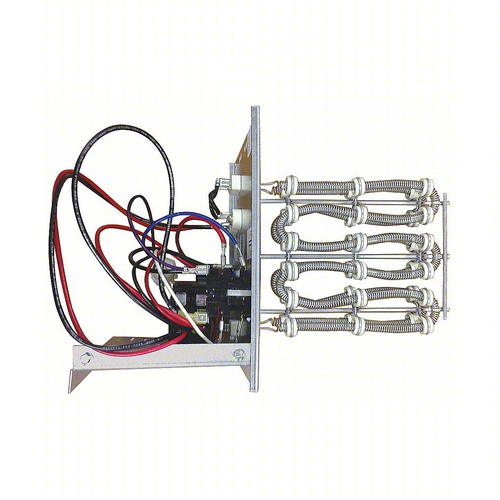

Goodman HKTSN05X1 5 kW Electric Heat Strip Kit
The Goodman HKTSN05X1 is a 5 kW electric heat strip kit designed for use with compatible Goodman air handlers. Delivering reliable supplemental heating with 4.8 kW output at 240V, this field-installed accessory provides efficient electric heat for residential HVAC systems. The single-phase design ensures straightforward installation and dependable performance across a range of applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | HKTSN05X1 |
| Product Type | Electric Heat Strip Kit |
| Heating Capacity (Nominal) | 5 kW |
| Heating Output @ 240V | 4.8 kW (16,380 BTU/h) |
| Voltage | 208/240V, 1 Phase, 60 Hz |
| Current Draw @ 208V | 17.3 Amps |
| Current Draw @ 240V | 20.0 Amps |
| Service Disconnect | No Service Disconnect (Field Wiring Required) |
| Installation Type | Field-Installed Accessory |
| Compatible Cabinet Sizes | All Cabinet Sizes (X designation) |
| Circuit Configuration | Single Circuit |
| Application | Supplemental Heat for Air Handlers |
| Certifications | ETL Listed, UL Compliant |
Comprehensive Warranty Protection
5
Year Parts Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
Field-Installed Accessory
This heat strip kit is designed for field installation in compatible Goodman air handler units
