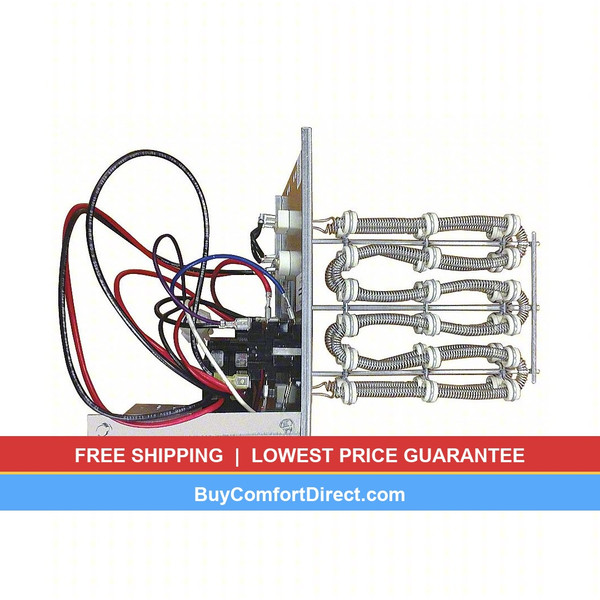

Goodman HKTSN10X1 10 kW Electric Heat Strip Kit

The Goodman HKTSN10X1 is a 10 kW electric heat strip kit designed for use with compatible Goodman air handlers. Delivering reliable supplemental heating with 9.6 kW output at 240V, this field-installed accessory provides efficient electric heat for residential HVAC systems. The single-phase design ensures straightforward installation and dependable performance across a range of applications.

Technical Specifications

Specification	Value
Manufacturer	Goodman
Model Number	HKTSN10X1
Product Type	Electric Heat Strip Kit
Heating Capacity (Nominal)	10 kW
Heating Output @ 240V	9.6 kW (32,760 BTU/h)
Voltage	208/240V, 1 Phase, 60 Hz
Current Draw @ 208V	34.7 Amps
Current Draw @ 240V	40.0 Amps
Service Disconnect	No Service Disconnect (Field Wiring Required)
Installation Type	Field-Installed Accessory
Compatible Cabinet Sizes	All Cabinet Sizes (X designation)
Circuit Configuration	Single Circuit
Application	Supplemental Heat for Air Handlers
Certifications	ETL Listed, UL Compliant

Comprehensive Warranty Protection

Year Parts Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

Field-Installed Accessory

This heat strip kit is designed for field installation in compatible Goodman air handler units
