GREE Livo Gen4 24,000 BTU Ductless Wall-Mount Indoor Head - 4LIV24HP230V1AH
brand: Gree
- SKU:
- 4LIV24HP230V1AH
- Shipping:
- Free Shipping

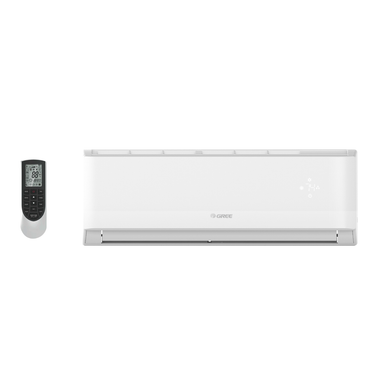

GREE Livo Gen4 24,000 BTU Ductless Wall-Mount Indoor Head - 4LIV24HP230V1AH
The GREE Livo Gen4 4LIV24HP230V1AH is a 24,000 BTU/h wall-mounted indoor unit for ductless mini-split heat pump systems. Operating on 208-230V, it delivers cooling and heating for large rooms up to approximately 1,000 sq. ft. With DC inverter technology and the Gen4 platform's refined airflow design, it provides efficient climate control for open living spaces, large bedrooms, and light commercial applications.
Indoor Unit Only
This is a wall-mount indoor head. It requires a compatible GREE outdoor unit (sold separately) such as a MULTI or single-zone Livo condenser. Refrigerant line set also required.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | GREE |
| Model Number | 4LIV24HP230V1AH |
| Series | Livo Gen4 (4LIV) |
| Product Type | Ductless Wall-Mount Indoor Head |
| System Type | Heat Pump (Cooling + Heating) |
| Nominal Capacity | 24,000 BTU/h |
| Refrigerant | R-410A |
| Voltage / Phase / Hz | 208-230V / 1-Ph / 60Hz |
| Remote Control | Wireless with LCD (included) |
| Approximate Coverage | Up to 1,000 sq. ft. |
| Line Set Size (Liquid / Gas) | 1/4" / 1/2" |
Warranty Coverage
Note: Residential applications only. Warranty terms and conditions apply.
Professional Installation Required
Ductless mini-split systems require certified HVAC technician installation including refrigerant line set connection, electrical wiring, and vacuum/charge procedures. Professional installation ensures optimal performance and full warranty protection.
Indoor Unit Only — Outdoor Condenser Required
This indoor head requires a compatible outdoor condenser and refrigerant line set to complete the system. Verify compatibility before purchasing.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
