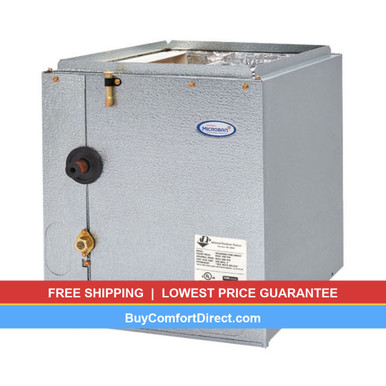

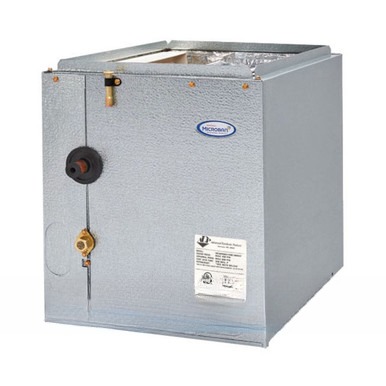

ADP 3 Ton R-410A Cased Evaporator Coil
$350.00
-
4.9 out of 5 from verified customer reviews Read reviews →Product Details
- Model Number
- PG8J936D210B1805AP
- Condition
- New
- Warranty
- 5-Year "No-Hassle" Parts Warranty
Description
The PG8J936D210B1805AP — ADP 3 Ton R-410A Cased Evaporator Coil – PG8J936D210B1805AP — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the PG8J936D210B1805AP
ADP 3 Ton R-410A Cased Evaporator Coil – PG8J936D210B1805AP
The ADP HE Series PG8J936D210B1805AP is a high-efficiency 3-ton cased evaporator coil designed for seamless integration with Carrier, Bryant, and Payne systems. Built with durable aluminum slab construction and a factory-installed non-bleed TXV for heat pump and air conditioning applications, this coil delivers reliable performance and maximum heat transfer efficiency. The left-hand cased configuration with TXV access port provides installation flexibility and easy serviceability. Features include Microban antimicrobial drain pan protection, patented HydroTEC low water retention design, and 5/8″ foil-faced cabinet insulation. This evaporator coil requires a compatible outdoor unit and furnace or air handler (sold separately) to complete your system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | ADP (Advanced Distributor Products) |
| Model Number | PG8J936D210B1805AP |
| Product Type | Cased Evaporator Coil (A-Coil) |
| Series | HE Series |
| Tonnage | 3 Tons |
| Refrigerant Type | R-410A |
| Metering Device | Non-Bleed HP-A/C TXV (Factory Installed) |
| Coil Configuration | Left-Hand Cased |
| Slab Type | Aluminum (High-Efficiency Lanced Fin) |
| Cabinet Color | P (Carrier/Bryant/Payne Match) |
| Liquid Line Size | ⅜” ODF |
| Suction Line Size | ¾” ODF |
| Dimensions (W×D×H) | 21″ × 21″ × 18.5″ |
| Drain Pan Depth | 19.5″ |
| Condensate Drain | Dual ¾” FPT |
| Shipping Weight | 35 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection. Air pressure tested at 500 PSI, leak tested with helium, and charged with dry air for guaranteed quality.
AHRI Certified & UL Listed
This evaporator coil is AHRI certified and UL/cUL listed, meeting all applicable safety and performance standards. Compatible with R-410A refrigerant systems. ISO 9001:2008 registered quality system.
PG8J936D210B1805AP: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our Clearance, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
PG8J936D210B1805AP FAQ
Does the PG8J936D210B1805AP ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 35.00 lbs |
|---|---|
| Dimensions | 21.00 × 21.00 × 19.00 in |
| System Type | Evaporator Coil |
