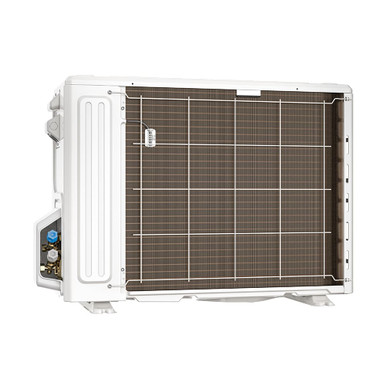

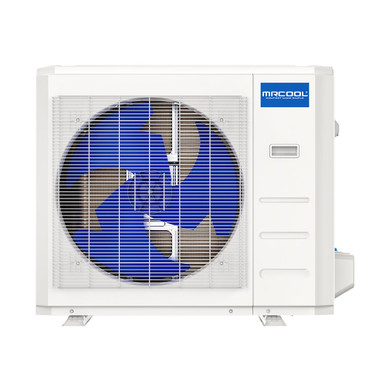

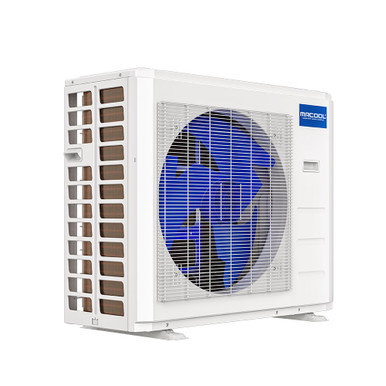

MRCOOL 12,000 BTU 23.5 SEER2 Heat Pump Condenser - DIYHH-12-HP-C-230D25-O
The MRCOOL® DIY® 12K BTU 208/230V Hyper Heat 23.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser delivers powerful, high-efficiency climate control with simple do-it-yourself installation—no special tools, training, or professional assistance required. It’s ideal for heating and cooling spaces between 350–550 sq. ft., and is compatible with both our sleek wall-mounted air handlers and the low-profile DIY® OuttaSight® Ceiling Cassette. Installation is fast and straightforward thanks to the 25-foot QuickConnect® line set, filled with environmentally-friendly R-454B refrigerant—eliminating the need for vacuuming or handling refrigerant. The included DIYPRO® cable enhances system protection, replacing traditional electrical conduit to guard against weather, pests, and yardwork damage. Enjoy flexible control with multiple options: the included remote, the SmartHVAC app for iOS and Android devices, or voice control through Amazon Alexa and Google Assistant. The corrosion-resistant Gold Fin® condenser coating is designed for durability, making it ideal for both inland and coastal environments. This system is loaded with smart features, including Auto-Restart to maintain continuity of comfort after power loss, a programmable Timer to correspond to your schedule, and the Sleep function, which increases efficiency while you sleep. For peace of mind, the unit comes standard with a 7-year compressor and 5-year parts warranty with eligibility for the MRCOOL® Care Program. Enjoy dependable, hassle-free comfort year-round with The MRCOOL® DIY® 12K BTU Hyper Heat Single Zone Mini Split Condenser.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | DIYHH-12-HP-C-230D25-O |
| Product Type | Heat Pump Condenser |
| Series | DIY Hyper Heat |
| Tonnage | 1 |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Max Coverage Area | 550 |
| SEER2 | 23.5 |
| EER2 | 12.8 |
| Refrigerant | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | White |
| Unit Dimensions | 21.81"H x 31.69"W x 12.99"D |
| Shipping Weight | 79.59 lb |
| Parts Warranty | 5 Years |
| Compressor Warranty | 7 Years |
| Warranty | 5-Years Parts |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Shipping restrictions apply in: GU;PR;VI
Warranty Coverage
5-Years Parts
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
