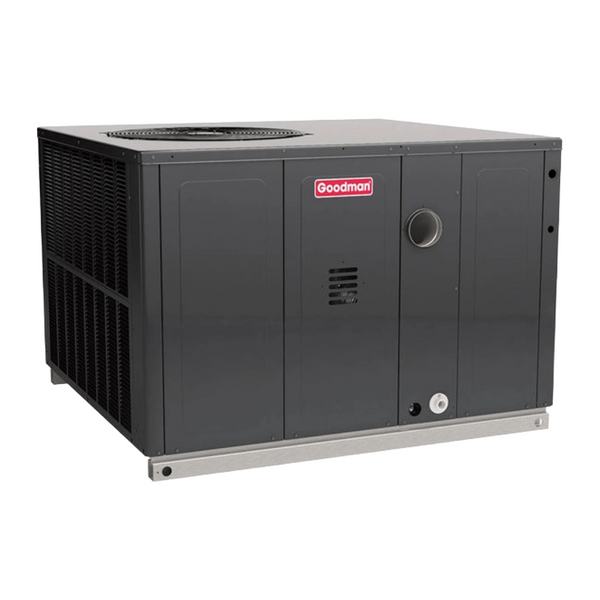

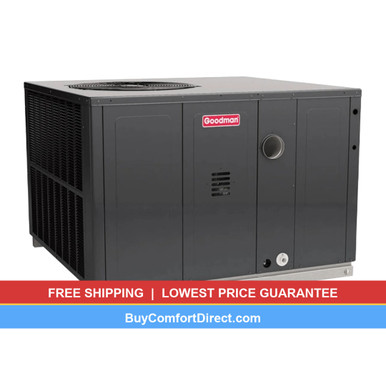

Solace 2.5 Ton 13.4 SEER2 Packaged Gas/Electric - S-GPGM33004031
brand: Solace
- SKU:
- S-GPGM33004031
- Condition:
- New
- Shipping:
- Free Shipping
Solace 2.5 Ton 13.4 SEER2 Packaged Gas/Electric - S-GPGM33004031
The Solace S-GPGM33004031 is an all-in-one 2.5 ton packaged gas/electric rated at 13.4 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets DOE efficiency requirements for Northeast-region installations; verify local eligibility outside those zones.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GPGM33004031 |
| Product Type | Packaged Unit |
| Tonnage | 2.5 Ton |
| SEER2 Rating | 13.4 |
| EER2 Rating | 10.6 |
| Refrigerant Type | R-32 |
| Cooling Capacity (BTU/h) | 28600 BTU/h |
| Sensible Capacity (BTU/h) | 22637 BTU/h |
| Heating Input (BTU/h) | 40000 BTU/h |
| Heating Output (BTU/h) | 32400 BTU/h |
| AFUE | 81 |
| Burners | 2 |
| Airflow (CFM) | 975 CFM |
| Blower Motor | ECM (1/2 HP) |
| Compressor Type | Scroll |
| Compressor Stages | 1 |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 21.2 A |
| Max Overcurrent Protection | 30 A |
| Sound Level (dBA) | 76 dBA |
| Cabinet Size | Medium |
| Duct Opening - Supply | 16" x 16" |
| Duct Opening - Return | 16" x 16" |
| Dimensions (H×W×D) | 32" x 47" x 51" |
| Shipping Weight | 410 lbs |
| Operating Weight | 380 lbs |
California Low-NOx Notice
- GPGM3 models comply with California Low NOx standards (40 ng/J NOx) but are not eligible for installation in SCAQMD, SJVAPCD, or BAAQMD.
- GPUM3 models comply with SCAQMD Rule 1111, SJVAPCD Rule 4905, and BAAQMD Rule 9-4 14 ng/J NOx emission limits.
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant - Northeast Region Only
This equipment meets Department of Energy efficiency requirements for residential HVAC installations only in Northeast U.S. climate zones. Typically not approved for installation in South, Southeast, or Southwest regions.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
