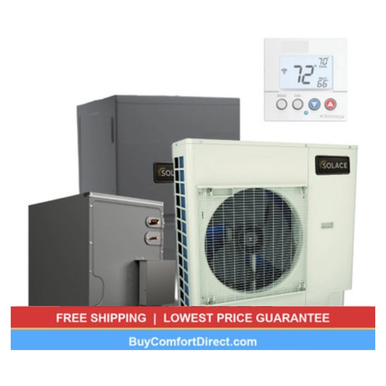

Solace 2.5 Ton 16.2 SEER2 60,000 BTU 80% AFUE AC and Furnace System – Upflow – S-GXV6SS3010
$5,824.00
-
Product Details
- Model Numbers
- S-GXV6SS3010
S-CAPEA3022B3
S-GRVT800603BN
S-GTST-CW-WH-A - Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
The Solace 2.5 Ton 16.2 SEER2 60 — Solace 2.5 Ton 16.2 SEER2 60,000 BTU 80% AFUE AC and Furnace System – Upflow – S-GXV6SS3010 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Solace 2.5 Ton 16.2 SEER2 60
SOLACE 2.5 Ton 16.2 SEER2 R-32 80% AFUE 60,000 BTU Gas Furnace Air Conditioning System (Upflow Coil)
This comprehensive Solace HVAC system combines the S-GXV6SS3010 air conditioner, S-GRVT800603BN 80% AFUE gas furnace, and S-CAPEA3022B3 evaporator coil for complete year-round comfort. Rated at 16.2 SEER2, this 2.5 ton system provides efficient cooling in summer and reliable gas heating in winter. Premium features include two-stage heating. Uses eco-friendly R-32 refrigerant and delivers outstanding performance for residential applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GXV6SS3010 |
| Product Type | Air Conditioner |
| Tonnage | 2.5 Ton |
| Cooling Capacity (BTU/h) | 28400 BTU/h |
| SEER2 Rating | 16.2 |
| Refrigerant Type | R-32 |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 22.4 A |
| Max Overcurrent Protection | 25.0 A |
| Factory Charge (oz) | 76.0 oz |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 7/8″ |
| Sound Level (dBA) | 67 dBA |
| Dimensions (H×W×D) | 27.375″ x 36.625″ x 13.75″ |
| Shipping Weight | 143.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GRVT800603BN |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 60,000 BTU |
| Output BTU/h | 48,000 BTU |
| Heating Stages | 2 |
| Blower Motor Type | 0.5 HP |
| Airflow (CFM) | 1200 CFM |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2″ FPT |
| Voltage/Phase/Frequency | 115/1/60V/1-Ph/60Hz |
| Min Circuit Ampacity | 7.6 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 17.5″ x 33.375″ x 17.5″ |
| Shipping Weight | 105.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CAPEA3022B3 |
| Product Type | Upflow Evaporator Coil |
| Tonnage | 2.5 Ton |
| Nominal Cooling (BTU/h) | 30000 BTU/h |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Coil Configuration | Cased Upflow |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 7/8″ |
| Drain Connection Size | 3/4″ PVC |
| Dimensions (W×D×H) | 17.5″ x 21.0″ x 22.0″ |
| Shipping Weight | 48.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GTST-CW-WH-A |
| Product Type | Thermostat Controller |
| Description | WiFi Smart Thermostat |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Solace 2.5 Ton 16.2 SEER2 60: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 2.5 Ton or the Solace catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Solace 2.5 Ton 16.2 SEER2 60 FAQ
Does the Solace 2.5 Ton 16.2 SEER2 60 ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | AC + Gas Furnace System |
| Brand | Solace |
| Tonnage | 2.5 Ton |
| SEER2 | 16.2 |
| AFUE | 80% |
| Heating BTU | 60,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Upflow |
| Voltage | 115V |
