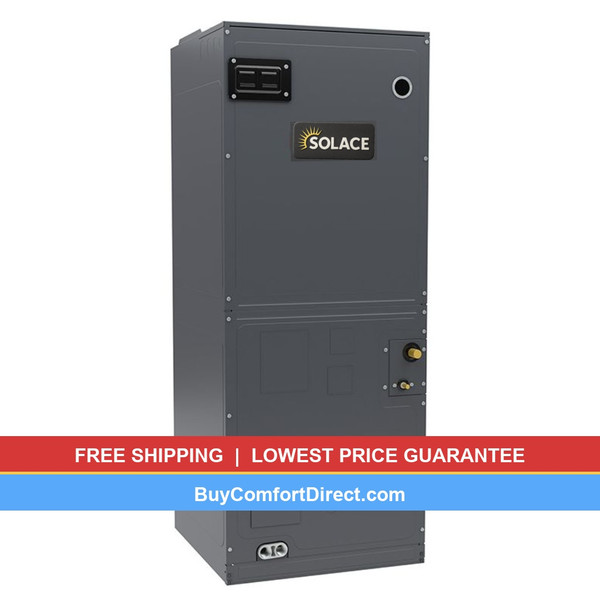

Solace 2 Ton Air Handler – S-AHVE24BP1300
$2,062.00
-
Product Details
- Model Number
- S-AHVE24BP1300
- Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
* {
box-sizing: border-box;
margin: 0;
padding: 0;
}
#product-container {
font-family: ‘Segoe UI’, Tahoma, Geneva, Verdana, sans-serif;
max-width: 1200px;
margin: 0 auto;
padding: 20px;
color: #000000;
background: #fff;
}
#product-container h1 {
font-size: 2.5em;
color: #FFBE00;
margin-bottom: 10px;
padding-bottom: 15px;
border-bottom: 3px solid #FFBE00;
font-weight: 700;
}
#product-container h2 {
font-size: 1.8em;
color: #FFBE00;
margin: 30px 0 15px 0;
font-weight: 600;
}
#product-container h3 {
font-size: 1.4em;
color: #000000;
margin: 25px 0 12px 0;
font-weight: 600;
}
#product-container p {
line-height: 1.8;
margin-bottom: 15px;
font-size: 1.05em;
color: #000000;
}
.intro-section {
background: linear-gradient(135deg, #f8f9fa 0%, #e9ecef 100%);
padding: 25px;
border-radius: 8px;
margin: 25px 0;
border-left: 5px solid #FFBE00;
}
.specs-table {
width: 100%;
border-collapse: collapse;
margin: 20px 0;
box-shadow: 0 2px 8px rgba(0,0,0,0.1);
border-radius: 8px;
overflow: hidden;
}
.specs-table thead {
background: linear-gradient(135deg, #FFBE00 0%, #CC9800 100%);
color: white;
}
.specs-table th {
padding: 15px;
text-align: left;
font-weight: 600;
font-size: 1.1em;
}
.specs-table td {
padding: 12px 15px;
border-bottom: 1px solid #e0e0e0;
}
.specs-table tbody tr {
background: #fff;
transition: all 0.3s ease;
}
.specs-table tbody tr:nth-child(even) {
background: #f8f9fa;
}
.specs-table tbody tr:hover {
background: linear-gradient(90deg, #FFBE00 0%, #CC9800 100%) !important;
color: white;
transform: scale(1.01);
box-shadow: 0 4px 12px rgba(255, 190, 0, 0.3);
}
.specs-table tbody tr:hover td {
color: white;
}
.warranty-section {
background: linear-gradient(135deg, #F8F9FA 0%, #e9ecef 100%);
padding: 50px 30px;
border-radius: 15px;
margin: 50px 0;
}
.warranty-section h2 {
color: #FFBE00;
text-align: center;
margin-bottom: 40px;
font-size: 28px;
}
.warranty-grid {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
gap: 30px;
max-width: 800px;
margin: 0 auto;
}
.warranty-card {
background: white;
padding: 30px;
border-radius: 12px;
text-align: center;
border: 2px solid rgba(255, 190, 0, 0.3);
transition: all 0.3s ease;
}
.warranty-card:hover {
background: rgba(255, 190, 0, 0.05);
border-color: #FFBE00;
transform: translateY(-5px);
}
.warranty-years {
font-size: 48px;
font-weight: 700;
color: #FFBE00;
}
.warranty-label {
color: #333;
font-size: 14px;
font-weight: 600;
}
.cta-section {
background: linear-gradient(135deg, #F8F9FA 0%, #e9ecef 100%);
padding: 60px 30px;
border-radius: 15px;
margin-top: 50px;
box-shadow: 0 10px 40px rgba(0,0,0,0.2);
}
.cta-content {
text-align: center;
margin-bottom: 40px;
}
.cta-section h2 {
color: #FFBE00;
margin: 0 0 15px 0;
font-size: 28px;
font-weight: 700;
}
.cta-section p {
color: #333;
margin: 0;
font-size: 16px;
max-width: 700px;
margin-left: auto;
margin-right: auto;
line-height: 1.6;
}
.compliance-badge {
background: rgba(255, 190, 0, 0.05);
border: 2px solid #FFBE00;
border-radius: 12px;
padding: 25px 30px;
display: flex;
align-items: center;
gap: 20px;
max-width: 700px;
margin: 0 auto;
transition: all 0.3s ease;
}
.compliance-badge:hover {
background: #f8f9fa;
transform: translateY(-2px);
box-shadow: 0 8px 20px rgba(255, 190, 0, 0.3);
}
.badge-icon {
font-size: 32px;
color: #FFBE00;
font-weight: 700;
background: rgba(255, 190, 0, 0.3);
width: 50px;
height: 50px;
border-radius: 50%;
display: flex;
align-items: center;
justify-content: center;
flex-shrink: 0;
}
.badge-content {
text-align: left;
}
.badge-content h3 {
color: #FFBE00;
margin: 0 0 8px 0;
font-size: 18px;
font-weight: 700;
}
.badge-content p {
color: #555;
margin: 0;
font-size: 14px;
line-height: 1.5;
}
.tab-container {
margin: 30px 0;
}
.tab-buttons {
display: flex;
gap: 10px;
margin-bottom: 20px;
flex-wrap: wrap;
}
.tab-button {
padding: 12px 24px;
background: #f8f9fa;
border: 2px solid #ddd;
border-radius: 8px;
cursor: pointer;
font-size: 1em;
font-weight: 600;
color: #333;
transition: all 0.3s ease;
}
.tab-button:hover {
background: #e9ecef;
border-color: #FFBE00;
}
.tab-button.active {
background: linear-gradient(135deg, #FFBE00 0%, #CC9800 100%);
color: white;
border-color: #FFBE00;
}
.tab-content {
display: none;
}
.tab-content.active {
display: block;
}
@media (max-width: 768px) {
#product-container {
padding: 15px;
}
#product-container h1 {
font-size: 1.8em;
}
#product-container h2 {
font-size: 1.4em;
}
.specs-table {
font-size: 0.9em;
}
.specs-table th,
.specs-table td {
padding: 10px;
}
.compliance-badge {
flex-direction: column;
text-align: center;
padding: 20px;
}
.badge-content {
text-align: center;
}
.cta-section {
padding: 40px 20px;
}
.tab-buttons {
flex-direction: column;
}
.tab-button {
width: 100%;
}
}

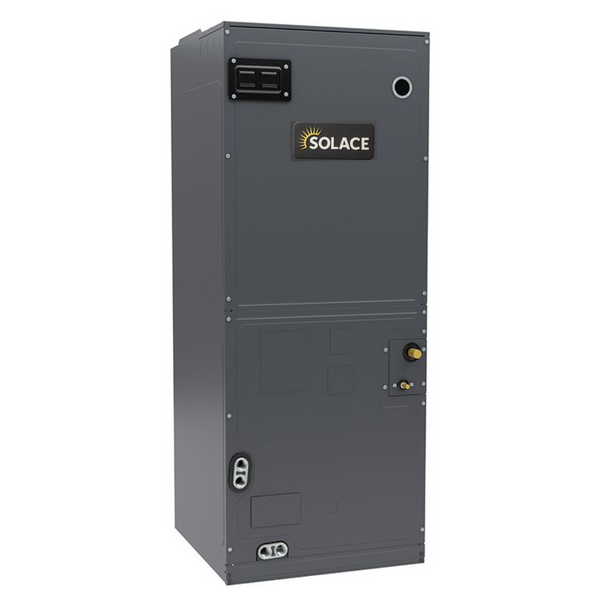

Solace 2 Ton R-32 Air Handler – S-AHVE24BP1300
The Solace S-AHVE24BP1300 is a high-efficiency multi-position air handler designed for use with R-32 refrigerant systems. Featuring a Variable Speed ECM blower motor, this unit delivers reliable airflow for consistent comfort. Premium features include variable-speed ECM airflow. The multi-position cabinet design allows for flexible installation in upflow, downflow, or horizontal configurations. This air handler requires a compatible outdoor condensing unit (sold separately) to complete your heating and cooling system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-AHVE24BP1300 |
| Product Type | Air Handler |
| Tonnage | 2 Ton |
| Airflow (CFM) | 800 CFM |
| Blower Motor Type | Variable Speed ECM |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Drain Connection | 3/4″ PVC |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 3/4″ |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 4.9 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 16.375″ x 17.5″ x 12.0″ |
| Shipping Weight | 115.0 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Where the S-AHVE24BP1300 fits. The S-AHVE24BP1300 is Solace’s variable-speed R-32 air handler in the 2-ton class — the indoor half that lets Solace’s variable-speed outdoor units (S-GXV6, S-GZV6, S-GZV7) reach their top efficiency ratings, with an ECM blower that ramps smoothly for quieter operation and better humidity control than a single-speed handler. Pair it with a 2-ton Solace variable-speed condenser or heat pump for a fully matched system. Confirm the match with the free sizing tool, and see all 2-ton Solace air handlers →
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | Air Handler |
| Brand | Solace |
| Tonnage | 2 Ton |
| Refrigerant | R-32 |
| Blower Motor | Variable Speed ECM |
| Voltage | 208/230V |
