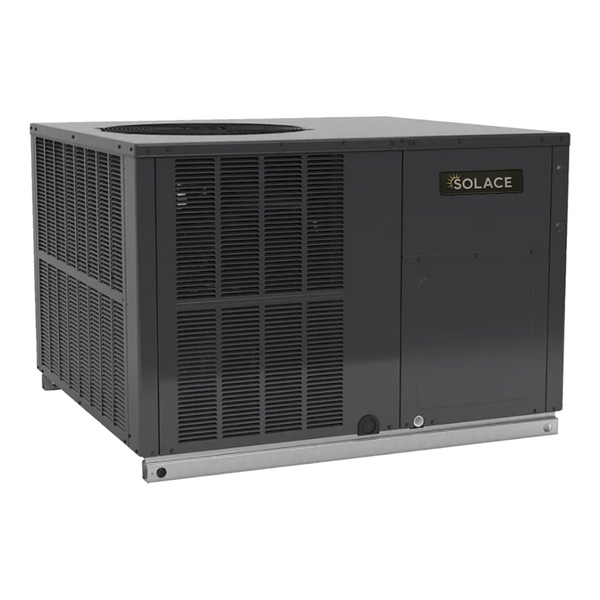

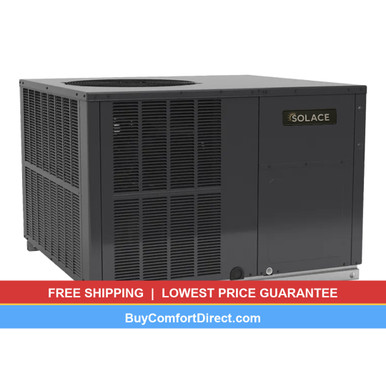

Solace 3 Ton 13.4 SEER2 Packaged Heat Pump – S-GPHM33631
$4,722.00
-
Product Details
- Model Number
- S-GPHM33631
- Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
The S-GPHM33631 — Solace 3 Ton 13.4 SEER2 Packaged Heat Pump – S-GPHM33631 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the S-GPHM33631
Solace 3 Ton 13.4 SEER2 Packaged Heat Pump – S-GPHM33631
The Solace S-GPHM33631 is an all-in-one 3 ton packaged heat pump rated at 13.4 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets DOE efficiency requirements for Northeast-region installations; verify local eligibility outside those zones. Compatible with optional electric heat kits for auxiliary heating needs (sold separately).
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GPHM33631 |
| Product Type | Packaged Unit |
| Tonnage | 3 Ton |
| SEER2 Rating | 13.4 |
| EER2 Rating | 10.6 |
| HSPF2 Rating | 6.7 |
| Refrigerant Type | R-32 |
| Cooling Capacity (BTU/h) | 33400 BTU/h |
| Sensible Capacity (BTU/h) | 25718 BTU/h |
| Heating Capacity @47°F (BTU/h) | 31400 BTU/h |
| Heating Capacity @17°F (BTU/h) | 16800 BTU/h |
| COP @47°F | 3.62 |
| COP @17°F | 2.2 |
| Airflow (CFM) | 1150 CFM |
| Blower Motor | ECM (5 HP) |
| Compressor Type | Scroll |
| Factory Charge (oz) | 96 oz |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 25.76 A |
| Max Overcurrent Protection | 40 A |
| Sound Level (dBA) | 80 dBA |
| Cabinet Size | Medium |
| Duct Opening – Supply | 16″ x 16″ |
| Duct Opening – Return | 16″ x 16″ |
| Dimensions (H×W×D) | 47″ x 51″ x 32″ |
| Shipping Weight | 420 lbs |
| Operating Weight | 385 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant – Northeast Region Only
This equipment meets Department of Energy efficiency requirements for residential HVAC installations only in Northeast U.S. climate zones. Typically not approved for installation in South, Southeast, or Southwest regions.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
S-GPHM33631: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR central air conditioner guide. Browse the rest of our 3 Ton Package Units or the Solace catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
S-GPHM33631 FAQ
Does the S-GPHM33631 ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | Package Unit |
| Brand | Solace |
| Tonnage | 3 Ton |
| SEER2 | 13.4 |
| HSPF2 | 6.7 |
| Refrigerant | R-32 |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
