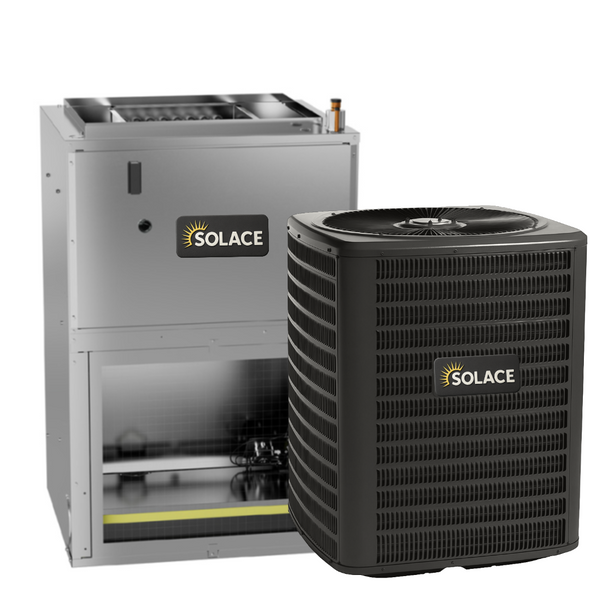

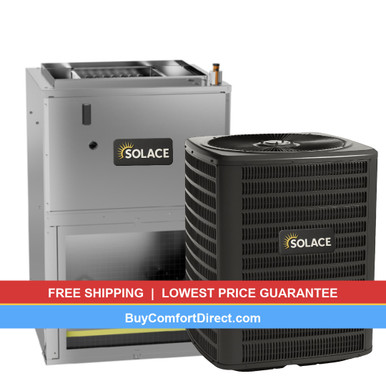

SOLACE 3 Ton 14.3 SEER2 R-32 Air Conditioning System with Wall-Mounted Air Handler
brand: Solace
- SKU:
- S-GLXS4BA3610,S-AWST36LU1308A
- Shipping:
- Calculated at Checkout
SOLACE 3 Ton 14.3 SEER2 R-32 Air Conditioning System with Wall-Mounted Air Handler
Experience premium cooling comfort with this Solace 3-ton 14.3 SEER2 air conditioning system. This complete matched system combines a high-efficiency air conditioner outdoor unit with a space-saving wall-mounted air handler. Designed for reliable cooling performance, this system delivers exceptional energy efficiency, quiet operation, and dependable comfort with R-32 refrigerant.
Technical Specifications
Air Conditioner — S-GLXS4BA3610 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Tonnage | 3 Ton |
| Refrigerant | R-32 |
| SKU/Model No | S-GLXS4BA3610 |
| Product Type | Split System Air Conditioner |
| Cooling Capacity | 36,000 BTU/h |
| SEER2 Rating | Up to 14.3 |
| Compressor Type | Scroll |
| Voltage | 208/230-1V / 1Ph / 60Hz |
| Min Circuit Ampacity | 17.8 A |
| Max Overcurrent Protection | 30 A |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |
| Refrigerant Charge | 69 oz |
| Dimensions (H×W×D) | 39.5" × 29" × 29" |
| Weight | 180 lbs |
| Sound Level | 67 dBA |
Air Handler — S-AWST36LU1308A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Tonnage | 3 Ton |
| SKU/Model No | S-AWST36LU1308A |
| Product Type | Wall-Mounted Air Handler |
| Motor Type | Multi-Speed ECM |
| Nominal Cooling Capacity | 36,000 BTU/h |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 26.4 A |
| Max Overcurrent Device | 30.0 A |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ⅞" |
| Metering Device | TXV (Internal) |
| Cabinet Configuration | Wall-Mounted |
| Dimensions (H×W×D) | 36.0" × 24.0" × 19.875" |
| Weight | 109 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
