Solace 3 Ton 15.2 SEER2 Packaged Heat Pump

Solace 3 Ton 15.2 SEER2 Packaged Heat Pump - S-GPHH53631

$5,408.00 $4,596.80

(You save $811.20)

Description
Warranty Information

Solace 3 Ton 15.2 SEER2 Packaged Heat Pump - S-GPHH53631

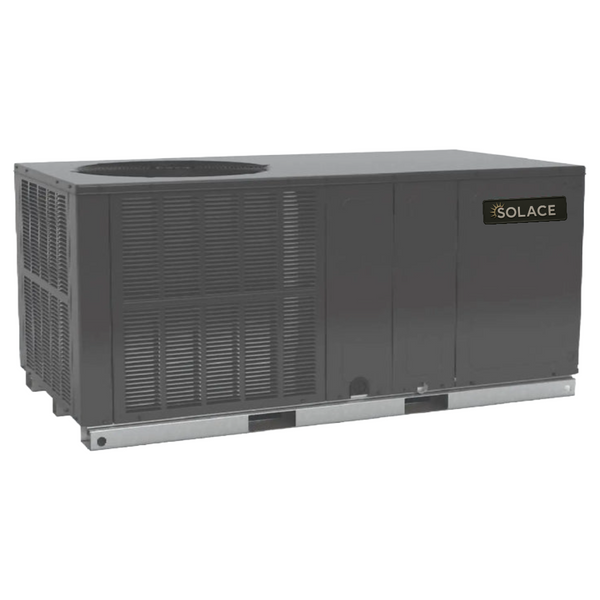

The Solace S-GPHH53631 is an all-in-one 3 ton packaged heat pump rated at 15.2 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets modern DOE efficiency requirements across U.S. climate zones. Compatible with optional electric heat kits for auxiliary heating needs (sold separately).

Technical Specifications

Specification	Value
Manufacturer	Solace
Model Number	S-GPHH53631
Product Type	Packaged Unit
Tonnage	3 Ton
SEER2 Rating	15.2
EER2 Rating	11.2
HSPF2 Rating	7.0
Refrigerant Type	R-32
Cooling Capacity (BTU/h)	32600 BTU/h
Sensible Capacity (BTU/h)	26080 BTU/h
Heating Capacity @47°F (BTU/h)	30000 BTU/h
Heating Capacity @17°F (BTU/h)	18600 BTU/h
COP @47°F	3.42
COP @17°F	2.32
Airflow (CFM)	1180 CFM
Blower Motor	ECM (0.5 HP)
Compressor Type	Scroll
Factory Charge (oz)	144 oz
Voltage/Phase/Frequency	208-230V/1-Ph/60Hz
Min Circuit Ampacity	23.36 A
Max Overcurrent Protection	35 A
Sound Level (dBA)	78 dBA
Cabinet Size	Medium
Duct Opening - Supply	14.0" x 14.0"
Duct Opening - Return	14.0" x 24.0"
Dimensions (H×W×D)	35.0" x 66.0" x 34.0"
Shipping Weight	400 lbs
Operating Weight	390 lbs

Warranty Coverage

Year Parts Warranty

Year Compressor Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

10-Year Limited Parts Warranty
