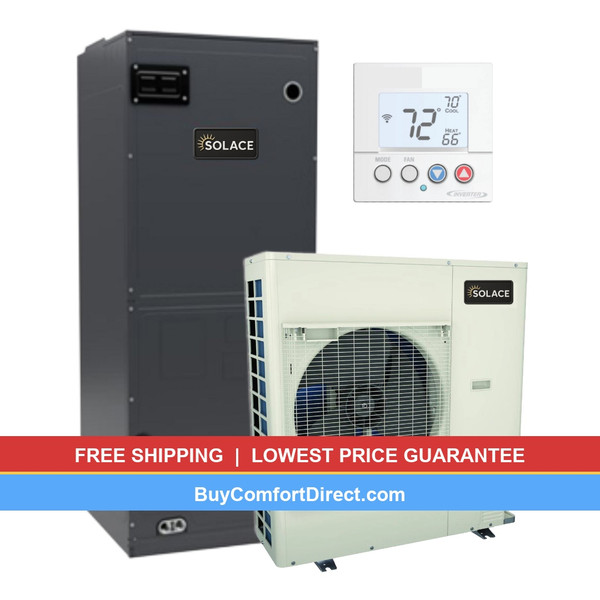

Solace 3 Ton 16.2 SEER2 AC System with Air Handler – Multi-Position – S-GXV6SS3610
$5,332.00
-
Product Details
- Model Numbers
- S-GXV6SS3610
S-AHVE36CP1300
S-GTST-CW-WH-A - Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
The Solace 3 Ton 16.2 SEER2 AC System with Air Handler — Solace 3 Ton 16.2 SEER2 AC System with Air Handler – Multi-Position – S-GXV6SS3610 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Solace 3 Ton 16.2 SEER2 AC System with Air Handler

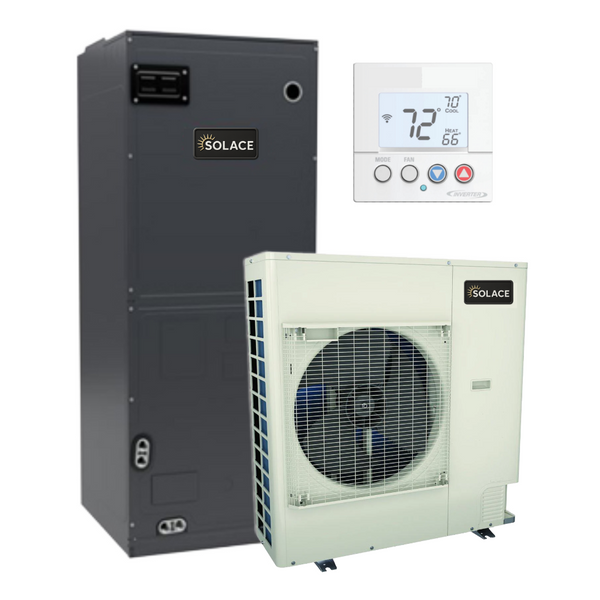

SOLACE 3 Ton 16.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler
This complete Solace air conditioning system pairs the S-GXV6SS3610 outdoor unit with the S-AHVE36CP1300 air handler for efficient cooling performance. Rated at 16.2 SEER2, this 3 ton system uses eco-friendly R-32 refrigerant and delivers reliable comfort for residential applications. Premium features include variable-speed ECM airflow.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GXV6SS3610 |
| Product Type | Air Conditioner |
| Tonnage | 3 Ton |
| Cooling Capacity (BTU/h) | 34200 BTU/h |
| SEER2 Rating | 16.2 |
| Refrigerant Type | R-32 |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 22.4 A |
| Max Overcurrent Protection | 25.0 A |
| Factory Charge (oz) | 83.0 oz |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 7/8″ |
| Sound Level (dBA) | 68 dBA |
| Dimensions (H×W×D) | 27.375″ x 36.625″ x 13.75″ |
| Shipping Weight | 148.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-AHVE36CP1300 |
| Product Type | Multi-Position Air Handler |
| Tonnage | 3 Ton |
| Airflow (CFM) | 1200 CFM |
| Blower Motor Type | Variable Speed ECM |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Drain Connection | 3/4″ PVC |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 7/8″ |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 6.5 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 19.875″ x 21.0″ x 18.625″ |
| Shipping Weight | 140.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GTST-CW-WH-A |
| Product Type | Thermostat Controller |
| Description | WiFi Smart Thermostat |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Solace 3 Ton 16.2 SEER2 AC System with Air Handler: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 3 Ton or the Solace catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Solace 3 Ton 16.2 SEER2 AC System with Air Handler FAQ
Does the Solace 3 Ton 16.2 SEER2 AC System with Air Handler ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | AC + Air Handler System |
| Brand | Solace |
| Tonnage | 3 Ton |
| SEER2 | 16.2 |
| Refrigerant | R-32 |
| Airflow Direction | Multi-Position |
| Blower Motor | Variable Speed ECM |
| Voltage | 208/230V |
