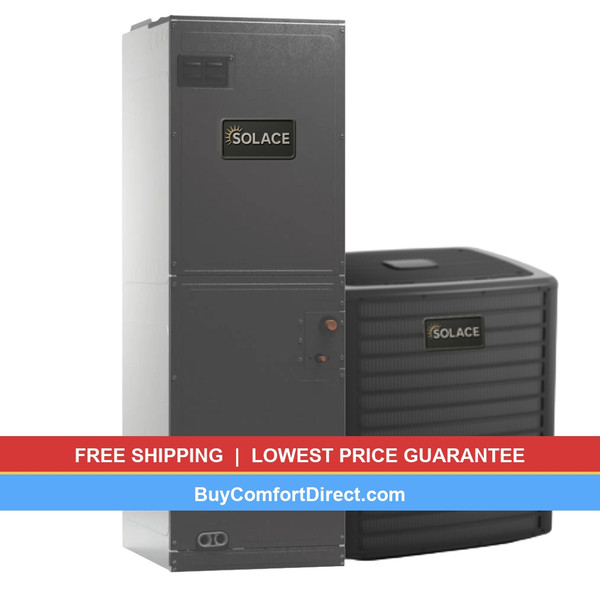

Solace 3 Ton 17.2 SEER2 AC System with Air Handler – Multi-Position – S-GLXT7CA3610

$5,814.00

Condition: NewFree Shipping10-Year Limited Parts Warranty

-

Complete Your System Optional add-ons — each ships with your order as its own item
Line SetInsulated copper line set sized for this system (3/4" suction / 3/8" liquid)
Line Set CoverHides and protects the line set on an exterior wall
Thermostat
Condenser PadLevel, UV-stable plastic pad for the outdoor unit
Surge ProtectorProtects the compressor and control board from power surges
Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip
Condensate Safety SwitchShuts the system off before a clogged drain overflows
Condensate PumpFor installs without a gravity drain
Air Filter
Electric Heat KitBackup / supplemental electric heat strip for the air handler
Your system total: $5,814.00
Rather talk to a person?
We will confirm the match for your home, quote it, and take your order by phone.
Call to Order: (877) 843-4822

Product Details

Model Numbers
S-GLXT7CA3610
S-AMVT36BP1300
Brand
Solace
Condition
New
Warranty
10-Year Limited Parts Warranty

Description

The Solace 3 Ton 17.2 SEER2 AC System with Air Handler — Solace 3 Ton 17.2 SEER2 AC System with Air Handler – Multi-Position – S-GLXT7CA3610 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.

About the Solace 3 Ton 17.2 SEER2 AC System with Air Handler

SOLACE 3 Ton 17.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler

SOLACE 3 Ton 17.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler

This complete Solace air conditioning system pairs the S-GLXT7CA3610 outdoor unit with the S-AMVT36BP1300 air handler for efficient cooling performance. Rated at 17.2 SEER2, this 3 ton system uses eco-friendly R-32 refrigerant and delivers reliable comfort for residential applications.

Technical Specifications

Specification Value
Manufacturer Solace
Model Number S-GLXT7CA3610
Product Type Air Conditioner
Tonnage 3 Ton
Cooling Capacity (BTU/h) 36000 BTU/h
SEER2 Rating 17.2
Refrigerant Type R-32
Compressor Type Two-Stage Scroll
Voltage/Phase/Frequency 208/230V/1-Ph/60Hz
Min Circuit Ampacity 20.8 A
Max Overcurrent Protection 35.0 A
Factory Charge (oz) 92.0 oz
Liquid Line Size 3/8″
Suction Line Size 7/8″
Sound Level (dBA) 70 dBA
Dimensions (H×W×D) 27.4″ x 36.6″ x 13.8″
Shipping Weight 221.0 lbs
Specification Value
Manufacturer Solace
Model Number S-AMVT36BP1300
Product Type Multi-Position Air Handler
Tonnage 3 Ton
Airflow (CFM) 1200 CFM
Blower Motor Type ECM
Refrigerant Type R-32
Metering Device TXV
Drain Connection 3/4″
Liquid Line Size 3/8″
Suction Line Size 3/4″
Voltage/Phase/Frequency 208/240V/1-Ph/60Hz
Min Circuit Ampacity 6.5 A
Max Overcurrent Protection 15.0 A
Dimensions (H×W×D) 42.0″ x 17.5″ x 21.0″
Shipping Weight 134.0 lbs

Warranty Coverage

10
Year Parts Warranty

10
Year Compressor Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Solace 3 Ton 17.2 SEER2 AC System with Air Handler: fitment and resources

Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 3 Ton or the Solace catalog, and see what customers say on our reviews page.

Ordering and delivery

In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.

Solace 3 Ton 17.2 SEER2 AC System with Air Handler FAQ

Does the Solace 3 Ton 17.2 SEER2 AC System with Air Handler ship free?

Yes on orders over $99 — most orders that include it qualify.

How do I know it fits my system?

Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.

Additional information

Weight 350.00 lbs
Dimensions 48.00 × 48.00 × 60.00 in
System Type

AC + Air Handler System

Brand

Solace

Tonnage

3 Ton

SEER2

17.2

Refrigerant

R-32

Stages

Two Stage

Airflow Direction

Multi-Position

Blower Motor

Multi-Speed ECM

Voltage

208/230V
