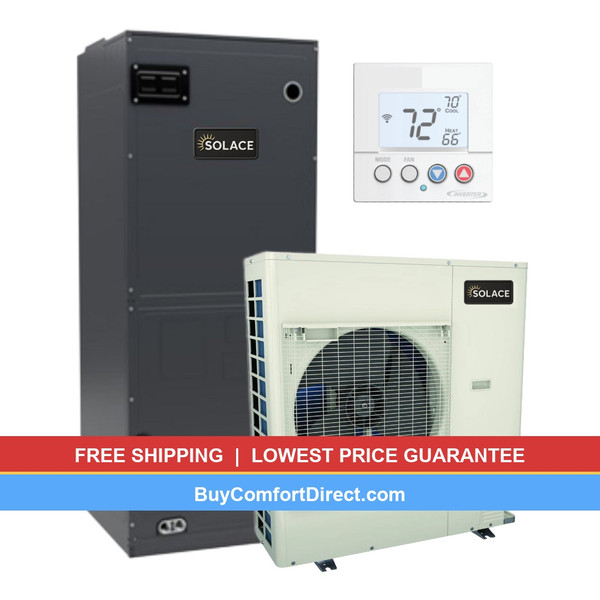

Solace 4 Ton 16.2 SEER2 AC System with Air Handler – Multi-Position – S-GXV6SS4810

$5,875.00

Condition: NewFree Shipping10-Year Limited Parts Warranty

-

Complete Your System Optional add-ons — each ships with your order as its own item
Line SetInsulated copper line set sized for this system (7/8" suction / 3/8" liquid)
Line Set CoverHides and protects the line set on an exterior wall
Condenser PadLevel, UV-stable plastic pad for the outdoor unit
Surge ProtectorProtects the compressor and control board from power surges
Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip
Condensate Safety SwitchShuts the system off before a clogged drain overflows
Condensate PumpFor installs without a gravity drain
Air Filter
Electric Heat KitBackup / supplemental electric heat strip for the air handler
Your system total: $5,875.00
Rather talk to a person?
We will confirm the match for your home, quote it, and take your order by phone.
Call to Order: (877) 843-4822

Product Details

Model Numbers
S-GXV6SS4810
S-AHVE48CP1300
S-GTST-CW-WH-A
Brand
Solace
Condition
New
Warranty
10-Year Limited Parts Warranty

Description

The Solace 4 Ton 16.2 SEER2 AC System with Air Handler — Solace 4 Ton 16.2 SEER2 AC System with Air Handler – Multi-Position – S-GXV6SS4810 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.

About the Solace 4 Ton 16.2 SEER2 AC System with Air Handler

SOLACE 4 Ton 16.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler

SOLACE 4 Ton 16.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler

This complete Solace air conditioning system pairs the S-GXV6SS4810 outdoor unit with the S-AHVE48CP1300 air handler for efficient cooling performance. Rated at 16.2 SEER2, this 4 ton system uses eco-friendly R-32 refrigerant and delivers reliable comfort for residential applications. Premium features include variable-speed ECM airflow.

Technical Specifications

Specification Value
Manufacturer Solace
Model Number S-GXV6SS4810
Product Type Air Conditioner
Tonnage 4 Ton
Cooling Capacity (BTU/h) 45500 BTU/h
SEER2 Rating 16.2
Refrigerant Type R-32
Compressor Type Swing
Voltage/Phase/Frequency 208/230V/1-Ph/60Hz
Min Circuit Ampacity 31.8 A
Max Overcurrent Protection 35.0 A
Factory Charge (oz) 100.0 oz
Liquid Line Size 3/8″
Suction Line Size 1-1/8″
Sound Level (dBA) 72 dBA
Dimensions (H×W×D) 39.0″ x 37.0″ x 12.625″
Shipping Weight 183.0 lbs
Specification Value
Manufacturer Solace
Model Number S-AHVE48CP1300
Product Type Multi-Position Air Handler
Tonnage 4 Ton
Airflow (CFM) 1600 CFM
Blower Motor Type Variable Speed ECM
Refrigerant Type R-32
Metering Device TXV
Drain Connection 3/4″ PVC
Liquid Line Size 3/8″
Suction Line Size 7/8″
Voltage/Phase/Frequency 208/230V/1-Ph/60Hz
Min Circuit Ampacity 6.5 A
Max Overcurrent Protection 15.0 A
Dimensions (H×W×D) 58.0″ x 21.0″ x 26.0″
Shipping Weight 148.0 lbs
Specification Value
Manufacturer Solace
Model Number S-GTST-CW-WH-A
Product Type Thermostat Controller
Description WiFi Smart Thermostat

Warranty Coverage

10
Year Parts Warranty

10
Year Compressor Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Solace 4 Ton 16.2 SEER2 AC System with Air Handler: fitment and resources

Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 4 Ton or the Solace catalog, and see what customers say on our reviews page.

Ordering and delivery

In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.

Solace 4 Ton 16.2 SEER2 AC System with Air Handler FAQ

Does the Solace 4 Ton 16.2 SEER2 AC System with Air Handler ship free?

Yes on orders over $99 — most orders that include it qualify.

How do I know it fits my system?

Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.

Additional information

Weight 350.00 lbs
Dimensions 48.00 × 48.00 × 60.00 in
System Type

AC + Air Handler System

Brand

Solace

Tonnage

4 Ton

SEER2

16.2

Refrigerant

R-32

Airflow Direction

Multi-Position

Blower Motor

Variable Speed ECM

Voltage

208/230V
