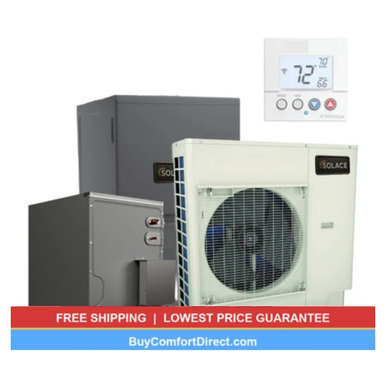

Solace 4 Ton 17.5 SEER2 80,000 BTU 80% AFUE Dual Fuel System - Horizontal
See all Solace 4 Ton Dual Fuel Systems →
Original price was: $8,320.00.$6,489.60Current price is: $6,489.60.
-
4.9 out of 5 from verified customer reviews Read reviews →Product Details
- Model Numbers
- S-GSZV7SA4810
S-CHPEA6030C3
S-GRVT800804CN
S-GTST-CW-WH-A - Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
The Solace 4 Ton 17.5 SEER2 80 — Solace 4 Ton 17.5 SEER2 80,000 BTU 80% AFUE Dual Fuel System – Horizontal – S-GSZV7SA4810 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Solace 4 Ton 17.5 SEER2 80
SOLACE 4 Ton 17.5 SEER2 R-32 80% AFUE 80,000 BTU Dual Fuel System (Horizontal Coil)
This comprehensive Solace HVAC system combines the S-GSZV7SA4810 heat pump, S-GRVT800804CN 80% AFUE gas furnace, and S-CHPEA6030C3 evaporator coil for complete year-round comfort. Rated at 17.5 SEER2, this 4 ton system provides efficient cooling in summer and dual heating options – heat pump operation for moderate weather and gas furnace heating for extreme cold. Premium features include two-stage heating. Uses eco-friendly R-32 refrigerant for optimal performance.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GSZV7SA4810 |
| Product Type | Heat Pump |
| Tonnage | 4 Ton |
| Cooling Capacity (BTU/h) | 46500 BTU/h |
| Heating Capacity (BTU/h) | 47500 BTU/h |
| SEER2 Rating | 17.5 |
| Low Ambient Cooling | 0°F |
| Defrost Type | Demand |
| Refrigerant Type | R-32 |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37.5 A |
| Max Overcurrent Protection | 40.0 A |
| Factory Charge (oz) | 118.0 oz |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 1-1/8″ |
| Sound Level (dBA) | 72 dBA |
| Dimensions (H×W×D) | 39.0″ x 37.0″ x 12.625″ |
| Shipping Weight | 198.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GRVT800804CN |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 80,000 BTU |
| Output BTU/h | 64,000 BTU |
| Heating Stages | 2 |
| Blower Motor Type | 0.5 HP |
| Airflow (CFM) | 1600 CFM |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2″ FPT |
| Voltage/Phase/Frequency | 115/1/60V/1-Ph/60Hz |
| Min Circuit Ampacity | 7.6 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.375″ x 21.0″ x 28.0″ |
| Shipping Weight | 118.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CHPEA6030C3 |
| Product Type | Horizontal Evaporator Coil |
| Tonnage | 5 Ton |
| Nominal Cooling (BTU/h) | 60000 BTU/h |
| Refrigerant Type | R-32 |
| Metering Device | EEV |
| Coil Configuration | Cased Horizontal |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 1-1/8″ |
| Drain Connection Size | 3/4″ PVC |
| Dimensions (W×D×H) | 30.0″ x 21.0″ x 24.5″ |
| Shipping Weight | 78.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GTST-CW-WH-A |
| Product Type | Thermostat |
| Description | WiFi Smart Thermostat |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Solace 4 Ton 17.5 SEER2 80: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 4 Ton or the Solace catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Solace 4 Ton 17.5 SEER2 80 FAQ
Does the Solace 4 Ton 17.5 SEER2 80 ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | Dual Fuel System |
| Brand | Solace |
| Tonnage | 4 Ton |
| SEER2 | 17.5 |
| AFUE | 80% |
| Heating BTU | 80,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Horizontal |
| Voltage | 115V |
