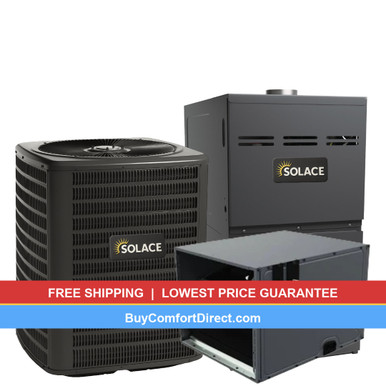

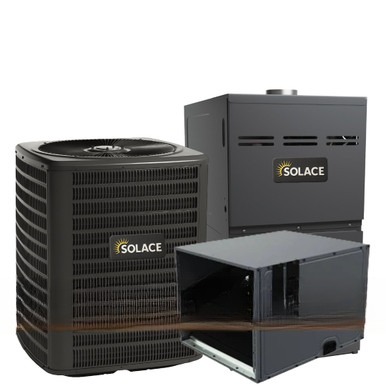

Solace 5 Ton 14.3 SEER2 100,000 BTU 80% AFUE Dual Fuel System - Horizontal
See all Solace 5 Ton Dual Fuel Systems →
Original price was: $7,066.00.$5,511.48Current price is: $5,511.48.
-
4.9 out of 5 from verified customer reviews Read reviews →Product Details
- Model Numbers
- S-GLZS4BA6010
S-GR9S801005CNA
S-CHPTA6030D3 - Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
The Solace 5 Ton 14.3 SEER2 100 — Solace 5 Ton 14.3 SEER2 100,000 BTU 80% AFUE Dual Fuel System – Horizontal – S-GLZS4BA6010 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Solace 5 Ton 14.3 SEER2 100
SOLACE 5 Ton 14.3 SEER2 R-32 80% AFUE Dual Fuel System (Horizontal Coil)
Experience ultimate year-round comfort with this complete Solace 5-ton dual fuel HVAC system (Horizontal Coil). This advanced matched system combines a high-efficiency 14.3 SEER2 heat pump, a 80% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal evaporator coil with factory-installed TXV. The dual fuel configuration automatically switches between electric heat pump and gas furnace operation to optimize efficiency and comfort. Designed for exceptional year-round heating and cooling performance, this system delivers outstanding energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Heat Pump — S-GLZS4BA6010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLZS4BA6010 |
| Product Type | Heat Pump Condenser |
| Tonnage | 5 Ton |
| Cooling Capacity | 60,000 BTU/h |
| Heating Capacity (47°F) | 60,000 BTU/h |
| SEER2 Rating | 14.3 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 194 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 31.1 A |
| Max Overcurrent Protection | 50 A |
| Sound Level | 75 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | 1⅛” |
| Dimensions (W×D×H) | 35″ × 35″ × 41.75″ |
| Shipping Weight | 300 lbs |
Gas Furnace — S-GR9S801005CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GR9S801005CNA |
| Product Type | Gas Furnace |
| BTU Input | 100,000 BTU/h |
| BTU Output | 80,000 BTU/h |
| AFUE | 80% |
| Heating Stages | Single Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 115/1/60V-1-60Hz |
| Min Circuit Ampacity | 11.3 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0″ × 19.5″ × 33.375″ |
| Shipping Weight | 132 lbs |
Evaporator Coil — S-CHPTA6030D3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CHPTA6030D3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 5 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | 1⅛” |
| Dimensions (W×D×H) | 30.0″ × 21.0″ × 21.0″ |
| Shipping Weight | 70 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Solace 5 Ton 14.3 SEER2 100: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 5 Ton or the Solace catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Solace 5 Ton 14.3 SEER2 100 FAQ
Does the Solace 5 Ton 14.3 SEER2 100 ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | Dual Fuel System |
| Brand | Solace |
| Tonnage | 5 Ton |
| SEER2 | 14.3 |
| AFUE | 80% |
| Heating BTU | 100,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Horizontal |
| Blower Motor | Multi-Speed ECM |
| Voltage | 115V |
| Stages | Single Stage |
| Cabinet Width | 21" |
| Furnace Stages | Single Stage |
