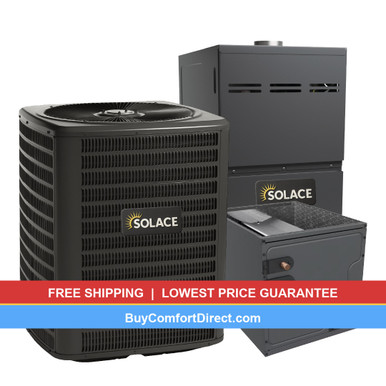

Solace 5 Ton 15.2 SEER2 100,000 BTU 80% AFUE Dual Fuel System – Upflow – S-GLZS5BA6010
$7,942.00
-
Product Details
- Model Numbers
- S-GLZS5BA6010
S-GR9S801005CNA
S-CAPTA6030C3 - Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
SOLACE 5 Ton 15.2 SEER2 R-32 80% AFUE Dual Fuel System (Upflow Coil)
Experience ultimate year-round comfort with this complete Solace 5 ton dual fuel HVAC system (Upflow Coil). This advanced matched system combines a high-efficiency 15.2 SEER2 heat pump, a 80% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow evaporator coil with factory-installed TXV. The dual fuel configuration automatically switches between electric heat pump and gas furnace operation to optimize efficiency and comfort. Designed for exceptional year-round heating and cooling performance, this system delivers outstanding energy efficiency, quiet operation, and proven reliability with R-32 refrigerant.
Technical Specifications
Heat Pump — S-GLZS5BA6010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLZS5BA6010 |
| Product Type | Heat Pump Condenser |
| Tonnage | 5 Ton |
| Cooling Capacity | 60,000 BTU/h |
| Heating Capacity (47°F) | 60,000 BTU/h |
| SEER2 Rating | 15.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 185 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 34.8 A |
| Max Overcurrent Protection | 60 A |
| Sound Level | 74.8 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | 1⅛” |
| Dimensions (W×D×H) | 35.5″ × 35.5″ × 41.625″ |
| Shipping Weight | 329 lbs |
Gas Furnace — S-GR9S801005CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GR9S801005CNA |
| Product Type | Gas Furnace |
| BTU Input | 100,500 BTU/h |
| BTU Output | 80,400 BTU/h |
| AFUE | 80% |
| Heating Stages | Single Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120/1/60V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0″ × 29.0″ × 33.0″ |
| Shipping Weight | 180 lbs |
Evaporator Coil — S-CAPTA6030C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CAPTA6030C3 |
| Product Type | Cased Upflow Evaporator Coil |
| Tonnage | 5 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ¾” |
| Dimensions (W×D×H) | 19.5″ × 22.5″ × 39.0″ |
| Shipping Weight | 55 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | Dual Fuel System |
| Brand | Solace |
| Tonnage | 5 Ton |
| SEER2 | 15.2 |
| AFUE | 80% |
| Heating BTU | 100,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Upflow |
| Blower Motor | Multi-Speed ECM |
| Voltage | 115V |
Related products
-

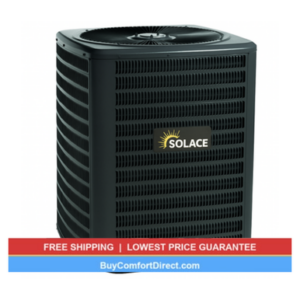

Solace 3 Ton 14.3 SEER2 Heat Pump – S-GLZS4BA3610
