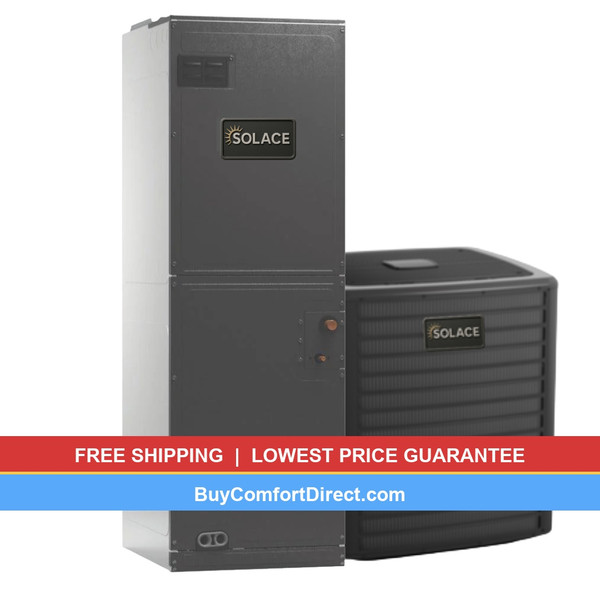

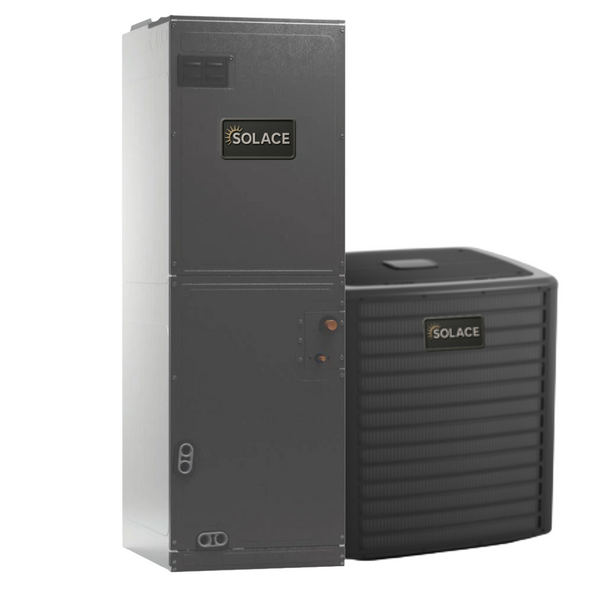

SOLACE 5 Ton 17.2 SEER2 R-32 Heat Pump System with Multi-Positional Air Handler
brand: Solace
- SKU:
- S-GLZT7CA6010,S-AMVT60DP1300
- Shipping:
- Calculated at Checkout
SOLACE 5 Ton 17.2 SEER2 R-32 Heat Pump System with Multi-Positional Air Handler
This complete Solace heat pump system pairs the S-GLZT7CA6010 outdoor unit with the S-AMVT60DP1300 air handler for efficient year-round heating and cooling. Rated at 17.2 SEER2, this 5 ton system uses eco-friendly R-32 refrigerant and delivers reliable comfort for residential applications. The outdoor unit provides both cooling and heating capabilities, making it ideal for moderate climates.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLZT7CA6010 |
| Product Type | Heat Pump |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 60000 BTU/h |
| Heating Capacity (BTU/h) | 60000 BTU/h |
| SEER2 Rating | 17.2 |
| Low Ambient Cooling | 0°F |
| Defrost Type | Demand |
| Refrigerant Type | R-32 |
| Compressor Type | Two-Stage Scroll |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 36.4 A |
| Max Overcurrent Protection | 60.0 A |
| Factory Charge (oz) | 198.0 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 1-1/8" |
| Sound Level (dBA) | 75 dBA |
| Dimensions (H×W×D) | 27.4" x 36.6" x 13.8" |
| Shipping Weight | 321.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-AMVT60DP1300 |
| Product Type | Multi-Position Air Handler |
| Tonnage | 5 Ton |
| Airflow (CFM) | 2000 CFM |
| Blower Motor Type | Multi-Speed ECM |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Drain Connection | 3/4" |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Voltage/Phase/Frequency | 208/240V/1-Ph/60Hz |
| Min Circuit Ampacity | 8.6 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 42.0" x 21.0" x 21.0" |
| Shipping Weight | 172.0 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
