25/3 MF / 440 VA

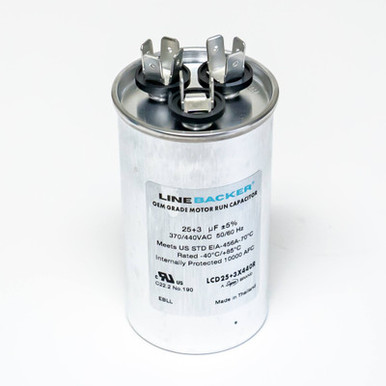

The LCD25+3X440R is an oval dual run capacitor rated at 25+3 microfarads and 370/440 volts, designed for use with HVAC motors and compressors. This Supco Linebacker series capacitor is manufactured with thick polypropylene foil and operates from -40 to 85 degrees Celsius.

Key Features

Dual capacitance of 25 uF and 3 uF in a single oval housing
Rated for both 370VAC and 440VAC applications
Operating temperature range of -40°F to 185°F (-40°C to 85°C)
UL and VDE agency certified with ±5% tolerance
Oval shape measuring approximately 2 inches diameter by 3.5 inches height

Technical Specifications

Specification	Value
Capacitance	25 + 3 MFD
Voltage	370/440 VAC
Type	Dual Run
Shape	Oval
Application	HVAC motors and compressors

Ideal For

Air conditioning compressor and fan motor applications
Residential split system service and replacement
Heat pump motor run applications
Refrigeration compressor systems
