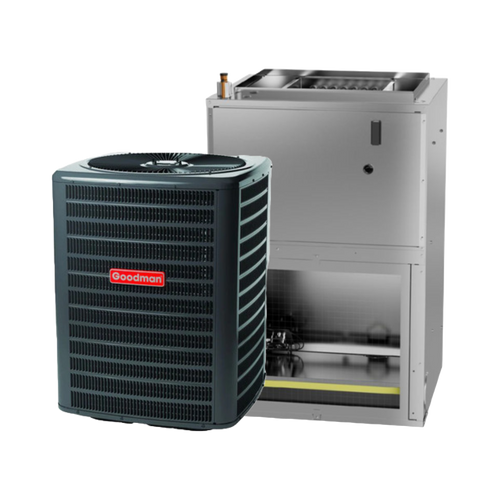

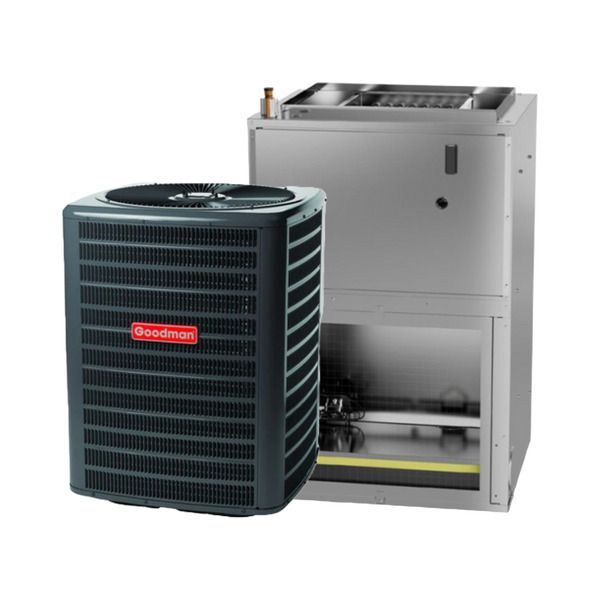

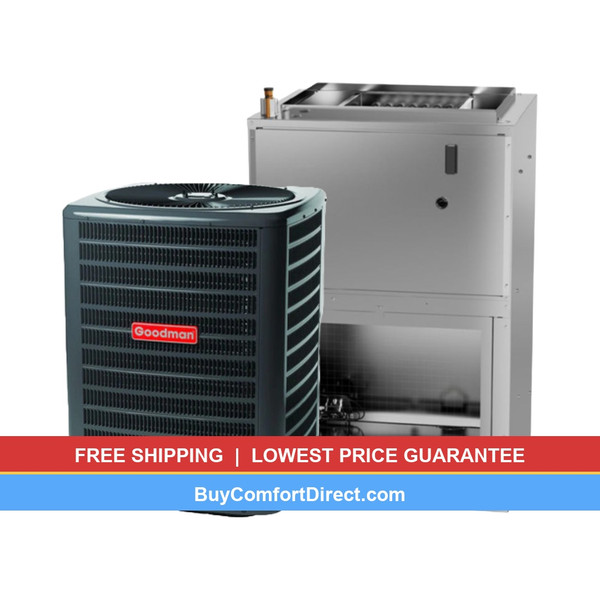

GOODMAN 1.5 Ton 14.3 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler
brand: Goodman
- SKU:
- GLZS4BA1810, AWST18SU1305
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 1.5 Ton 14.3 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler
Experience superior year-round comfort with this complete Goodman 1.5-ton heat pump system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 14.3 SEER2 / 7.5 HSPF2 heat pump outdoor unit with a wall-mounted air handler that includes a 5kW backup electric heat kit for reliable supplemental heating. Perfect for homes where floor space is limited, this system delivers efficient heating and cooling with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

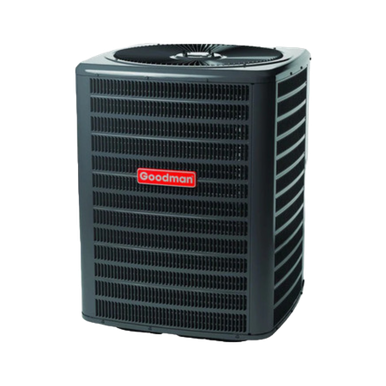

Heat Pump – GLZS4BA1810A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLZS4BA1810A |
| Tonnage | 1.5 Ton |
| Cooling Capacity (Nominal) | 18,000 BTU/h |
| Heating Capacity (Nominal) | 18,000 BTU/h |
| SEER2 Rating | 14.3 |
| HSPF2 Rating | 7.5 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 8.2 A |
| Compressor LRA | 41.2 A |
| Fan Motor Type | PSC (1/6 HP) |
| Fan Motor FLA | 0.95 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 11.2 A |
| Max Overcurrent Protection | 15 A |
| Sound Level | 74.0 dBA |
| Dimensions (H×W×D) | 32½" × 29" × 29" |
| Weight | 150 lbs |
| Refrigerant Charge | 70 oz (Factory charged for 15' line) |
| Liquid Line Size | ⅜" |
| Suction Line Size | ¾" |

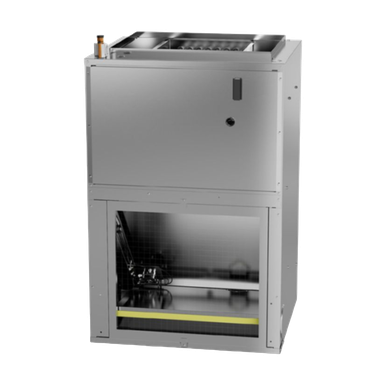

Wall-Hung Air Handler – AWST18SU1305A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | AWST18SU1305A |
| Tonnage | 1.5 Ton |
| Type | Wall-Hung Indoor Air Handler |
| Refrigerant | R-32 Compatible |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208–230V / 1Ph / 60Hz |
| Integrated Electric Heat Kit | 5 kW (17,060 BTU/h) |
| Heat Kit Voltage | 208–230V / 1Ph / 60Hz |
| Heat Kit Amperage | 21.7 A @ 230V |
| Heat Kit Stages | 2-Stage (2.5kW + 2.5kW) |
| Metering Device | TXV (Thermal Expansion Valve) |
| Liquid Connection | ⅜" |
| Suction Connection | ¾" |
| Dimensions (H×W×D) | 28" × 23" × 9½" |
| Weight | 65 lbs |
| Filter Type | Washable/Reusable |
| Mounting | Wall-Mount Bracket Included |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones
