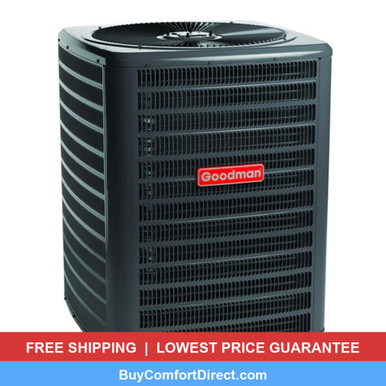

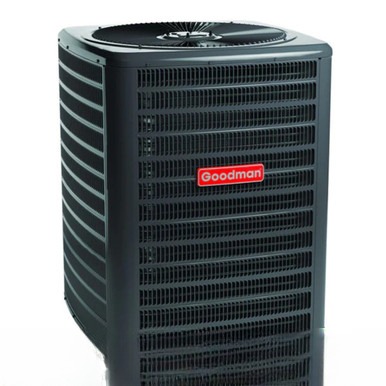

Goodman 5 Ton Heat Pump – GLZS4BA6010

Original price was: $4,413.00.Current price is: $3,350.00.

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.
Your price is LOWER in the cart
See my price in the cart →

-

Complete Your System Optional add-ons — each ships with your order as its own item
Line SetInsulated copper line set sized for this system (7/8" suction / 3/8" liquid)
Line Set CoverHides and protects the line set on an exterior wall
Thermostat
Condenser PadLevel, UV-stable plastic pad for the outdoor unit
Surge ProtectorProtects the compressor and control board from power surges
Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip
Your system total: $3,350.00
Rather talk to a person?
We will confirm the match for your home, quote it, and take your order by phone.
Call to Order: (877) 843-4822

Product Details

Model Number
GLZS4BA6010
Brand
Goodman
Condition
New
Warranty
Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Description

The GLZS4BA6010 is a heat pump from Goodman stocked by Buy Comfort Direct — full listing: Goodman 5 Ton Heat Pump – GLZS4BA6010. This page covers what it is, where it fits in a system, what to check before you order, and how it ships.

About the GLZS4BA6010

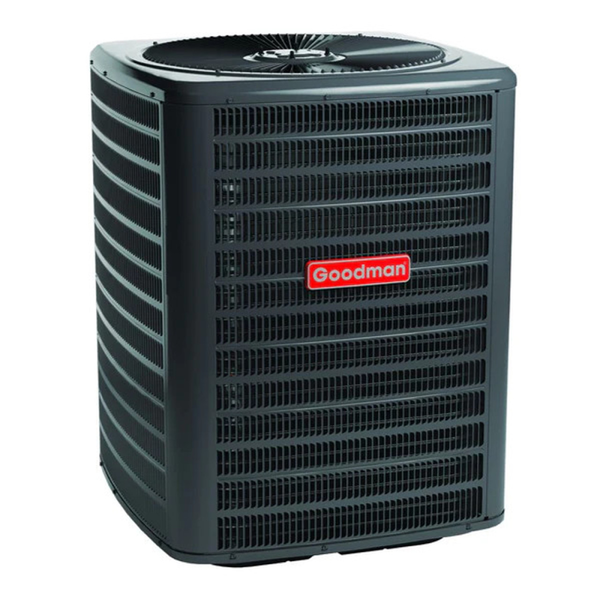

Goodman GLZS4BA6010 5 Ton R-32 Heat Pump

The Goodman GLZS4BA6010 is a 5-ton R-32 heat pump outdoor unit delivering 15.2 SEER2 cooling efficiency and 7.8 HSPF2 heating performance. Featuring a Single-Stage Scroll compressor and environmentally-friendly R-32 refrigerant, this unit provides reliable year-round comfort with advanced efficiency for both heating and cooling applications.

Technical Specifications

Specification Value
Manufacturer Goodman
Model Number GLZS4BA6010
Product Type Heat Pump Outdoor Unit
Tonnage (Cooling) 5 Ton
Tonnage (Heating) 5 Ton
Cooling Capacity (Nominal) 60,000 BTU/h
Heating Capacity (Nominal) 60,000 BTU/h
SEER2 Rating 15.2
HSPF2 Rating 7.8
Refrigerant Type R-32
Compressor Type Single-Stage Scroll
Compressor RLA 24.7 A
Compressor LRA 123.0 A
Fan Motor Type PSC
Fan Motor HP 1/3
Fan Motor FLA 1.8 A
Voltage/Phase 208/230-1
Min Circuit Ampacity 33.4 A
Max Overcurrent Protection 40 A
Sound Level 75.0 dBA
Dimensions (W×D×H) 35½” × 35½” × 39½”
Weight 309 lbs
Refrigerant Charge N/A oz
Liquid Line Size ⅜”
Suction Line Size 1⅛”

Comprehensive Warranty Protection

10
Year Parts Warranty
10
Year Compressor Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant

This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones

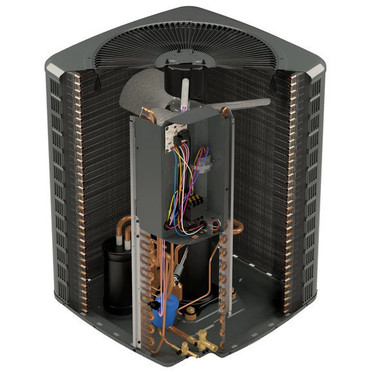

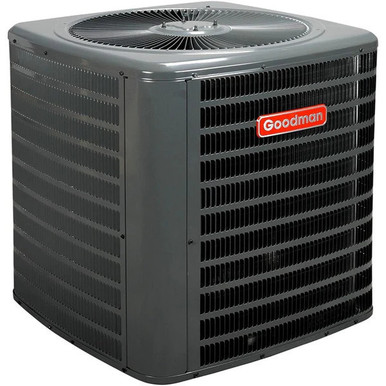

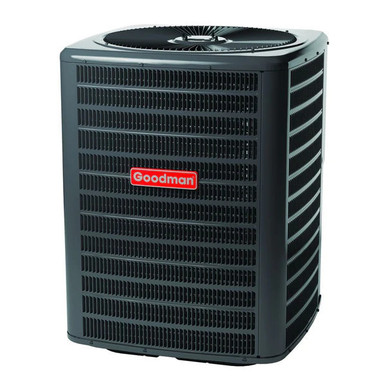

GLZS4BA6010 – view 2GLZS4BA6010 – view 3GLZS4BA6010 – view 4

Where the GLZS4BA6010 fits

A heat pump is an air conditioner that can run in reverse: in winter it pulls heat from outdoor air and moves it inside, which is far cheaper than resistance heat in most of the country. The GLZS4BA6010 pairs with a matched indoor coil or air handler, and in cold climates it is often installed dual-fuel with a gas furnace that takes over below the balance point.

Inverter (variable-capacity) heat pumps modulate output to match the load, which keeps the house closer to setpoint, runs quieter and pulls the best efficiency numbers; single-stage units cost less up front and are simpler to service. Both need a matched indoor coil to hit their ratings.

Background reading: the U.S. Department of Energy heat pump guide.

What to check before you order

  • Tonnage from a load calculation; SEER2 and HSPF2 for your climate.
  • Matched indoor coil or air handler with the same refrigerant (AHRI-listed pairing).
  • Thermostat with an O/B reversing-valve terminal, or a dual-fuel thermostat if pairing with a furnace.
  • Electrical service, pad, disconnect and line set (sold separately).

Installation and service notes

Outdoor heat pumps sit on a pad raised above snow and grass level with clearance for defrost water to drain, a disconnect within sight, and a line set sized and run within the manufacturer’s length and lift limits. Commission it in both heating and cooling modes and confirm the reversing valve and defrost cycle operate before you leave.

Why buy the GLZS4BA6010 from Buy Comfort Direct

We are a stocking HVAC distributor based in Winder, Georgia — not a marketplace reseller. Orders over $99 ship free, and financing is available at checkout through Affirm. If you are not sure this is the right part, call (877) 843-4822 before you order and we will match it to your equipment. Browse the rest of our 5 Ton Heat Pumps & Heat Pump Systems or the Goodman catalog, and see what customers say on our reviews page.

Ordering and delivery

In-stock items ship from our Winder, Georgia warehouse. Orders over $99 ship free; large equipment travels by freight carrier and parts by ground, and you will get tracking by email when it leaves. Need it matched to a system, or need a quantity that is not on the shelf? Use the contact page or call (877) 843-4822 and we will confirm availability before you pay.

GLZS4BA6010 FAQ

Will a heat pump keep up in winter here?

In Georgia and most of the Southeast, yes, with backup heat for the coldest nights. Further north, dual-fuel with a furnace is the usual answer.

Does the GLZS4BA6010 ship free?

Yes on orders over $99 — most orders that include it qualify. Large equipment ships by freight carrier; parts ship by ground.

How do I know it matches my equipment?

Send us your equipment model number through our contact page or call (877) 843-4822. We check the pairing before it ships.

Additional information

Weight 300.00 lbs
Dimensions 29.00 × 29.00 × 36.00 in
System Type

Heat Pump Condenser

Brand

Goodman

Tonnage

5 Ton

SEER2

15.2

HSPF2

7.8

Refrigerant

R-32

Stages

Single Stage
