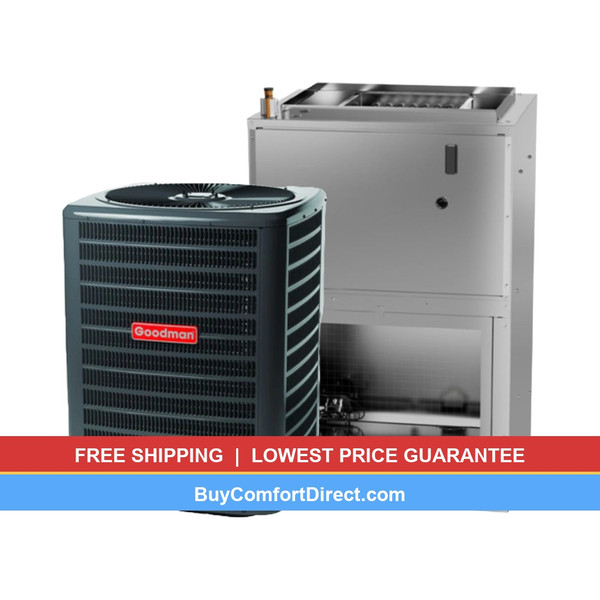

Goodman 2.5 Ton 14.3 SEER2 AC System with Air Handler – Wall-Mount – GLXS4BA3010
$3,374.00
-
Product Details
- Model Numbers
- GLXS4BA3010
AWST30SU1308 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 2.5 Ton 14.3 SEER2 AC System with Air Handler — Goodman 2.5 Ton 14.3 SEER2 AC System with Air Handler – Wall-Mount – GLXS4BA3010 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 2.5 Ton 14.3 SEER2 AC System with Air Handler
GOODMAN 2.5 Ton 14.3 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler AND 8kw Heat Kit
Experience superior comfort cooling with this complete Goodman 2.5-ton air conditioning system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 14.3 SEER2 air conditioner with a wall-mounted air handler that includes an 8kW electric heat kit for reliable winter heating. Perfect for homes where floor space is limited, this system delivers efficient cooling and heating with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

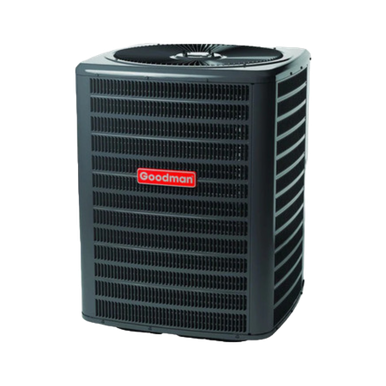

Air Conditioner – GLXS4BA3010A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLXS4BA3010A |
| Tonnage | 2.5 Ton |
| Cooling Capacity (Nominal) | 30,000 BTU/h |
| SEER2 Rating | 14.3 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 13.5 A |
| Compressor LRA | 67.5 A |
| Fan Motor Type | PSC (1/5 HP) |
| Fan Motor FLA | 1.40 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 18.7 A |
| Max Overcurrent Protection | 25 A |
| Sound Level | 75.0 dBA |
| Dimensions (H×W×D) | 35¼” × 35½” × 35½” |
| Weight | 195 lbs |
| Refrigerant Charge | 105 oz (Factory charged for 15′ line) |
| Liquid Line Size | ⅜” |
| Suction Line Size | ⅞” |

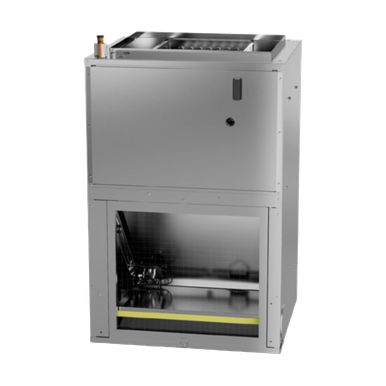

Wall-Hung Air Handler – AWST30LU1308A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | AWST30LU1308A |
| Tonnage | 2.5 Ton |
| Type | Wall-Hung Indoor Air Handler |
| Refrigerant | R-32 Compatible |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208–230V / 1Ph / 60Hz |
| Integrated Electric Heat Kit | 8 kW (27,297 BTU/h) |
| Heat Kit Voltage | 208–230V / 1Ph / 60Hz |
| Heat Kit Amperage | 34.8 A @ 230V |
| Heat Kit Stages | 3-Stage (3kW + 3kW + 2kW) |
| Metering Device | TXV (Thermal Expansion Valve) |
| Liquid Connection | ⅜” |
| Suction Connection | ⅞” |
| Dimensions (H×W×D) | 31″ × 29″ × 11″ |
| Weight | 80 lbs |
| Filter Type | Washable/Reusable |
| Mounting | Wall-Mount Bracket Included |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 air conditioner meets Department of Energy minimum efficiency requirements for all U.S. climate zones
Goodman 2.5 Ton 14.3 SEER2 AC System with Air Handler: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 2.5 Ton Air Conditioners & AC Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 2.5 Ton 14.3 SEER2 AC System with Air Handler FAQ
Does the Goodman 2.5 Ton 14.3 SEER2 AC System with Air Handler ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 300.00 lbs |
|---|---|
| Dimensions | 29.00 × 29.00 × 36.00 in |
| System Type | AC + Air Handler System |
| Brand | Goodman |
| Tonnage | 2.5 Ton |
| SEER2 | 14.3 |
| Refrigerant | R-32 |
| Stages | Single Stage |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
