Goodman 2.5 Ton 15.2 SEER2 Heat Pump System with Air Handler – Wall-Mount – GLZS5BA3010

Goodman 2.5 Ton 15.2 SEER2 Heat Pump System with Air Handler – Wall-Mount – GLZS5BA3010

Name: GOODMAN 2.5 Ton 15.2 SEER2 R-32 Heat - GLZS5BA3010 | Buy Comfort Direct
SKU: GLZS5BA3010, AWST30LU1310
Price: 4664.00 USD
Availability: InStock

$4,664.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (3/4" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Electric Heat KitBackup / supplemental electric heat strip for the air handler

Your system total: $4,664.00

Product Details

Model Numbers: GLZS5BA3010
AWST30LU1310
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:2.5 Ton Heat Pumps & Heat Pump Systems 2.5-Ton Heat Pump + Air Handler Systems Split Heat Pump Systems

Description

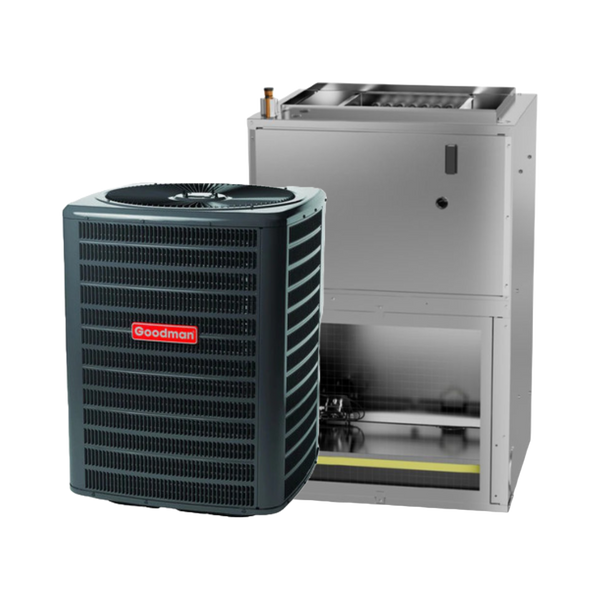

GOODMAN 2.5 Ton 15.2 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler AND 10kw Heat Kit

Experience year-round comfort with this complete Goodman 2.5-ton heat pump system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 15.2 SEER2 heat pump with a wall-mounted air handler that includes a 10kW electric heat kit for supplemental winter heating. Perfect for homes where floor space is limited, this system delivers efficient heating and cooling with R-32 refrigerant while maximizing your usable living space.

Technical Specifications

Heat Pump — GLZS5BA3010 Specifications

Specification	Value
Manufacturer	Goodman
Tonnage	2.5 Ton
Refrigerant	R-32
SKU/Model No	GLZS5BA3010
Product Type	Split System Heat Pump
Cooling Capacity	30,000 BTU/h
Heating Capacity (47°F)	30,000 BTU/h
SEER2 Rating	Up to 15.2
EER2 Rating	None
HSPF2 Rating	None
Compressor Type	Scroll
Voltage	208/230V / 1Ph / 60Hz
Min Circuit Ampacity	17.0 A
Max Overcurrent Protection	25 A
Liquid Line Size	⅜”
Suction Line Size	¾”
Refrigerant Charge	94 oz
Dimensions (H×W×D)	39.5″ × 35″ × 35″
Weight	235 lbs
Sound Level	73.0 dBA

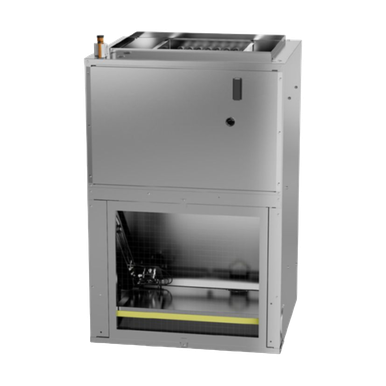

Wall-Hung Air Handler — AWST30LU1310A Specifications

Specification	Value
Manufacturer	Goodman
Tonnage	2.5 Ton
Refrigerant	R-32 Compatible
SKU/Model No	AWST30LU1310A
Product Type	Wall-Mounted Air Handler
Motor Type	ECM
Motor HP	N/A HP
Integrated Electric Heat	10 kW
Nominal Cooling Capacity	30,000 BTU/h
Airflow	None CFM
Voltage	208/230V / 1Ph / 60Hz
Min Circuit Ampacity	15.0 A
Max Overcurrent Device	20.0 A
Liquid Line Connection	⅜”
Suction Line Connection	¾”
Metering Device	TXV (Internal)
Dimensions (H×W×D)	30.0″ × 38.0″ × 11.0″
Weight	45 lbs

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This complete R-32 15.2 SEER2 heat pump system meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Additional information

Weight	245.00 lbs
Dimensions	29.00 × 29.00 × 36.00 in
System Type	Heat Pump + Air Handler System
Brand	Goodman
Tonnage	2.5 Ton
SEER2	15.2
Refrigerant	R-32
Voltage	208/230V
