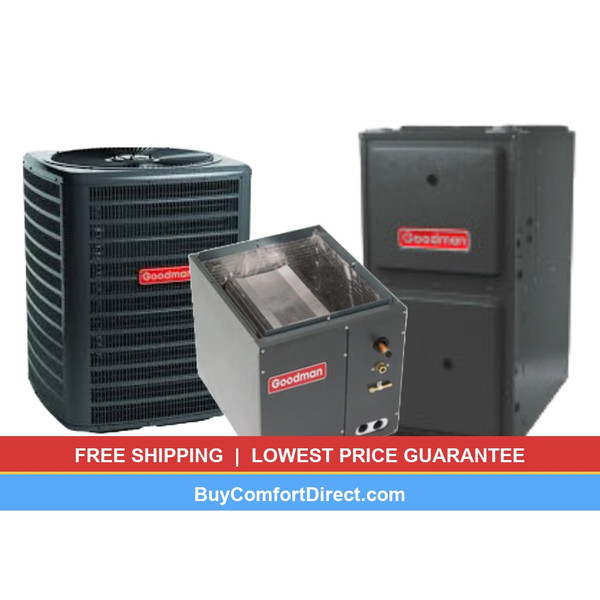

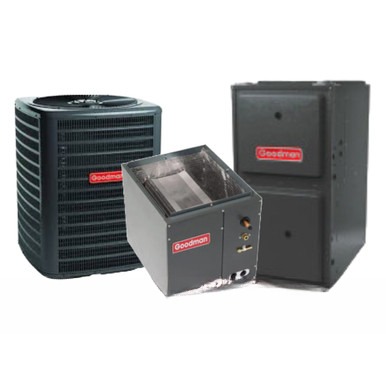

Goodman 2.5 Ton Upflow Dual Fuel 92% Gas System 14.3 SEER2 17" Wide R-32
brand: Goodman
- SKU:
- GLZS4BA3010, GR9S920603BNA, CAPTA3626B3
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 2.5 Ton 14.3 SEER2 R-32 92% AFUE Gas Furnace Heat Pump System (Upflow Coil)
Experience superior year-round comfort with this complete Goodman 2.5-ton dual fuel system (Upflow Coil). This matched system combines a high-efficiency 14.3 SEER2 heat pump for efficient heating and cooling, a 92% AFUE single-stage gas furnace with multi-speed ECM blower for backup heating, and a precision-engineered upflow evaporator coil with factory-installed TXV. As a dual fuel system, it intelligently switches between the heat pump and gas furnace to optimize energy efficiency and comfort in all weather conditions, delivering reliable performance with environmentally-friendly R-32 refrigerant.
Complete System Components (Upflow Coil)
Heat Pump
Goodman GLZS4BA3010
2.5 Ton (30,000 BTU/h)
Single-Stage Rotary Compressor
R-32 Refrigerant
14.3 SEER2 / 7.5 HSPF2
Gas Furnace
Goodman GR9S920603BNA
60,000 BTU/h Input
55,200 BTU/h Output
92% AFUE
Single-Stage Multi-Speed ECM
Evaporator Coil
Goodman CAPTA3626B3
2.5-3 Ton Cased Upflow Coil
All-Aluminum Construction
Factory-Installed TXV
R-32 Compatible
Technical Specifications
Heat Pump – GLZS4BA3010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLZS4BA3010 |
| Tonnage | 2.5 Ton |
| Cooling Capacity (Nominal) | 30,000 BTU/h |
| Heating Capacity (Nominal) | 30,000 BTU/h |
| SEER2 Rating | 14.3 |
| HSPF2 Rating | 7.5 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 11.2 A |
| Compressor LRA | 52.5 A |
| Sound Level | 77 dBA |
| Dimensions (H×W×D) | 39½" × 29" × 29" |
| Weight | 175 lbs |
| Refrigerant Charge | 81 oz (Factory charged for 15' line) |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 25 A |
Gas Furnace – GR9S920603BNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GR9S920603BNA |
| BTU Input | 60,000 BTU/h |
| BTU Output | 55,200 BTU/h |
| AFUE | 92% |
| Stages | Single-Stage |
| Blower Motor | Multi-Speed ECM (9-Speed) |
| Voltage | 115 VAC, 60 Hz, Single-Phase |
| Cabinet Width | 17½" |
| Filter Size | (1) 16" × 25" (side or bottom) |
| Dimensions (W×D×H) | 17½" × 23" × 34½" |
| Weight | 114 lbs |
Evaporator Coil – CAPTA3626B3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | CAPTA3626B3 |
| Tonnage | 2.5–3 Ton |
| Type | Cased Upflow Indoor Coil |
| Expansion Device | Factory-Installed TXV (Thermal Expansion Valve) |
| Refrigerant | R-32 Compatible |
| Construction | All-Aluminum A-Coil |
| Cabinet Style | Cased with Drain Pan |
| Dimensions (W×D×H) | 17½" × 21" × 26" |
| Weight | 48 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones
