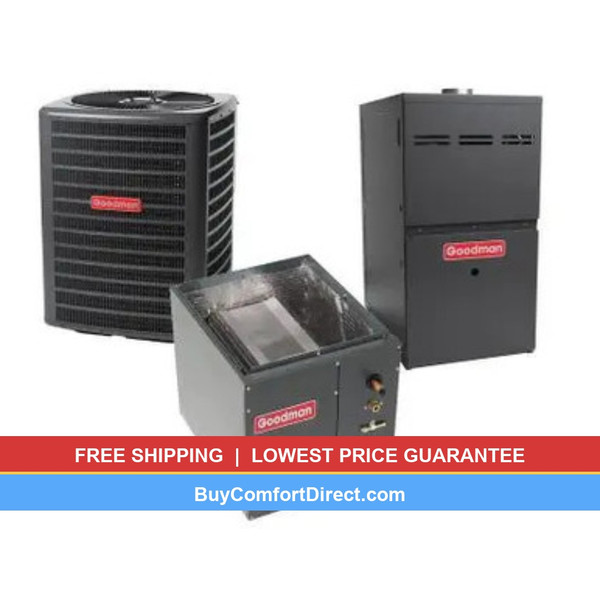

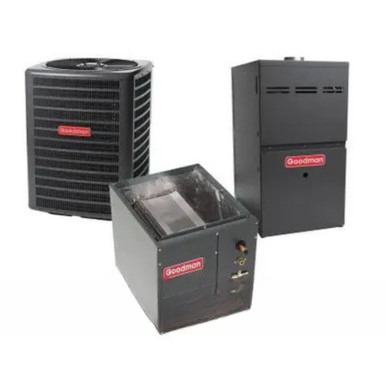

Goodman 2 Ton Dual Fuel Upflow 80% Gas System 15.2 SEER2 14" Wide R-32

Heat Pump:

Standard Features • High-efficiency scroll compressor • SmartShift® technology to ensure quiet reliable defrost • Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5 ton • Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton • Single-speed PSC condenser fan motor • Factory-installed suction-line accumulator • Factory-installed compressor crankcase heater • Factory-installed high-capacity muffler • High- and low-pressure switches • Service valves with sweat connections and easy access to gauge ports • Fully charged for 15’ of tubing length • Ground lug connection • Fully enclosed contactor • Capacitor with extended life • AHRI Certified; ETL Listed

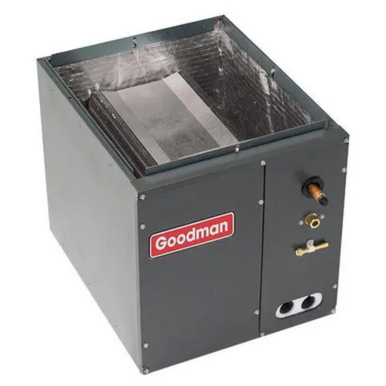

Evaporator Coil:

Standard Features • All-Aluminum evaporator coil • Optimized for use with R-32 refrigerant including circuits and manifolds • R-32 sensor designed for the life span of the coil • CAPTA, CHPTA CAUTA models feature factoryinstalled thermal expansion valves for cooling and heat pump applications

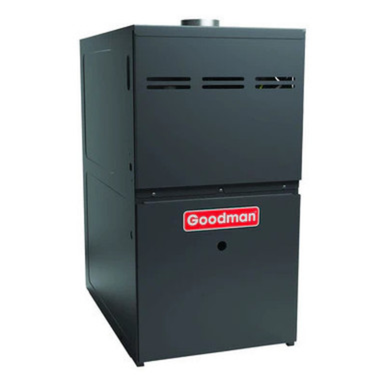

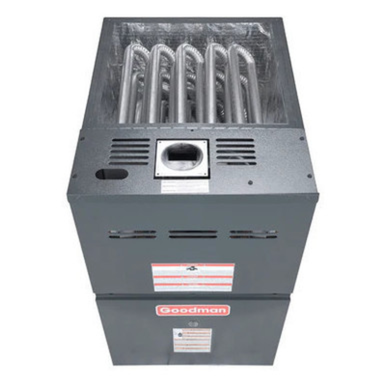

Furnace:

• Heavy-duty aluminized-steel dualdiameter tubular heat exchanger • Single-stage gas valve • Durable Hot-surface igniter • Quiet, single-speed draft induced • Self-diagnostic control board • Color-coded low-voltage terminals • Multi-speed ECM blower motor • California Low NOx emissions models available • Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD). • AHRI Certified; ETL Listed

GR9S80 Spec Sheet

GLZS5BA Spec Sheet

CAPTA Spec Sheet
