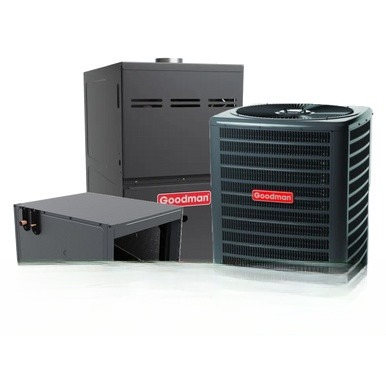

GOODMAN 3.5 Ton 14.3 SEER2 R-32 80% AFUE Dual Fuel Heat Pump System (Horizontal Coil)
brand: Goodman
- SKU:
- GLZS4BA4210, GR9S800804CNA, CHPTA4230C3
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 3.5 Ton 14.3 SEER2 R-32 80% AFUE Dual Fuel Heat Pump System (Horizontal Coil)
Experience ultimate year-round comfort with this complete Goodman 3.5-ton dual fuel heat pump system (Horizontal Coil). This intelligently matched system combines a high-efficiency 14.3 SEER2 / 7.5 HSPF2 heat pump for efficient heating and cooling, an 80% AFUE single-stage gas furnace with variable-speed ECM blower for supplemental heating during extreme cold, and a precision-engineered horizontal evaporator coil with factory-installed TXV. The system automatically switches between electric heat pump operation and gas furnace backup for optimal efficiency and comfort. Designed for dependable performance with environmentally-friendly R-32 refrigerant.
Technical Specifications
Heat Pump – GLZS4BA4210 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLZS4BA4210 |
| Tonnage | 3.5 Ton |
| Cooling Capacity (Nominal) | 42,000 BTU/h |
| SEER2 Rating | 14.3 |
| HSPF2 Rating | 7.5 |
| Heating Capacity (Nominal) | 42,000 BTU/h |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Scroll |
| Compressor RLA | 17.9 A |
| Compressor LRA | 90.0 A |
| Fan Motor Type | PSC (1/3 HP) |
| Fan Motor FLA | 1.8 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 24.4 A |
| Max Overcurrent Protection | 30 A |
| Sound Level | 72.0 dBA |
| Dimensions (H×W×D) | 35¾" × 35½" × 35½" |
| Weight | 277 lbs |
| Refrigerant Charge | 144 oz (Factory charged for 15' line) |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1⅛" |

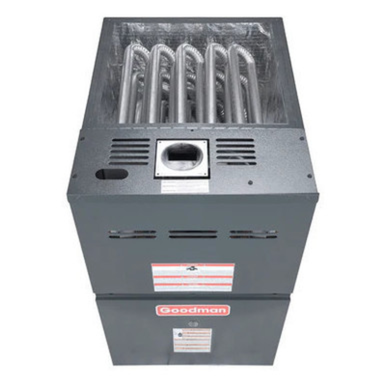

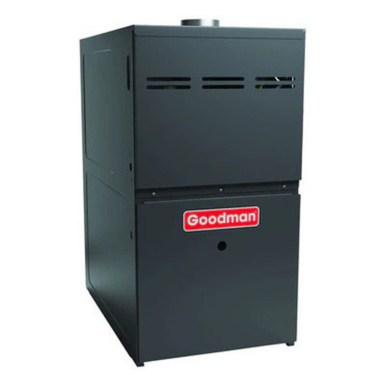

Gas Furnace – GR9S800804CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GR9S800804CNA |
| BTU Input | 80,000 BTU/h |
| BTU Output | 64,000 BTU/h |
| AFUE | 80% |
| Stages | Single-Stage |
| Blower Motor | Variable-Speed ECM |
| Blower HP | ¾ HP |
| Blower Size | 10" × 10" |
| Number of Burners | 4 |
| Voltage | 115 VAC, 60 Hz, Single-Phase |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Device | 20 A |
| Temperature Rise Range | 45–75°F |
| Vent Diameter | 3" |
| Cabinet Width | 21" |
| Dimensions (W×D×H) | 21" × 28" × 33⅜" |
| Weight | 132 lbs |

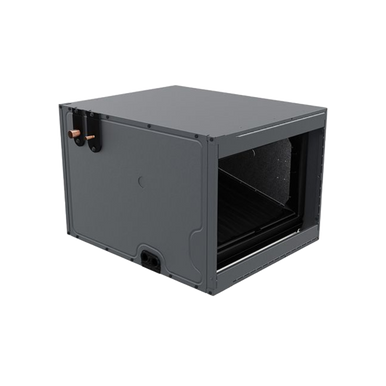

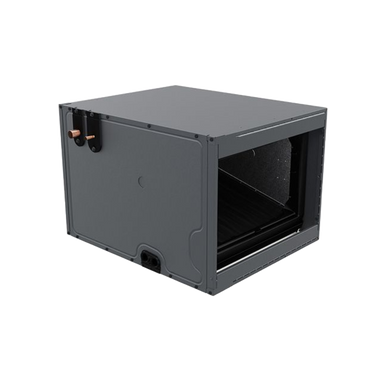

Evaporator Coil – CHPTA4230C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | CHPTA4230C3 |
| Tonnage | 2½ - 3½ |
| Type | Cased Horizontal |
| Expansion Device | Factory-Installed TXV (Thermal Expansion Valve) |
| Refrigerant | R-32 Compatible |
| Construction | All-Aluminum A-Coil |
| Dimensions (W×D×H) | 30" × 21" × 21" |
| Weight | 70 lbs |
| Liquid Connection | ⅜" |
| Suction Connection | ⅞" |
| Cabinet Style | Cased with Drain Pan |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones
